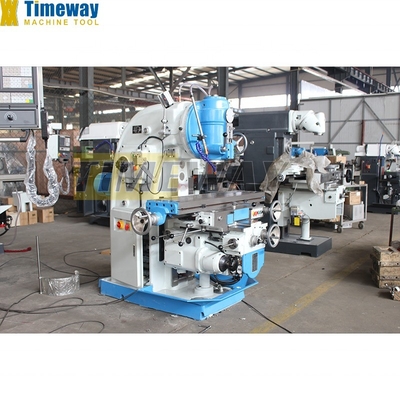

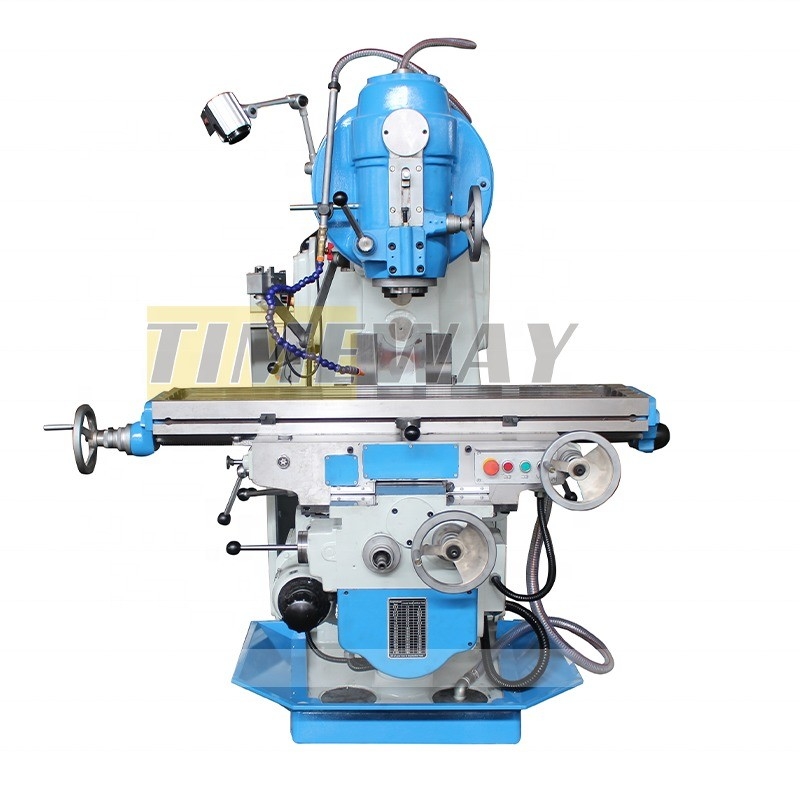

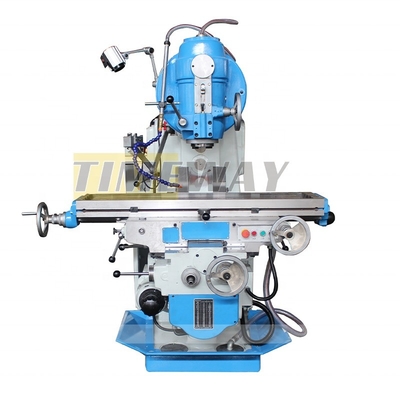

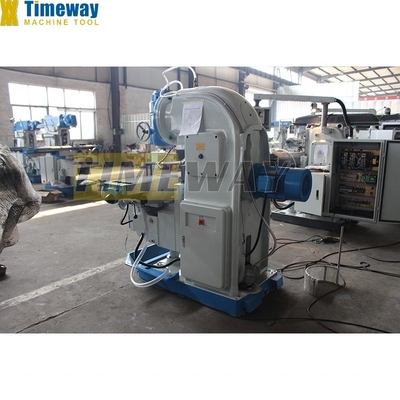

900/880mm Table Travel Precision VM400W Vertical Knee-Type Milling Machine for Results
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | VM400W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 900/880 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 315/300 | Table Travel (Z) (mm): | 385/365 |
| Spindle Taper: | 7:24 ISO50 | Range Of Spindle Speed(r.p.m): | 30 - 1500 R.p.m |
| Type: | VERTICAL | Voltage: | Customer Requirement |
| Dimension(L*W*H): | 2656x2159x2198mm | Weight (KG): | 4250 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Knee | After-sales Service Provided: | Online Support |
| Machine Type: | Milling Machine Vertical Universal | Product Name: | Metal Milling Machine |
| Keyword: | Milling Machine Manual | Function: | Milling Cutting |
| Application: | Metal Machining | CNC Or Not: | Normal |
| Usage: | General | Color: | Custom-made |
| Number Of Axes: | 3 | Condition: | New |
| Showroom Location: | Argentina, Chile, Ukraine, Kyrgyzstan, Italy, Viet Nam, Philippines, Saudi Arabia, Pakistan, None | Core Components: | Motor |
| Year: | 2023 | Applicable Industries: | Manufacturing Plant, Fresadora Universal Para Metal ZX6350A Milling Mac |
| Port: | China Port | ||
Product Description
Products Description
SPECIFICATION | UNIT | VM400W |
Table size | mm | 400x1700 |
T-slot (No./width/pitch) | mm | 3/18/90 |
Distance from spindle nose to table | mm | 115-500 |
Longitudinal travel(manual/auto) | mm | 900/880 |
Cross travel(manual/auto) | mm | 315/300 |
Vertical travel(manual/auto) | mm | 385/365 |
Mill head swivel angle | ° | ±45° |
Spindle bore diameter | mm | 29 |
Spindle taper | 7:24 ISO50 | |
Spindle speed range | r/min | 30-1500 |
Spindle speed step | steps | 18 |
Table longitudinal feed speed (X) | mm/min | 23.5-1180 |
Table cross feed speed (Y) | mm/min | 15-786 |
Table vertical feed speed (Z) | mm/min | 8-394 |
Feed speed steps (X/Y/Z) | steps | 18 |
Rapid feed speed(X/Y/Z) | mm/min | 2300/1540/770 |

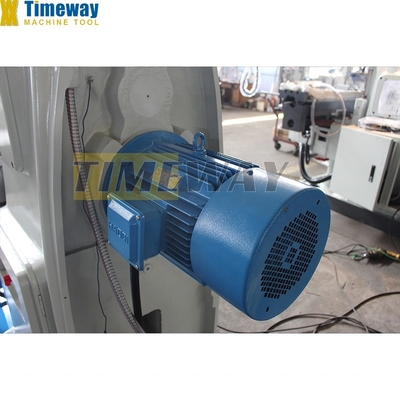

Main motor power | kw | 11 |
Feed motor power | kw | 3 |
Overall dimensions (Lx WxH) | mm | 2656x2159x2198 |
Machine weight | kg | 4250 |
Top slide travel | mm | 360 |
Tool section size | mm | 50x50 |
Tool post feed per gar | mm | 0.05 |
Tailstock quill diameter | mm | 260 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | Metric 80 |
Main motor power | kw | 30 |
Machine length | mm | 6120/7120/8120/9120/11120/13120/15120/- |
Machine width | mm | 2430 |
Machine height | mm | 2580 |
Draw bar Coolant system Chip tray Work lamp Lubrication system Tools and Tool box Operator manual | 2/3-axis digital readout 58pcs clamping kit Machine vise Spindle protection guard Table protection guard Dividing head Rotary table Reducing sleeve |
