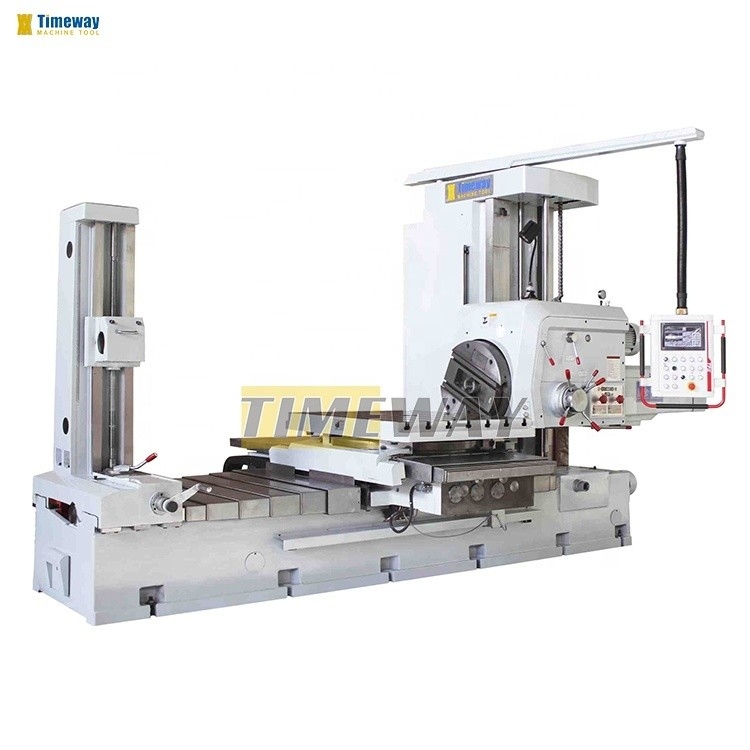

Table Travel of 900 mm for Functions Horizontal Boring and Milling Machine TPX Series
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $16,467.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 1100x960 | Table Travel (X) (mm): | 900 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 1400 Mm |
| Number Of Axes: | 3 | Max. Table Load(kg): | 5000 |
| Travel (W-axis) (mm): | 600 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Gearbox, Motor |
| Positioning Accuracy (X Axis) Mm: | 0.005 | Positioning Accuracy (Y Axis) Mm: | 0.005 |
| Positioning Accuracy (Z Axis) Mm: | 0.005 | No. Of Spindles: | Single |
| Range Of Spindle Speed(r.p.m): | 200 R.p.m | Spindle Motor Power(kW): | 7.5 |
| Type: | Horizontal | Condition: | New |
| Voltage: | 380V 50HZ 3PH Or Negotiable | Dimension(L*W*H): | 4910x2454x2750 |
| Weight (T): | 11.5 T | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Applicable Industries: | Machinery Repair Shops, Other |
| Showroom Location: | United Kingdom, United States, Italy, Philippines, Brazil, Peru, Indonesia, Mexico, Russia, Thailand, South Korea, Chile, UAE, Australia | Product Name: | Horizontal Boring Machine And Milling Machine Tool |
| Application: | Construction Machine Repairing | Functions: | Broing And Milling |
| After-sales Service: | Online | Precision: | High Precision |
| Motor Power (kw): | 7.5 Kw | Boring Diameter: | 110mm |
| Spindle Taper: | MT6 | Color: | Optional |
| Machine Weight: | 11500kg | ||
Product Description
Products Description
Specification | Unit | TPX-100B | TPX-130B |
Spindle dia. | mm | 110 | 130 |
Spindle taper | - | MT6 | Metric 80 |
Max. spindle torque | N.m | 1225 | 3136 |
Max. spindle thrust | N | 12250 | 31360 |
Spindle speed steps | - | 22 | 24 |
Spindle speed range | rpm | 8-1000 | 4-800 |
Main motor power | kw | 7.5 | 15 |
Max. facing head torque | N.m | 1960 | 4900 |
Facing head dia. | rpm | 600 | 750 |
Facing head speed range | rpm | 4-200 | 2.5-125 |
Facing head speed steps | steps | 18 | 18 |
Table size | mm | 110x960 | 1600x1400 |
Max. loading capacity | kg | 5000 | 8000 |
T-slot size | - | 7 | 28 |
X/Y/Z travel | mm | 900/900/1400 | 1600/1400/2000 |
Spindle travel | mm | 600 | 900 |
Facing slide travel | mm | 180 | 250 |
Distance between spindle center and table | mm | 0-900 | 0-900 |
X/Y/Z/W-axis rapid feed speed | mm | 0.005 | 0.005 |
Machine weight | kg | 11500 | 24000 |
Machine dimensions (LxWxH) | mm | 4910x2451x2750 | 6995×3647×3442 |

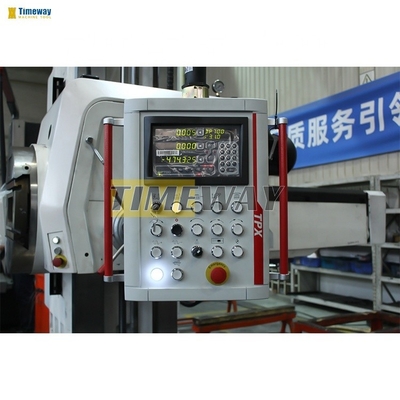

· MT6 spindle · Metric 80 spindle · Facing plate · Boring tool holder · Work lamp · Cooling system · Hydraulic pump · NEWALL x/y-axis DRO · MITSUBISHI PLC control · Level wedges & foundation bolts · Tool & tool box · Operator manual(English) | · ISO spindle · NEWALL Z-axis DRO · Rear column · Turning device & gears |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
