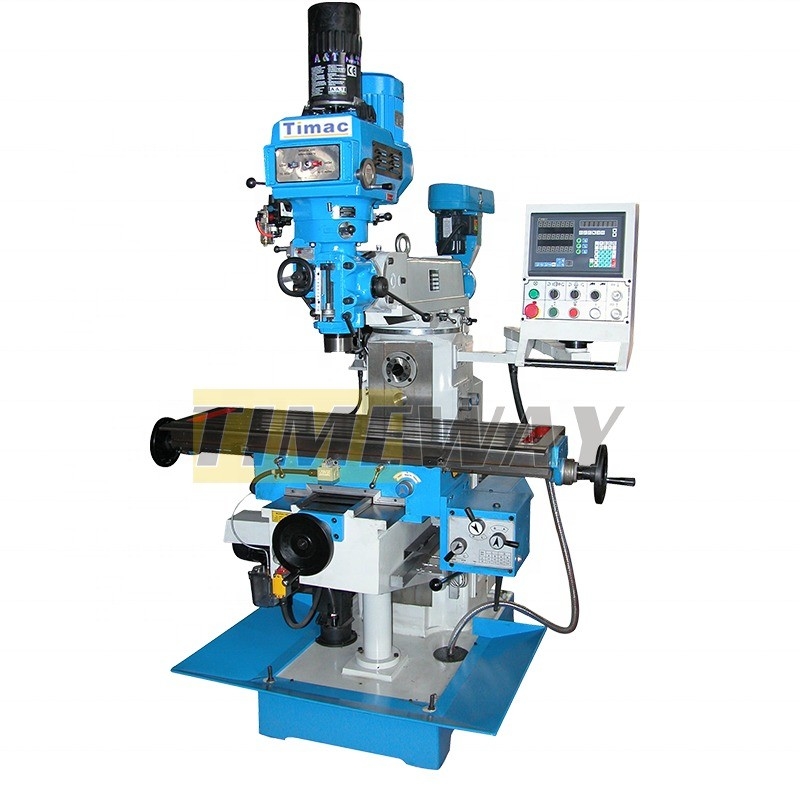

High Precision TM500 Turret Milling Machine H/V for Metalworking on Custom-made Table
Product Details:
| Place of Origin: | CHIINA |
| Brand Name: | TIMEWAY |
| Model Number: | TM500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 280 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 70 - 4540 R.p.m |
| Type: | Gantry Type | Spindle Motor Power(kW): | 3.75 |
| Voltage: | 380V 50HZ 3PH Or Negotiable | Dimension(L*W*H): | 1700x1500x2150 |
| Weight (KG): | 1450 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Drilling Milling Machine |
| Machine Type: | Veritcal | Keyword: | Milling Machine Manual |
| Product Name: | Metal Milling Machine | Function: | Milling Cutting |
| Application: | Metal Machining | Usage: | General |
| Color: | Custom-made | Precision: | High Precision Universal Milling Machine |
| Table Size: | 320x1250 | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Energy & Mining |
| Showroom Location: | Viet Nam, Russia | Core Components: | Bearing, Motor, Pump, Gear |
| Year: | 2023 | Port: | China Port |
Product Description
Products Description
Specifications | Unit | TM500 |
Table size | mm | 320x1250 |
Longitudinal travel (X) | mm | 600 |
Cross travel (Y) | mm | 300 |
Vertical travel (Z) | mm | 280 |
T-slot No. and size and distance | mm | 3/14/70 |
Loading capacity | kg | 300 |
Distance from vertical spindle to table | mm | 90-370 |
Distance from vertical spindle to column | mm | 200-700 |
Vertical spindle taper | - | ISO40 |
Vertical spindle quill diameter | mm | 95 |
Verical spindle quill travel | mm | 127 |
Vertical spindle quill automatic feed | mm/r | 0.04/0.08/0.015 |
Vertical spindle speed | rpm | 70-4540 (16) |
Vertical spindle motor power | kw | 2.2 |
Distance from horizontal spindle center to table | mm | 0-280 |
Horizontal spindle taper | - | ISO40 |
Horizontal spindle speed | rpm | 40-1300 (12) |
Horizontal spindle motor power | kw | 2.2 |
X/Y-axis feed speed | mm/min | 22-555 (8) |
X/Y-axis rapid feed speed | mm/min | 1080 |
Z-axis rapid feed speed | mm/min | 590 |
X/Y-axis feed motor power | kw | 0.75 |
Z-axis rapid feed motor power | kw | 0.75 |
Coolant pump power | kw | 0.09 |
Mill head swivel angle | ° | ±45° |
Mill head tilting angle | ° | ±45° |
Machine dimensions (LxWxH) | mm | 1700x1500x2150 |
Net weight/gross weight | kg | 1450/1600 |
Machine width | mm | 2430 |
Machine height | mm | 2580 |
Draw bar Horizontal mill arbor Coolant system Chip tray Work lamp Lubrication system Tools and Tool box Operator manual | 2/3-axis digital readout Variable stepless mill head Slotting head 58pcs clamping kit Machine vise Spindle protection guard Table protection guard Dividing head Rotary table Reducing sleeve |
