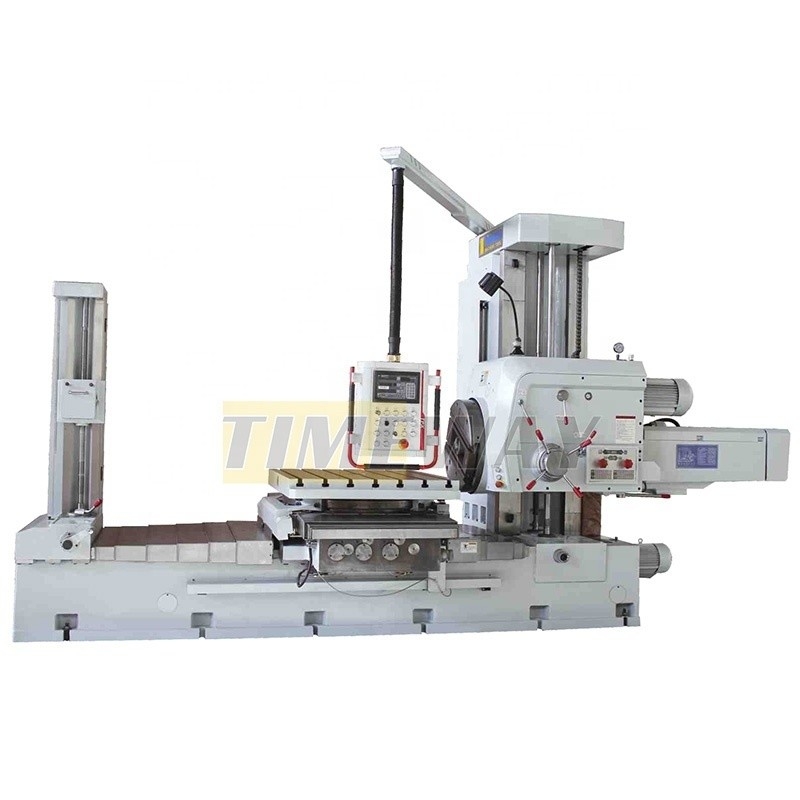

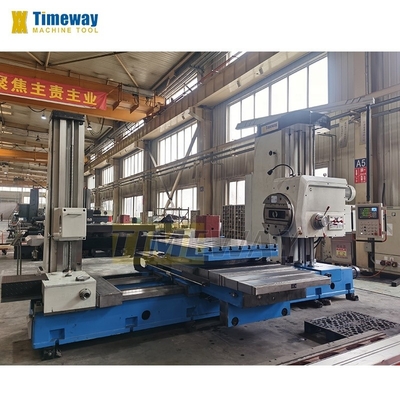

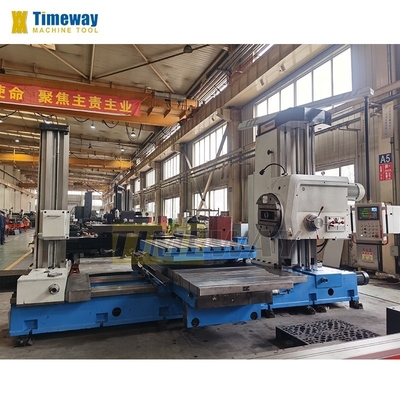

Industry Boring Machine with 900mm Y-axis Travel and 8-1000 r.p.m Spindle Speed Range
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | TPX-110C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $178,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1250 Mm | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 1400 Mm |
| Spindle Taper: | ISO30 | Range Of Spindle Speed(r.p.m): | 8 - 1000 R.p.m |
| Type: | Horizontal | Voltage: | 220/380 V |
| Dimension(L*W*H): | 4910x2870x2750 Mm | Weight (KG): | 13000 |
| Warranty: | 1 Year | Key Selling Points: | Energy Saving |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Table Load(kg): | 5000 Kg | Spindle Bore(mm): | 110 |
| Cutting Torque: | 1960 N.m | Rapid Feed Speed(mm/min): | 0 - 1000 Mm/min |
| Feed Speed(mm/min): | 0 - 1000 Mm/min | Tool Post Stations: | 4 |
| Machine Type: | Boring And Milling Machine | CNC Or Not: | Normal |
| Spindle Diameter: | 110 Mm | Main Motor Power: | 7.5 Kw |
| Table Size: | 1100x960 Mm | X-axis Travel: | 1250 Mm |
| Y-axis Travel: | 900 Mm | Z-axis Travel: | 1400 Mm |
| Overall Dimensions (LxWxH): | 4910x2870x2750 Mm | Machine Weight: | 13000 Kg |
Product Description
Products Description
Specification | Unit | TPX-110C |
Spindle Diameter | mm | Φ110 |
Spindle Taper | - | MT6 |
Max. spindle torque | N.m | 1225 |
Max. spindle thrust | N | 12250 |
Spindle speed steps | - | 22 |
Spindle speed range | rpm | 8-1000 |
Main motor power | kw | 7.5 |
Max. facing head torque | N.m | 1960 |

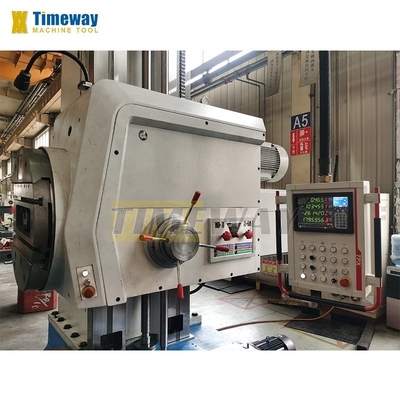

Facing head diameter | mm | Φ600 |
Facing head speed range | rpm | 4-200 |
Facing head speed steps | - | 18 |

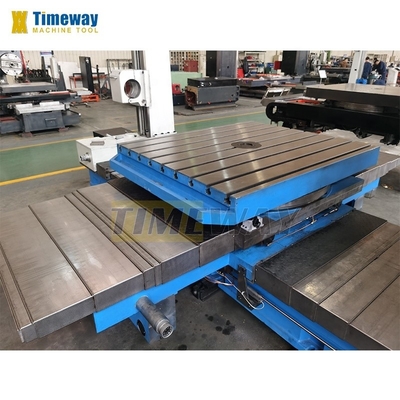

Table size | mm | 1100x960 |
Max. loading weight on table | kg | 5000 |
T-slot size | mm | 22 |
T-slot count | - | 7 |
X-axis travel | mm | 1250 |
Y-axis travel | mm | 900 |
Z-axis travel | mm | 1400 |
W-axis travel (spindle) | mm | 600 |
U-axis travel (facing slide travel) | mm | 180 |
B-axis rotary angle (table) | ° | 360° (4x90°) |
Distance between spindle cneter and worktable | mm | 0-900 |
Rapid feed speed (X/Y/Z/W) | mm/min | 2500 |
Range of axes speed per spindle revolution (X/Y/Z/W) | mm/rev | 0.04-6/0.01-1.88 |
Measurement reading accuracy (X/Y/Z) | mm | 0.005 |
Measurement reading accuracy (B-axis) | ° | 0.001° (optional) |
Overall dimensions (LxWxH) | mm | 4910x2870x2750 |
Machine weight | kg | 13000 |

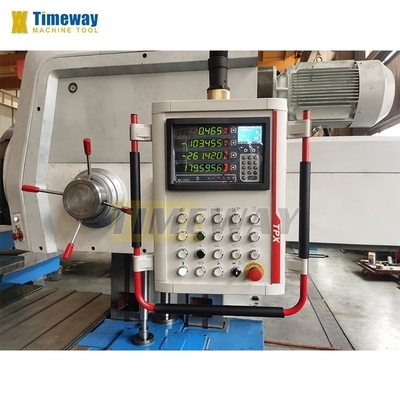

* MT6 spindle (110mm) * Metric 80 spindle (130mm)* Facing plate * Boring tool holder * Work lamp * Cooling system * Hydraulic system * Lubrication pump * NEWALL X/Y-axis DRO * MITSUBISHI PLC control * CE-mark electrical components * Level wedges & foundation bolts * Operating tools * Operation manual | * ISO50 (7:24) spindle * NEWALL Z-axis DRO * Rear column * Turning device & gears |
