BM715 Bed Type Milling Machine with Custom-made Design and 0.09kw Coolant Pump Power
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 650 | Table Travel (Z) (mm): | 100 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 2.5 - 3000 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 7.5kw |
| Voltage: | 220V/380V | Weight (KG): | 7300 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | BM715 Milling Machine Bed Type | Keyword: | Bed Type Milling Machine |
| Color: | Custom-made | Travel Z: | 100mm |
| Longitudinal Travel (X): | 1500mm | Cross Travel (Y): | 650mm |
| Machine Weight: | 7300kg | Machine Type: | BM715 |
| Coolant Pump Power: | 0.09kw | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Construction Works |
| Showroom Location: | Morocco, Canada, France, Germany | Core Components: | Bearing, Motor, Engine |
| Year: | 2022 | ||
Product Description
Product Description

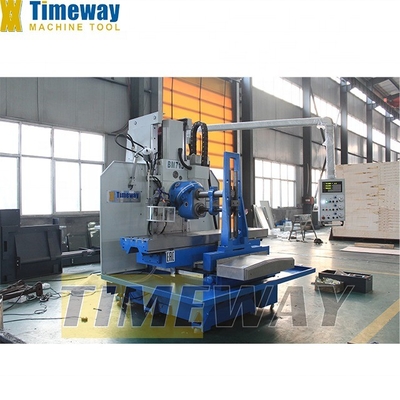

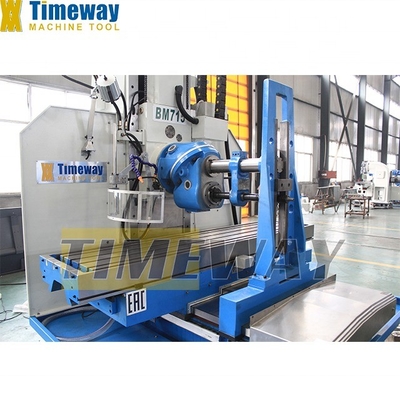

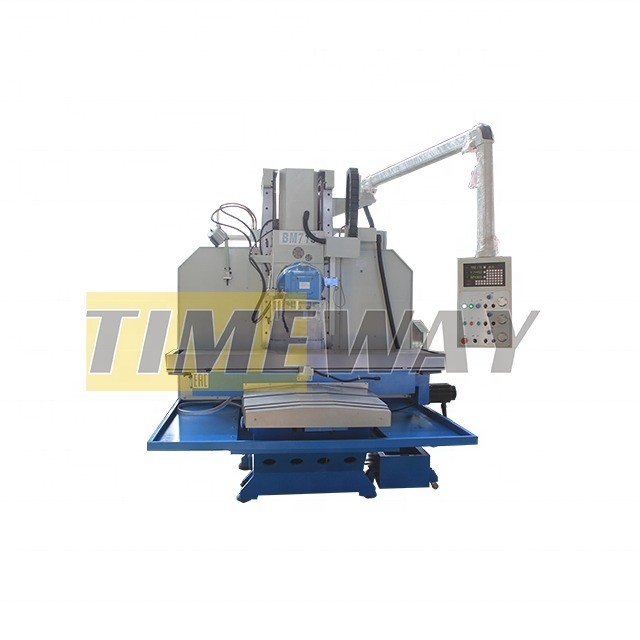

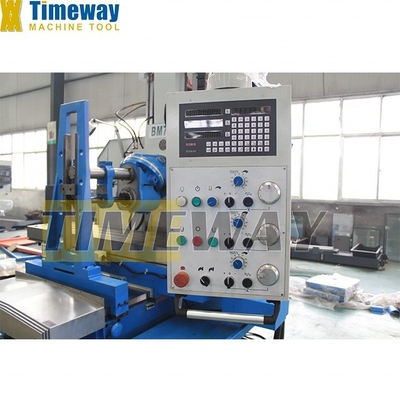

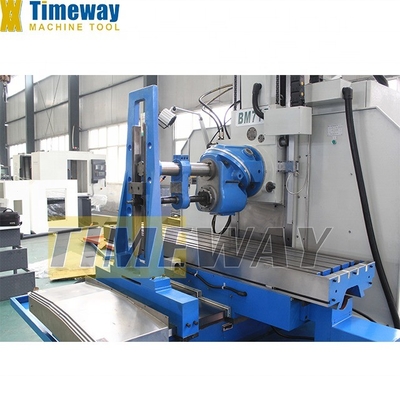

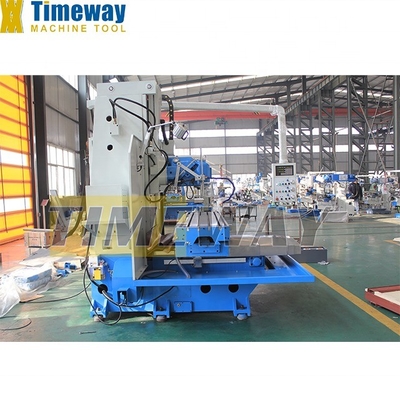

Bed Type Milling Machine BM715
Features:
* Servo feed motors on X, Y, Z-axis ensures response,accuracy and consistent feed;
* Micro switch on the manual knee handle for additional operator safety;
* Tool box and operations manual;
* Ball screw X, Y-axis providing smooth and accurate operation;
* Coolant system and halogen light included;
* Square construction slides for X, Z-axis to maximize rigidity;
* Clutch hand wheels X, Y-axis;
* Automatic oil lubrication pump and reservoir;
* Universal head swivels to horizontal position;
* Servo feed motors on X, Y, Z-axis ensures response,accuracy and consistent feed;
* Micro switch on the manual knee handle for additional operator safety;
* Tool box and operations manual;
* Ball screw X, Y-axis providing smooth and accurate operation;
* Coolant system and halogen light included;
* Square construction slides for X, Z-axis to maximize rigidity;
* Clutch hand wheels X, Y-axis;
* Automatic oil lubrication pump and reservoir;
* Universal head swivels to horizontal position;
Specification
SPECIFICATION | UNIT | BM715 |
Table size | mm | 500×2100 |
Longitudinal travel (X) | mm | 1500 |
Cross travel (Y) | mm | 650 |
Spindle Taper | - | ISO50 |
Vertical spindle speed | rpm | 6-1500 (2steps) |
X/Y-axis feed speed | mm/min | 2.5-3000 |
X/Y-axis rapid feed speed | mm/min | 6000 |
Z-axis feed speed | mm/min | 2.5-2500 |
Main motor power | kw | 11 |
Machine weight | kg | 7300 |
Standard accessories:
1.Draw bar
2.Milling chuck (ISO 50)
3.Taper shell end mill holder (ISO 50)
4.Middle cover
5.Work lamp
6.Oil gun
7.General tools8.Foundation bolt
9.Operation manual
9.Operation manual
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Customer Visiting
This is a picture of clients visiting our company when we hold exhibitions around the world.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
