Large machine bed, wide column, plus high intrinsic weight - Power package for machining of large parts and heavy-duty chip removal capacity.
1. An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.
2. Extra wide guideways ensure maximum stability and precision at high loads.
3. Extra long table travel distance (1800mm) and large table setup area (2500 x 600 mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
4. Wide spindle speed range from 40 to 1600 rpm.
5. Infinitely variable linear and cross feed.

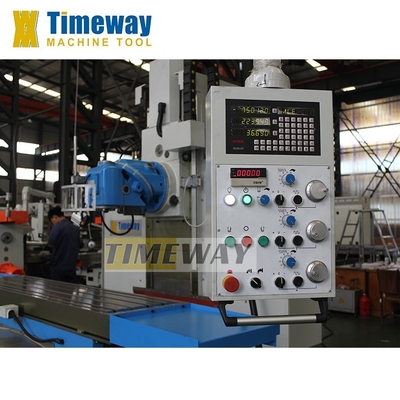

6. Control panel on a long extending arm that can be ideally positioned by the operator.
 |

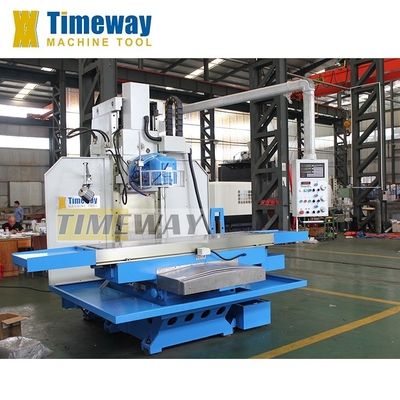

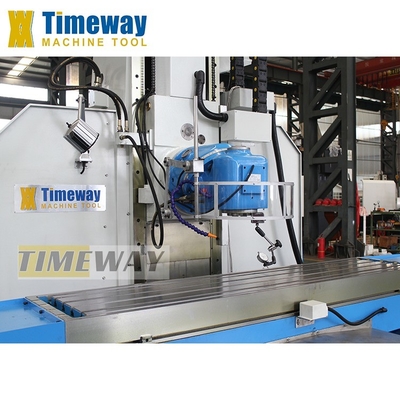

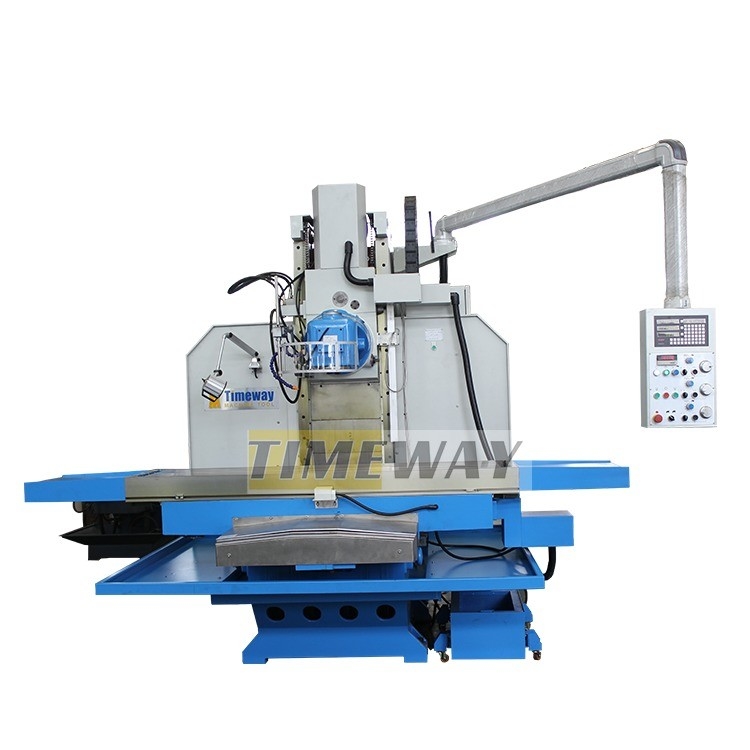

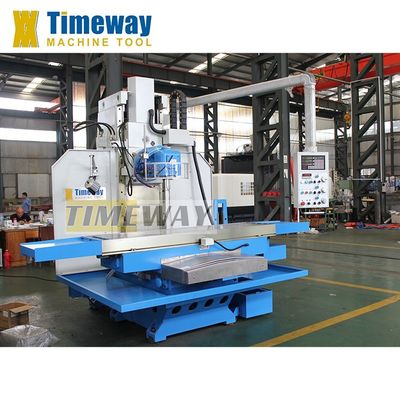

Heavy Duty BM716 Timeway/Divisor Universal Milling Machine with Large Size Bed Type
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | BM716 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 670 | Table Travel (Z) (mm): | 670 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 35 - 1345 R.p.m |
| Type: | Universal | Voltage: | 380V 50Hz |
| Dimension(L*W*H): | 3300x2380x2750mm | Weight (KG): | 7300 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Hot Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Table Load(kg): | 2000 Kg | Spindle Bore(mm): | 80 |
| Cutting Torque: | 18 N.m | Rapid Feed Speed(mm/min): | 2.5 - 2500 Mm/min |
| Feed Speed(mm/min): | 0 - 3000 Mm/min | Tool Post Stations: | None |
| Product Name: | Bed Type Milling Machine | Model: | BM716 |
| Machine Type: | Milling Machine Vertical Universal | After-sales Service Provided: | Spare Parts/1 Year |
| CNC Or Not: | Normal | Color: | Customizable |
| Table Size: | 600*2500mm | Longitudinal Travel: | 1800mm |
| Cross Travel: | 700mm | ||
Product Description
Product Description
Bed Type Milling Machine
Features:
Specification
Specifications | Unit | BM715 | BM716 |
Table size | mm | 2100x500 | 575x2500 |
Longitudinal travel (X) | mm | 1500 | 1800 (optional: 2000) |
Cross travel (Y) | mm | 670 | 600 |
Vertical spindle vertical travel (Z) | mm | 0-670 | 900 |
Horizontal spindle vertical travel (Z) | mm | - | - |
T slot (No./width/distance) | mm | 4/20/100 | 3/22/152 |
Loading capacity | kg | 2000 | 3000 |
Spindle quill travel | mm | - | - |
Spindle taper | - | ISO50 | ISO50 |
Verical spindle speed | rpm | 35-1345 (12) | 40-1200 (12) |
Horizontal spindle speed | rpm | - | - |
Spindle quill feed speed | mm/r | - | - |
Distance from horizontal spindle axis to table | mm | 30 (Min.) | |
Distance from spindle axis to column | mm | 610 | 110 |
Distance from spindle nose to table | mm | 0-670 | 49 (Min.) |
X/Y-axis feed speed | mm/min | 20-1800 | 20-2200 |
X/Y-axis rapid feed speed | mm/min | 3500 | 3000 |
Z-axis feed speed | mm/min | 10-900 | 12-1320 |
Z-axis rapid feed speed | mm/min | 1750 | 1800 |
Main motor power | kw | 7.5 | 11 |
Machine weight | kg | 7300 | 10000 |
Machine dimensions (L×W×H) | mm | 3300x2380x2750 | 4300x3200x3300 |
Accessories
STANDARD ACCESSORIES
1.Draw bar 2.Milling chuck (ISO 50)
3.Taper shell end mill holder (ISO 50)
4.Middle cover
5.Work lamp
6.Oil gun
7.General tools
3.Taper shell end mill holder (ISO 50)
4.Middle cover
5.Work lamp
6.Oil gun
7.General tools
8.Foundation bolt
9.Operation manual
9.Operation manual
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

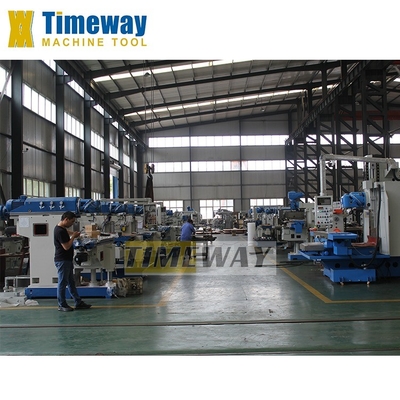

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
