Universal Turret Milling Machine M230B with 2.2kw Main Motor Power and 1060KG Weight
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | M230B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 670/790 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 310 | Table Travel (Z) (mm): | 390 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Voltage: | 280/380V | Dimension(L*W*H): | 1400x1476x2030 |
| Weight (KG): | 1060 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 230x1067/230x1246mm |
| Longitudinal Travel(X): | 610/790mm | Cross Travel(Y): | 310mm |
| Vertical Travel(Z): | 390mm | Distance From Spindle To Table: | 0-350mm |
| Main Motor Power: | 2.2kw | Spindle Quill Travel: | 127mm |
| Spindle Quill Automatic Feed: | 0.038/0.076/0.152mm/r | Gross Weight: | 1060kg |
| Key Word: | Turret Milling Machine | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works |
| Showroom Location: | Morocco, Australia, Canada | Core Components: | Bearing, Motor, Pump |
| Year: | 2022 | Port: | China Port |
Product Description
Product Description

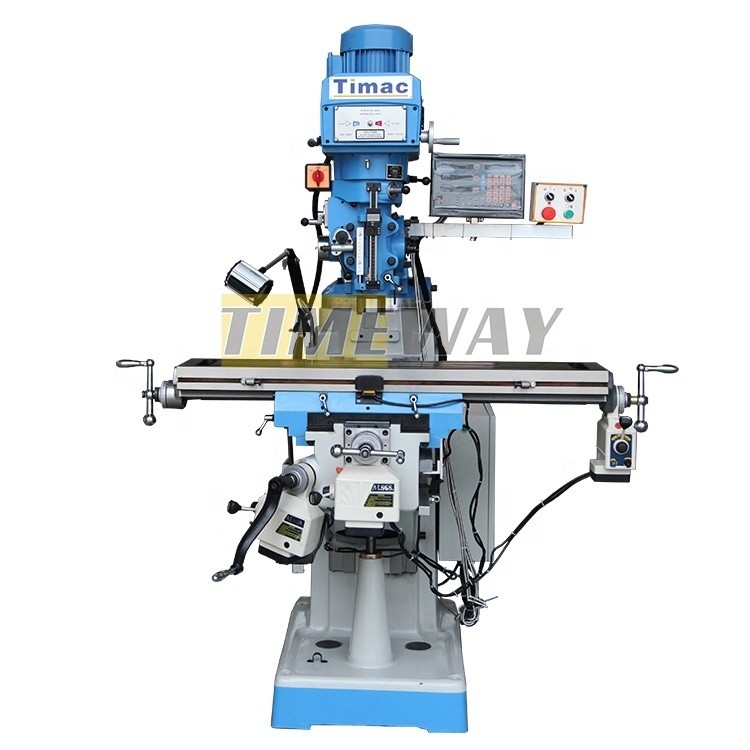

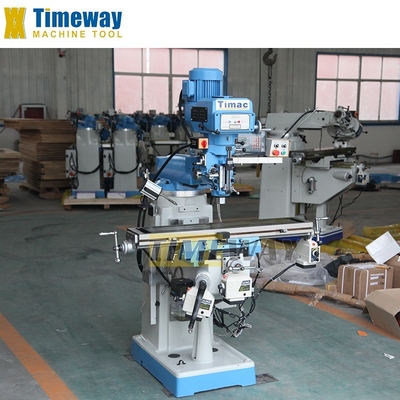

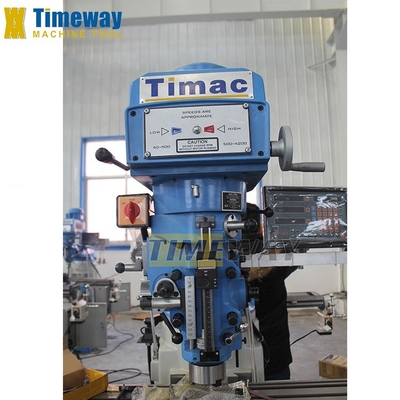

Turret Milling Machine M230B
These robust and stable universal milling machine are ideal for drilling and milling simple to difficult workpieces in single parts production.
Specification
Specification | Unit | M230B | ||
Table size | mm | 230x1067/230x1246 | ||
Longitudinal travel (X) | mm | 610/790 | ||
Cross travel (Y) | mm | 310 | ||
Vertical travel (Z) | mm | 390 | ||
T-slot (No./width) | mm | 3/16 | ||
Ram travel | mm | 315 | ||
Distance from spindle to table | mm | 0-350 | ||
Spindle taper | - | R8 (Optional : ISO30/ISO40) | ||
Spindle quill travel | mm | 127 | ||
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) | ||
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 | ||
Main motor power | kw | 2.2 | ||

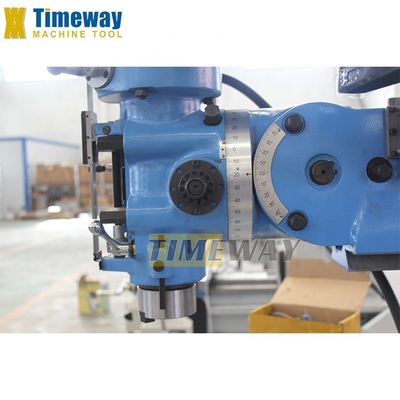

Mill head swivel angle | ° | ±90° | ||
Mill head tilting angle | ° | ±45° | ||
X/Y/Z-axis guide type | - | ▲■▲ | ||
Dimension of package | One | mm | 1400x1476x2030 | |
Two | mm | 1450x1570x2080 | ||
Three | mm | 1450x2180x2080 | ||
Gross weight (One) | kg | 1060 | ||
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
