Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
 |

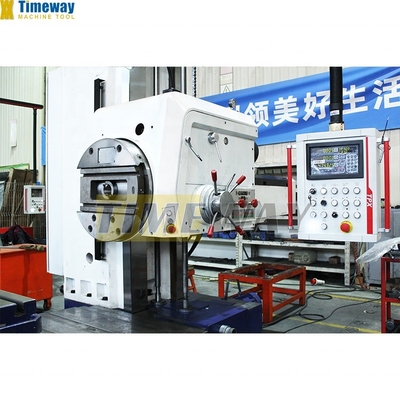

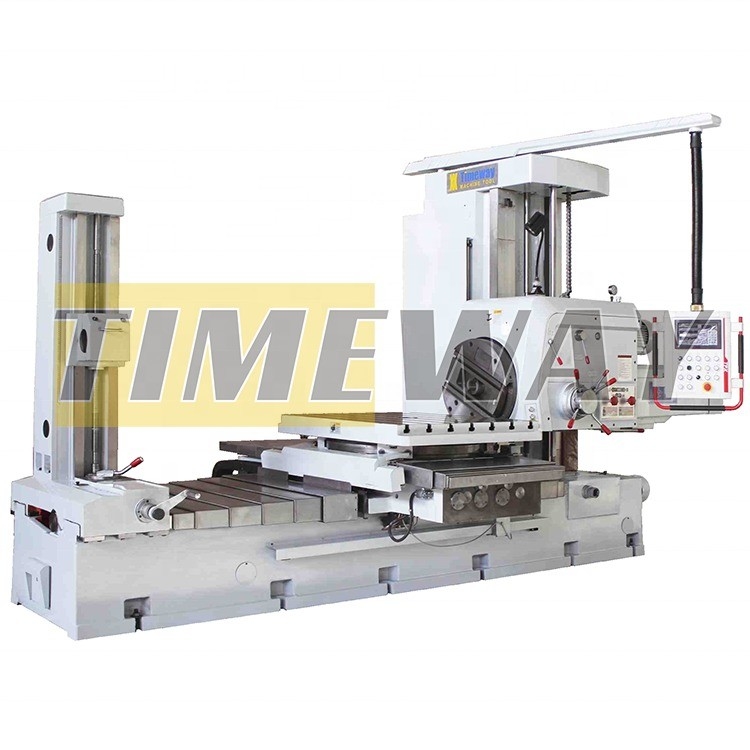

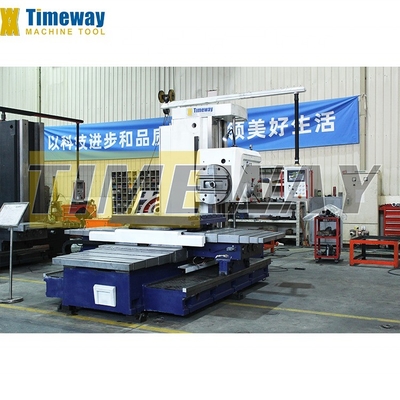

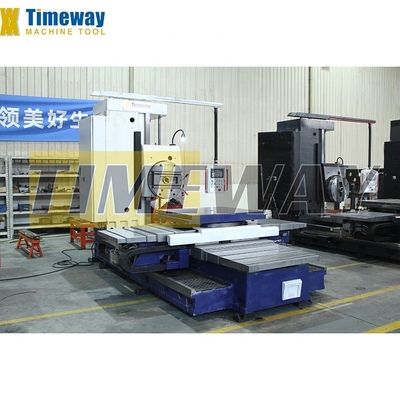

Table Size of 1100x960 TPX-110B Boring and Milling Machine with Table Travel of 900 mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 1100x960 | Table Travel (X) (mm): | 900 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 1400 Mm |
| Number Of Axes: | 5 | Max. Table Load(kg): | 5000 |
| Travel (W-axis) (mm): | 600 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Gearbox, Motor, Gear |
| Range Of Spindle Speed(r.p.m): | 81000 R.p.m | Spindle Motor Power(kW): | 7.5 |
| Type: | Horizontal | Condition: | New |
| Dimension(L*W*H): | 4910x2454x2750 | Weight (T): | 11.5 T |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops | Showroom Location: | Egypt, Italy, Peru, Russia |
| Product Name: | Boring Machine Tool | After-sales Service Provided: | Online Support |
| Application: | Construction Machine Repairing | Functions: | Broing |
| Usage: | Reboring Automobile Cylinders | Product Type: | Portable Line Boring Machineine |
| Keyword: | Horizontal Engine Block Boring Milling Machine | Color: | Meet Customer's Requirement |
| Precision: | High Precision Floor | Material: | High Grade Cast Iron |
| Port: | China Port | ||
Product Description
Products Description
TPX-110B
Specification | Unit | TPX-110B |
Spindle Diameter | mm | Φ110 |
Spindle Taper | - | MT6 |
Max. spindle torque | N.m | 1225 |
Max. spindle thrust | N | 12250 |
Spindle speed steps | - | 22 |
Spindle speed range | rpm | 8-1000 |
Main motor power | kw | 7.5 |
Max. facing head torque | N.m | 1960 |
Facing head diameter | mm | Φ600 |
Facing head speed range | rpm | 4-200 |
Facing head speed steps | - | 18 |

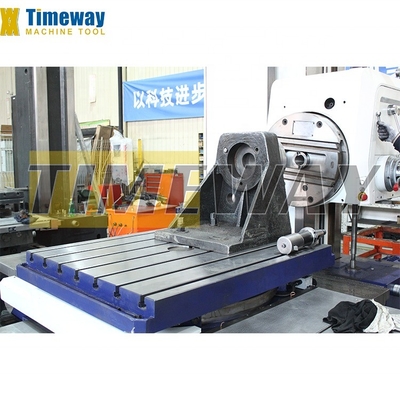

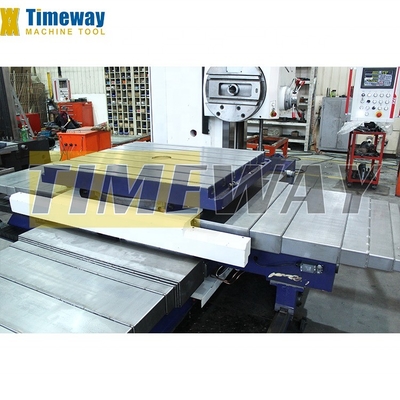

Table size | mm | 1100x960 |
Max. loading weight on table | kg | 5000 |
T-slot size | mm | 22 |
T-slot count | - | 7 |
X-axis travel | mm | 900 |
Y-axis travel | mm | 900 |
Z-axis travel | mm | 1400 |
W-axis travel (spindle) | mm | 600 |
U-axis travel (facing slide travel) | mm | 180 |
B-axis rotary angle (table) | ° | 360° (4x90°) |
Distance between spindle cneter and worktable | mm | 0-900 |
Rapid feed speed (X/Y/Z/W) | mm/min | 2500 |
Range of axes speed per spindle revolution (X/Y/Z/W) | mm/rev | 0.04-6/0.01-1.88 |
Measurement reading accuracy (X/Y/Z) | mm | 0.005 |
Measurement reading accuracy (B-axis) | ° | 0.001° (optional) |
Overall dimensions (LxWxH) | mm | 4910x2454x2750 |
Machine weight | kg | 11500 |
- MT6 spindle (110mm) - Metric 80 spindle (130mm) - Facing plate - Boring tool holder - Work lamp - Cooling system - Hydraulic system - Lubrication pump - NEWALL X/Y-axis DRO - MITSUBISHI PLC control - CE-mark electrical components - Level wedges & foundation bolts - Operating tools - Operation manual | - ISO50 (7:24) spindle - NEWALL Z-axis DRO - Rear column - Turning device & gears |
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
