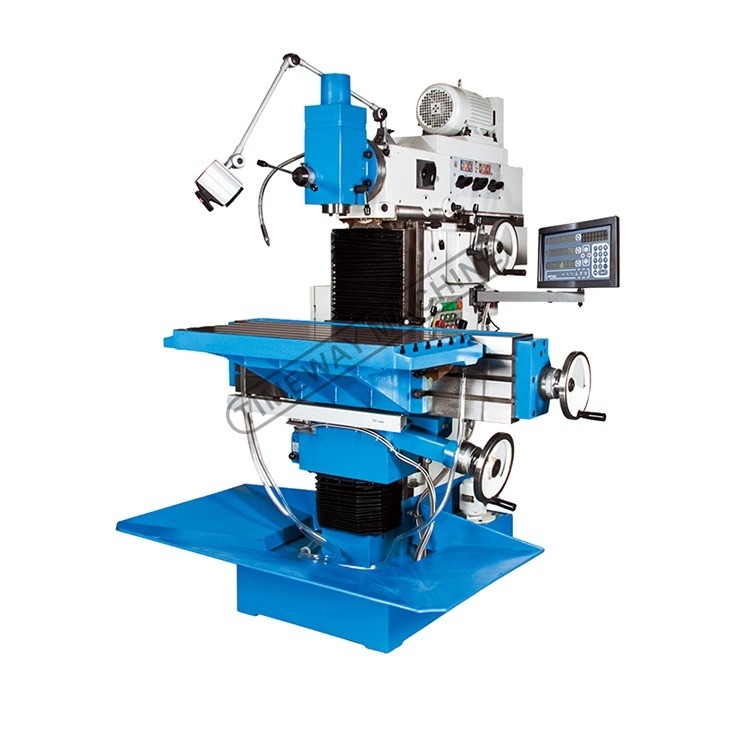

2023 Universal Tool Milling Machine with ISO40 Spindle Taper and Versatile Functions
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | UTM300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 405 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 200 | Table Travel (Z) (mm): | 390 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 40 - 1600 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Voltage: | Customized | Dimension(L*W*H): | 1170*1210*1600 |
| Weight (KG): | 1100 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Longitudinal Travels(X): | 405mm |
| Transverse Travel(Y): | 200mm | Vertical Travel(Z): | 390mm |
| Name: | Universal Milling Machine | Machine Type: | Milling Machine Vertical Universal |
| Product Name: | Metal Milling Machine | Model: | UTM300 |
| Color: | Customizable | Processing: | Mechanical Processing |
| Precision: | High Precision Universal Milling Machine | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Canada, Turkey, United Kingdom, United States, Italy, France, Germany | Core Components: | Bearing, Motor, Pump, Engine, Gearbox |
| Year: | 2023 | ||
Product Description
Product Description
Features:
*Milling machine for tool construction;
*Automatic feeds on all 3 axes;
*Outer arbor supporting for horizontal milling;
*Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;

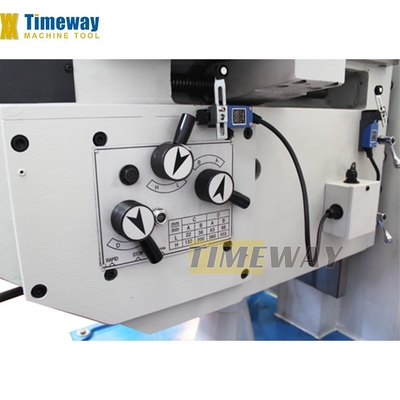

*Streamlined arrangement of operating controls on the right side;

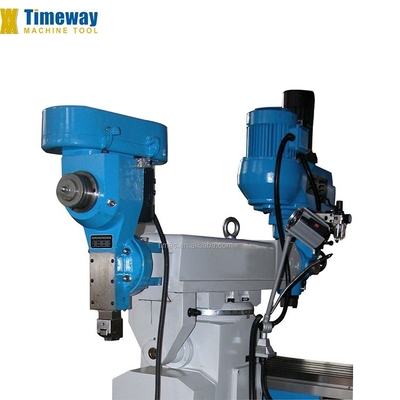

*Vertical head quill for drilling, with hand lever feed;
*Quill stroke 80mm;
*Central lubrication;
*Hardened guide ways;
*Can be equipped with Digital Position Indicator.
*Milling machine for tool construction;
*Automatic feeds on all 3 axes;
*Outer arbor supporting for horizontal milling;
*Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;
*Streamlined arrangement of operating controls on the right side;
*Vertical head quill for drilling, with hand lever feed;
*Quill stroke 80mm;
*Central lubrication;
*Hardened guide ways;
*Can be equipped with Digital Position Indicator.

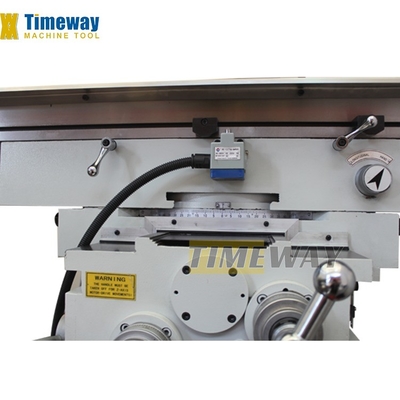

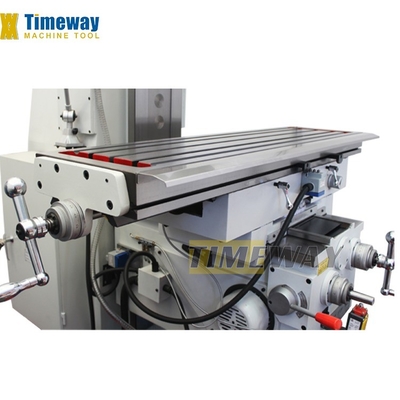

Detailed Images
Specification
Specification | UTM300A | UTM320A | UTM400A |
Work space dimensions | 300 x750 mm | 320 x 750 mm | 400 x 800 mm |
Vertical table dimensions | 225 x 830 mm | 225 x 830 mm | 250 x 1060 mm |
T-slots,work table | 5 x 14 x 63 mm | 5 x 14 x 63 mm | 6 x 14 x 63 mm |
T-slots,vertical table | 2 x 14 x 126 mm | 3 x 14 x 63 mm | 3 x 14 x 63 mm |
Longitudinal travels(X) | 405(manual) / 395 mm | 45(manual) / 400 mm | 500 mm |
Transverse travel(Y) | 200 mm | 305(manual) / 300 mm | 400 mm |
Vertical travel(Z) | 390(manual) / 380 mm | 400(manual) / 390 mm | 400 mm |
Horizontal spindle(Min.) | 35 mm | 85 ± 63 mm | 95 ± 63 mm |
Horizontal spindle(Max.) | 425 mm | 485 ± 63 mm | 475 ± 63 mm |
Vertical spindle(Min.) | 85 ± 63 mm | 55 ± 63 mm | |
Vertical spindle(Max.) | 440 ± 63 mm | 445 ± 63 mm | |
Max.throat | 188 mm | 160 mm | 540 mm |
Speed range | 40-1600 r/min | 40~2000 r/min. | 40~2000 r/min. |
Spindle mount | ISO 40, Taper 7:24 | ISO 40, 7:24 | ISO 40, Taper 7:24 |
X,Y,Z axis feeds | 10-380 mm/min. | 10~380 mm/min. | |
Rapid feed | 1200 mm/min. | 1200 mm/min. | |
Quill stroke | 80 mm | 80 mm | 80 mm |
Main motor rating | 2.2 kw | 2.2 kw | 3 kw |
Feed motor rating | 3.59 kw | 5 kw | |
Dimensions(LxWxH) | 1170×1210×1600 mm | 1215 x 1200 x 1800 mm | 1390 x 1430 x 1820 mm |
Weight | 1100 Kg | 1300 kg | 1400 Kg |

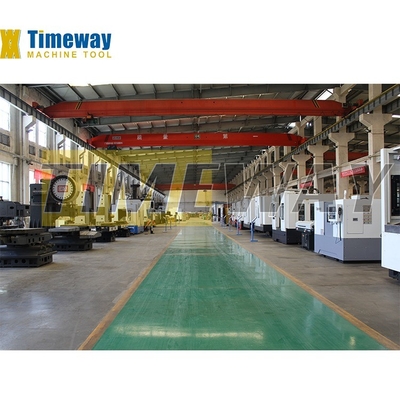

Company Profile
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Want to Know more details about this product
