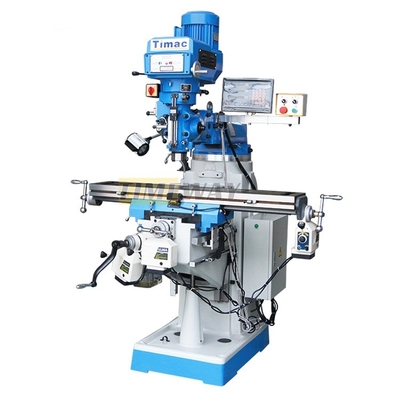

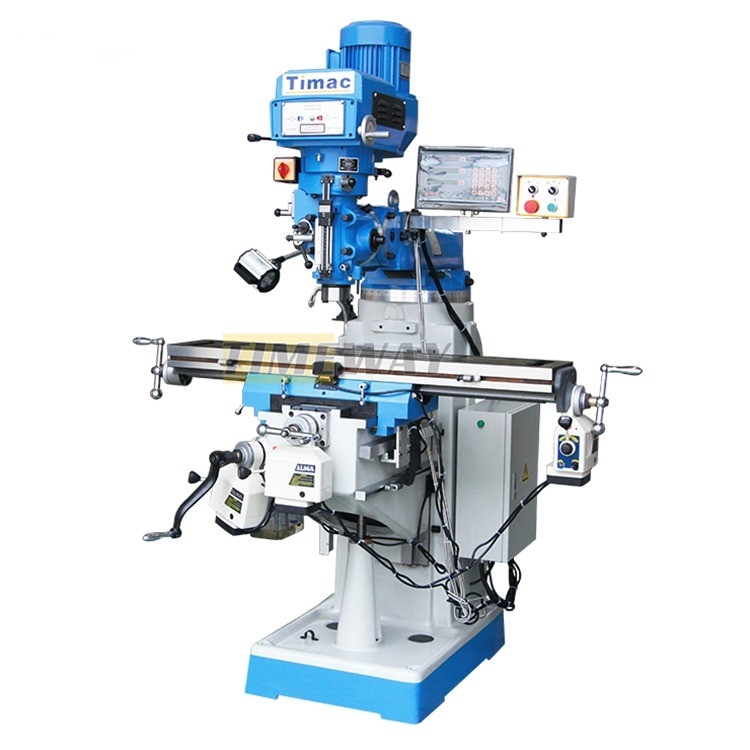

400mm Table Travel Vertical Drilling Milling Machine for Accurate Drilling and Milling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | MD200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 400 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 230 | Table Travel (Z) (mm): | 350 |
| Spindle Taper: | ISO30 | Range Of Spindle Speed(r.p.m): | 115 - 1750 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 1.5 |
| Voltage: | Customized | Dimension(L*W*H): | 1290x1220x2100 |
| Weight (KG): | 800 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Drilling Milling Machine |
| Machine Type: | Vertical Drilling Milling | Product Name: | Drilling Milling Machines |
| Keyword: | Milling Machine Metal | Precision: | High Precision Milling Machine |
| Color: | Cusomer Request | Function: | Milling Drilling Tapping |
| Longitudinal Travel (X): | 400 | Cross Travel (Y): | 230 |
| Vertical Travel (Z): | 350 | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Canada, Turkey, United Kingdom, United States, Italy, France, Germany | Core Components: | Bearing, Motor, Pump, Engine, Gearbox |
| Table Travel (mm): | 400*230*350 | Year: | 2021 |
| Port: | China Port | ||
Product Description
Product Description
Specification
Specifications | Unit | MD100 | MD200 | MD300 |
Table size | mm | 240x800 | 240x800 | 240x800 |
Longitudinal travel (X) | mm | 400 | 400 | 400 |
Cross travel (Y) | mm | 230 | 230 | 230 |
Vertical travel (Z) | mm | 350 | 350 | 350 |
T-slot No. and size and distance | mm | 3/14/60 | 3/14/60 | 3/14/60 |
Distance from spindle to table | mm | 70-420 | 70-420 | 90-420 |
Max. drilling capacity | mm | 50 | 50 | 50 |
Spindle taper | - | R8/ISO30 | R8/ISO30/MT4 | ISO40 |
Spindle quill travel | mm | 120 | 120 | 120 |
Spindle speed | rpm | 230-1825 (8) | 115-1750 (8) | 90-2000 (8) |
Main motor power | kw | 0.85/1.5 | 0.85/1.5 | 1.5 |
Mill head swivel angle | ° | ±45° | ±45° | ±45° |
X/Y/Z-axis guide type | - | ▲▲▲ | ▲▲▲ | ▲▲▲ |
Machine dimensions (LxWxH) | mm | 1290x1220x2100 | 1290x1220x2100 | 1290x1220x2100 |
Net weight/gross weight | kg | 800/900 | 800/900 | 820/900 |

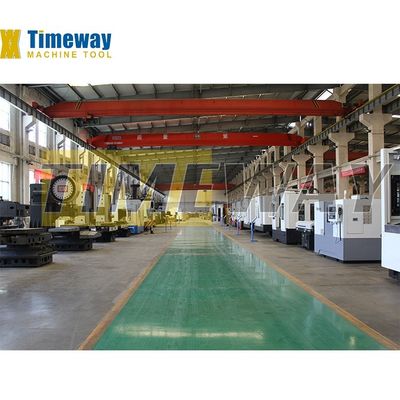

Company Profile
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
FAQ
1. who are we?
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2010,sell to South America(20.00%),Africa(15.00%),Eastern Europe(15.00%),South Asia(10.00%),North America(10.00%),Oceania(10.00%),Western Europe(10.00%),Southeast Asia(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lathe, CNC Lathe, CNC Milling Machine, Machining Center, Grinding Machine
4. why should you buy from us not from other suppliers?
Our factory have more than 50years experience of researching & producing lathe and heavy duty lathe, both conventional and CNC types, normal use and special use, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
