High Precision Vertical Milling and Drilling Machine with 400mm Longitudinal Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | MD300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,900.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 400 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 230 | Table Travel (Z) (mm): | 350 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 90 - 2000 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 1.5 |
| Voltage: | 380V | Dimension(L*W*H): | 1100*970*1650mm |
| Weight (KG): | 900 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Milling Machine |
| Machine Type: | Milling Machine Vertical Universal | Product Name: | Metal Milling Machine |
| Keyword: | Milling Machine Manual | Function: | Drilling Milling |
| Color: | Blue | Precision: | High Precision Milling Machine |
| Longitudinal Travel (X): | 400 | Cross Travel (Y): | 230 |
| Vertical Travel (Z): | 350 | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works |
| Showroom Location: | Algeria, Egypt, Canada | Core Components: | Motor, PLC, Gearbox |
| Table Travel (mm): | 400*230*350 | Year: | 2023 |
| Port: | China Port | ||
Product Description
Product Description

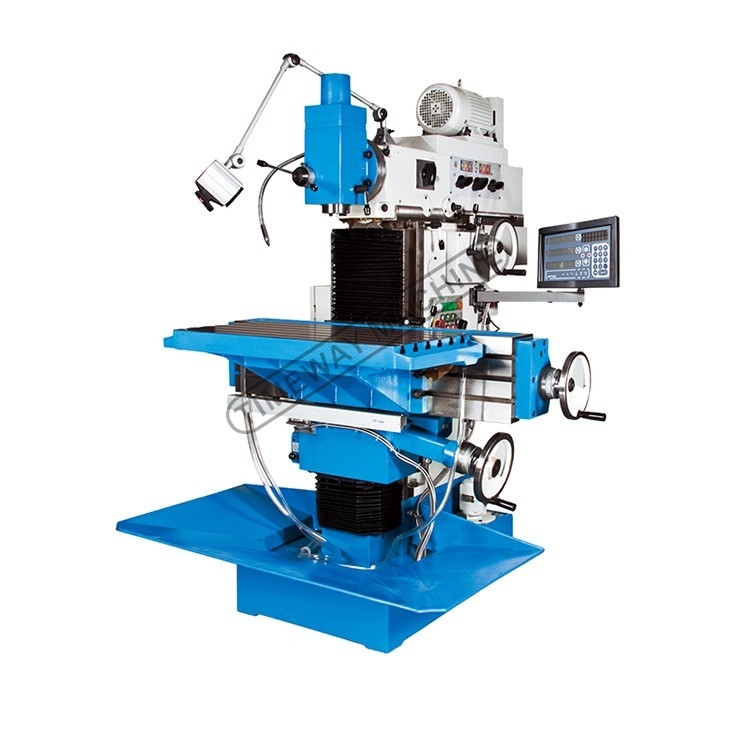

Vertical Milling and Drilling Machine
Features:

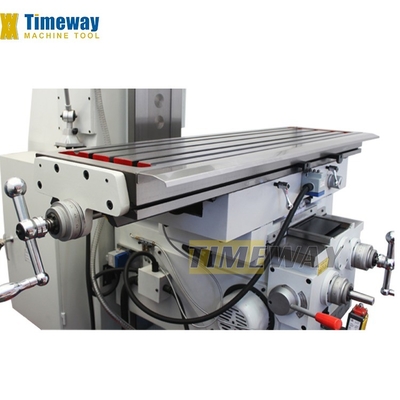

---Hardened and ground table surface, guideways, and gears, and scrapped by hand.
---The machine is a multi-functions drilling milling machine, can finish milling and drilling at one clamping workpiece.
---For MD100H, vertical and horizontal spindle are driven by V-belt to gain 8-steps speed.
---For other MD series, vertical spindle gain 8steps speed by gears, horizontal spindle gain 8steps speed by V-belt.

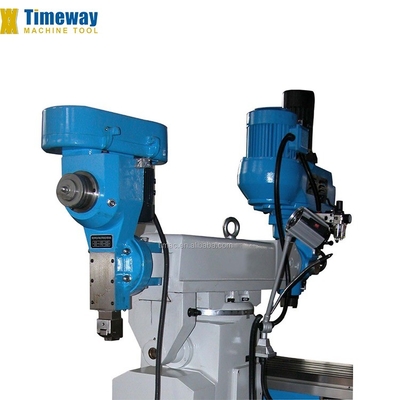

---Mill head swivels ±90°, quill movement by capstan handle, or quill micro-feed by hand-wheel.
---Top beam can be rotated by ±180° on the column to horizontal machining.

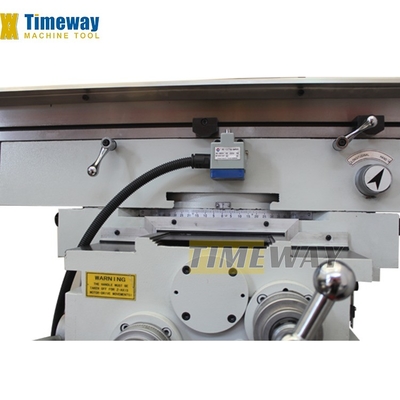

---X/Y/Z-axis feed by hand-wheel. Power feeder and gear-box feeder come optional for auto-feed.
---Coolant system and work lamp and chip collection tray are included in standard equipment.
---Compact, easy to handle milling machine with rigid frame made of vibration-dampening cast-iron.
---Hardened and ground table surface, guideways, and gears; The guideway is scrapped by hand.

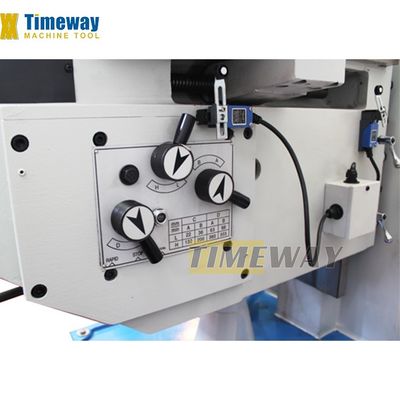

---Vertical and horizontal spindle speeds are changed by gear-box.
---Auto-feed and rapid feed on X, Y axes, lifting motor is on Z axis.
---Spindle quill automatic feed with 3 steps, drill depth stop with display of measurement.
---Entire cutter head swivels ±90°, expand machining range of machine tools.
---Top beam can be rotated by ±180° on the column to horizontal machining.
----Coolant system and work lamp and chip collection tray are included in standard equipment.
---Hardened and ground table surface, guideways, and gears, and scrapped by hand.
---The machine is a multi-functions drilling milling machine, can finish milling and drilling at one clamping workpiece.
---For MD100H, vertical and horizontal spindle are driven by V-belt to gain 8-steps speed.
---For other MD series, vertical spindle gain 8steps speed by gears, horizontal spindle gain 8steps speed by V-belt.
---Mill head swivels ±90°, quill movement by capstan handle, or quill micro-feed by hand-wheel.
---Top beam can be rotated by ±180° on the column to horizontal machining.
---X/Y/Z-axis feed by hand-wheel. Power feeder and gear-box feeder come optional for auto-feed.
---Coolant system and work lamp and chip collection tray are included in standard equipment.
---Compact, easy to handle milling machine with rigid frame made of vibration-dampening cast-iron.
---Hardened and ground table surface, guideways, and gears; The guideway is scrapped by hand.
---Vertical and horizontal spindle speeds are changed by gear-box.
---Auto-feed and rapid feed on X, Y axes, lifting motor is on Z axis.
---Spindle quill automatic feed with 3 steps, drill depth stop with display of measurement.
---Entire cutter head swivels ±90°, expand machining range of machine tools.
---Top beam can be rotated by ±180° on the column to horizontal machining.
----Coolant system and work lamp and chip collection tray are included in standard equipment.
Specification
Specifications | Unit | MD100H | MD200H | MD300H |
Table size | mm | 240x800 | 240x800 | 240x800 |
Longitudinal travel (X) | mm | 400 | 400 | 400 |
Cross travel (Y) | mm | 230 | 230 | 230 |
Vertical travel (Z) | mm | 350 | 350 | 350 |
T-slot No. and size and distance | mm | 3/14/60 | 3/14/60 | 3/14/60 |
Distance from spindle to table | mm | 70-420 | 70-420 | 90-420 |
Max. drilling capacity | mm | 50 | 50 | 50 |
Spindle taper | - | R8/ISO30 | R8/ISO30/MT4 | ISO40 |
Spindle quill travel | mm | 120 | 120 | 120 |
Spindle speed | rpm | 230-1825 (8) | 115-1750 (8) | 90-2000 (8) |
Main motor power | kw | 0.85/1.5 | 0.85/1.5 | 1.5 |
Mill head swivel angle | ° | ±45° | ±45° | ±45° |
X/Y/Z-axis guide type | - | ▲▲▲ | ▲▲▲ | ▲▲▲ |
Machine dimensions (LxWxH) | mm | 1290x1220x2100 | 1290x1220x2100 | 1290x1220x2100 |
Net weight/gross weight | kg | 800/900 | 800/900 | 820/900 |
