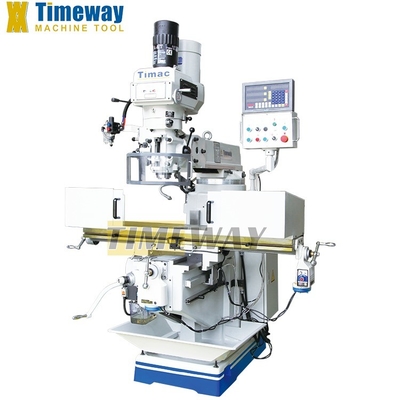

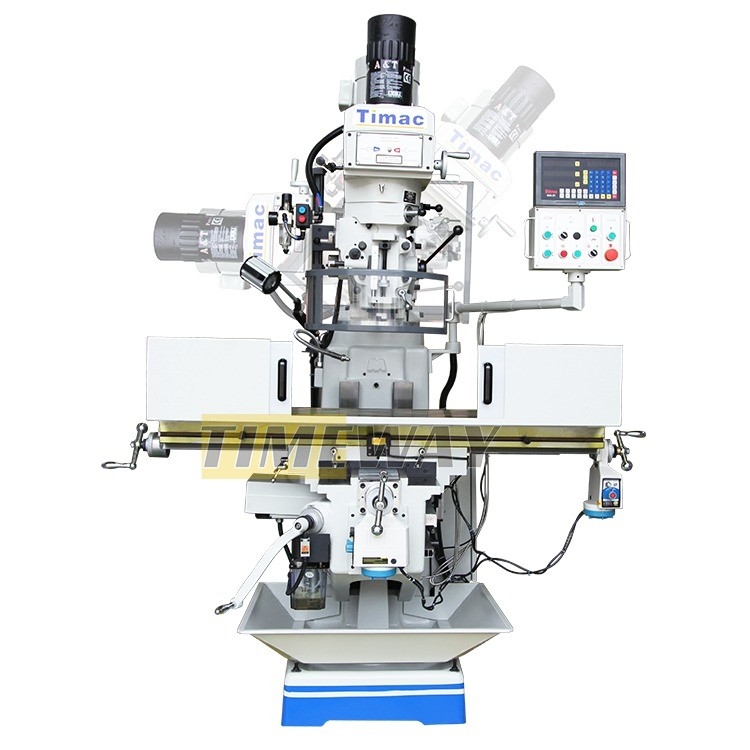

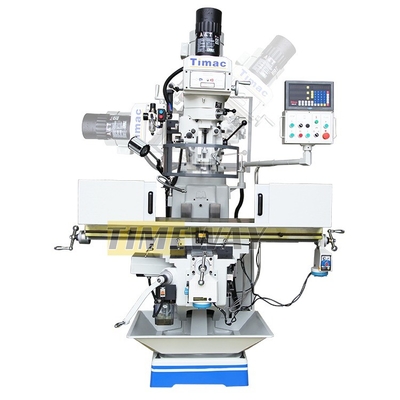

These pictures are the details of the machine, which can better help you understand the machine.
 |
Variable Speed Universal Vertical Turret Milling Machine with 3.7KW Main Motor Power
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | M250C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 820 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 410 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 3.7 |
| Dimension(L*W*H): | 1516*1550*2080mm | Weight (KG): | 1490 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Metal Milling Machine | Machine Type: | Milling Machine Vertical Universal |
| Model: | M250C | CNC Or Not: | Normal Milling Machine |
| Color: | Cusomer Request | Table Size: | 254*1270mm |
| Spindle Speed: | 65-4500/80-5440 Rpm | Main Motor Power: | 3.7KW |
| After-sales Service Provided: | 1 Year | Cross Travel: | 410mm |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Energy & Mining | Showroom Location: | South Africa, Ukraine, Viet Nam, Russia |
| Core Components: | Pump, Gear, Engine | ||
Product Description
Products Description
Universal Milling Machine
Accessories
· 3-axis DRO · Step pulley mill head · Draw bar · Working light · Hand oil Pump · Cooling system · Oil collecting plate · Plastic splash guard · Tool & tool box · Operator manual |
Specification
Specifications | Unit | M250C | M300 | M330 | ||
Table size | mm | 254x1270/254x1370 | 305x1370/305x1500 | 330x1370/330x1500 | ||
Longitudinal travel (X) | mm | 820/920 | 870/1000 | 820/1000 | ||
Cross travel (Y) | mm | 410 | 360 | 380 | ||
Vertical travel (Z) | mm | 400 | 380 | 460 | ||
T-slot (No./width) | mm | 3/16 | 3/16 | 3/16 | ||
Ram travel | mm | 470 | 500 | 500 | ||
Distance from spindle to table | mm | 0-400 | 0-350 | 0-450 | ||
Spindle taper | - | ISO40 | ISO40 | ISO40 | ||
Spindle quill travel | mm | 127 | 127 | 127 | ||
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 65-3750) | ||||
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 | ||||
Main motor power | kw | 3.7 | ||||
Mill head swivel angle | ° | ±90° | ||||
Mill head tilting angle | ° | ±45° (Fix) | ||||
Dimension of package(one) | mm | 1516x1550x2080 | 1566x1650x2080 | 1800x2020x2200 | ||
Dimension of package(two) | mm | 1650x1790x2170 | 1720x1800x2175 | 1800x2200x2180 | ||
Gross weight (One) | kg | 1490 | 1650 | 2200 | ||

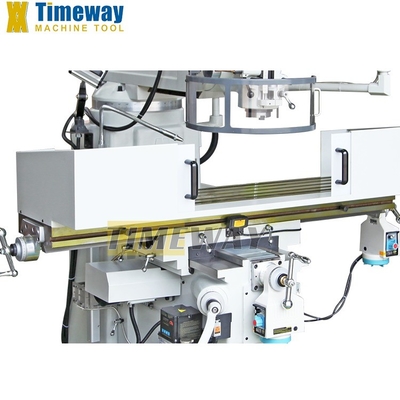

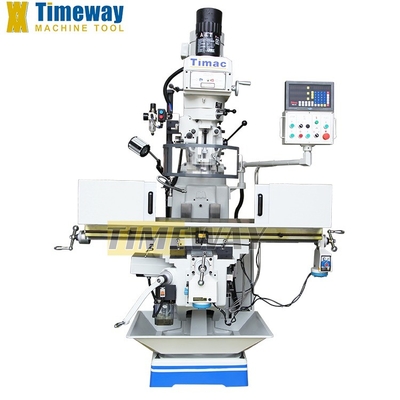

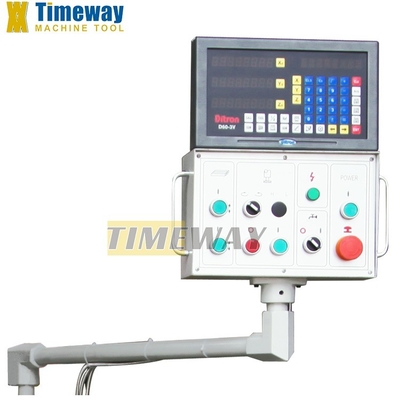

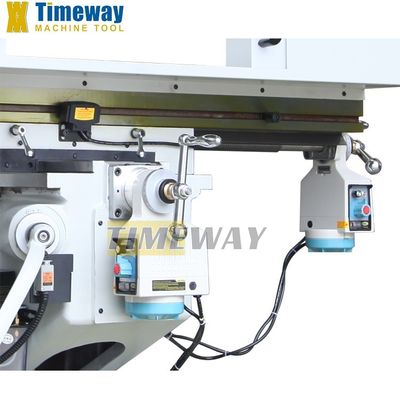

Detailed Images
Client feedback
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
