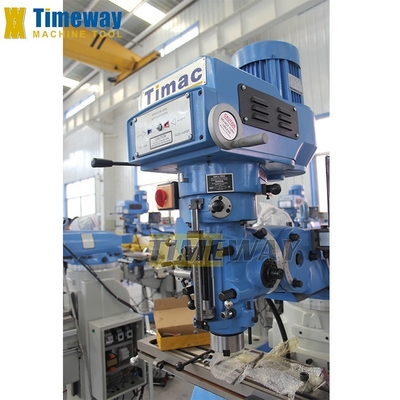

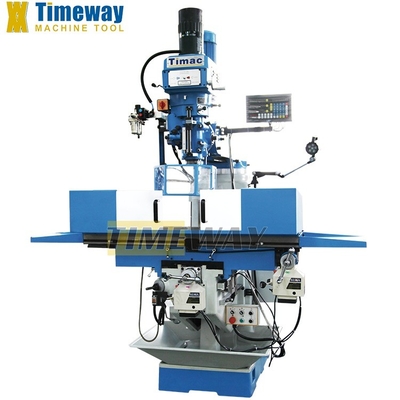

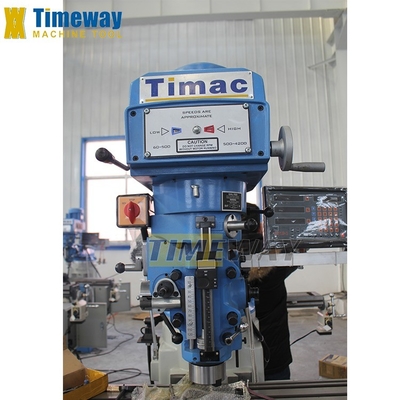

Vertical Universal Precision Manual Milling Machine with DRO and Table Travel Y of 420mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | TM300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 880 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 420 | Table Travel (Z) (mm): | 500 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | Universal | Dimension(L*W*H): | 1600*1700*2200mm |
| Weight (KG): | 1640 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Metal Milling Machine |
| Machine Type: | Milling Machine Vertical Universal | CNC Or Not: | Normal Milling Machine |
| Color: | Cusomer Request | After-sales Service Provided: | 1 Year |
| Table Size: | 305*1370mm | Cross Travel: | 420mm |
| Spindle Speed: | 65-4500/80-5440 Rpm | Model: | TM300 |
| Package: | Wooden Box | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining |
| Showroom Location: | Algeria, Bangladesh, Egypt, Viet Nam, Russia | Core Components: | Motor, Pump, Gear, PLC, Gearbox |
| Port: | China Port | ||
Product Description
Product Description

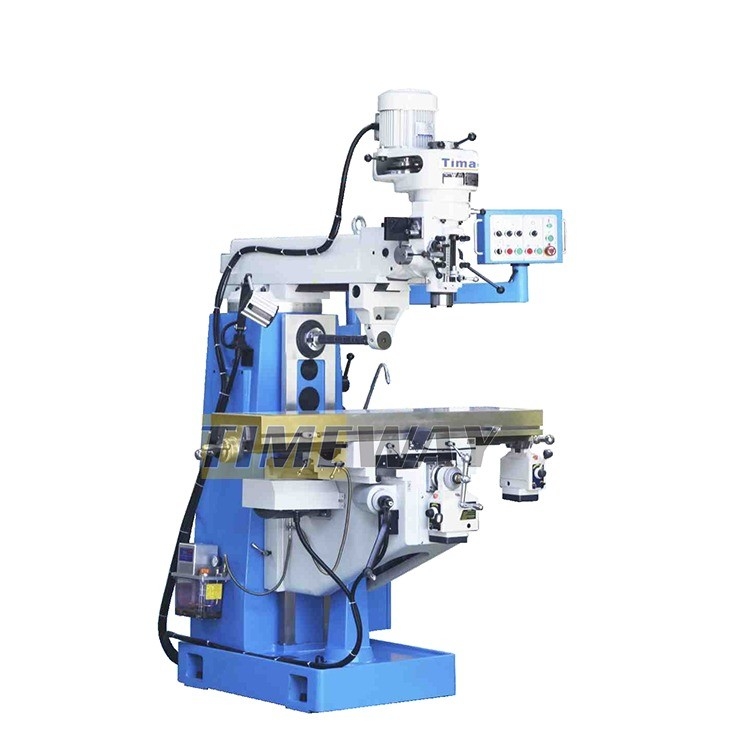

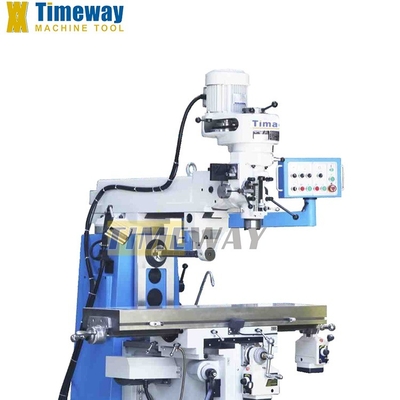

Universal Turret Milling Machine
Specification
Specification | Unit | TM300 | TM300A | |
Table size (WxL) | mm | 305x1370/305x1500 | 305x1370/305x1500 | |
Table longitudinal travel | mm | 880/1000 | 880/1000 | |
Table cross travel | mm | 420 | 390 | |
Knee vertical travel | mm | 500 | 460 | |
Knee rapid feed speed | mm/min | 345 (optional) | 345 (optional) | |
Motor power | HP | 3HP (opt.: 5HP) | 3HP (opt.: 5HP) | |
Speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (opt.: variable speed) | ||
Taper | - | R8 (opt.: ISO30/40) | R8 (opt.: ISO30/40) | |
Quill travel | mm | 127 | 127 | |
Quill feed rate | mm/r | 0.04/0.08/0.15 | 0.04/0.08/0.15 | |
Swivel angle | ° | ±90° | ±90° | |
Tilting angle | ° | ±45° | ±45° | |
Distance spindle end to table | mm | 0-535 | 30-490 | |
Motor power | HP | 5HP | 5HP | |
Speed | rpm | 12steps: 40/57/77/110/150/215/240/340/460/650/900/1280 | ||
Taper | - | ISO40 | ISO40 | |
Distance spindle center to table | mm | -50-410 | -1 35-355 | |
Distance spindle center to ram | mm | 185 | 185 | |
Ram cross travel | mm | 500 | 500 | |
Ram swivel angle | ° | 180° | 180° | |
Worktable swivel angle | ° | - | ±35° | |
Net weight | kg | 1640/1680 | 1640/1680 | |
Packing size (LxWxH) One | mm | 160x170x220 | 160x170x220 | |
Packing size (LxWxH) Two | mm | 170x220x220 | 170x220x220 | |
Accessories
Standard accessories:
· 3HP/16steps milling head

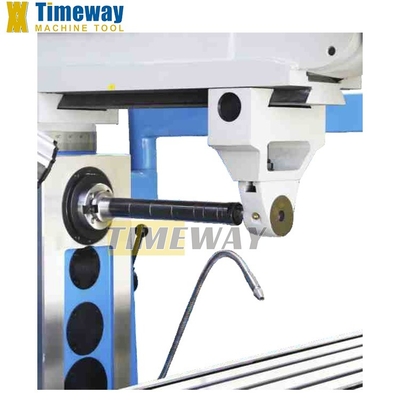

· 5HP/12steps H spindle
· Draw bar of V spindle & H spindle
· Working lamp
· Tools shank of H spindle
· Cooling pump
· Handle lubricant pump
· Z-axis elevating motor(only for TM300,TM300A)
· Operating tools and tool box
· Operation manual
· 5HP/12steps H spindle
· Draw bar of V spindle & H spindle
· Working lamp
· Tools shank of H spindle
· Cooling pump
· Handle lubricant pump
· Z-axis elevating motor(only for TM300,TM300A)
· Operating tools and tool box
· Operation manual
Optional accessories:
· 5HP/16steps milling head
· Variable speed milling head
· Rotating table (±35º) (TM250A, TM300A)
· X/Y/Z-axis DRO
· Alloy luxury hung up control panel
· X/Y-axis power feed
· X/Y-axis gearbox power feed
· X/Y-axis ball-screw
· Z-axis elevating motor (only for TM250,TM250A)
· R8 collets
· NT40 collets
· 6” machine vise
· 52pc clamping kits
· Air draw bar
· Electric oil pump
· Variable speed milling head
· Rotating table (±35º) (TM250A, TM300A)
· X/Y/Z-axis DRO
· Alloy luxury hung up control panel
· X/Y-axis power feed
· X/Y-axis gearbox power feed
· X/Y-axis ball-screw
· Z-axis elevating motor (only for TM250,TM250A)
· R8 collets
· NT40 collets
· 6” machine vise
· 52pc clamping kits
· Air draw bar
· Electric oil pump
