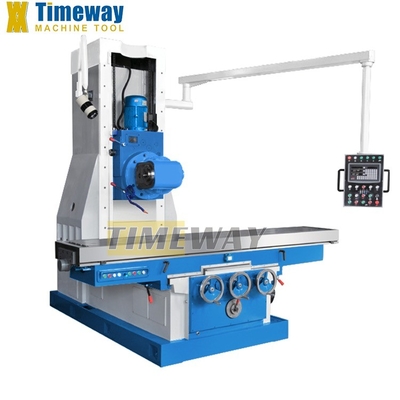

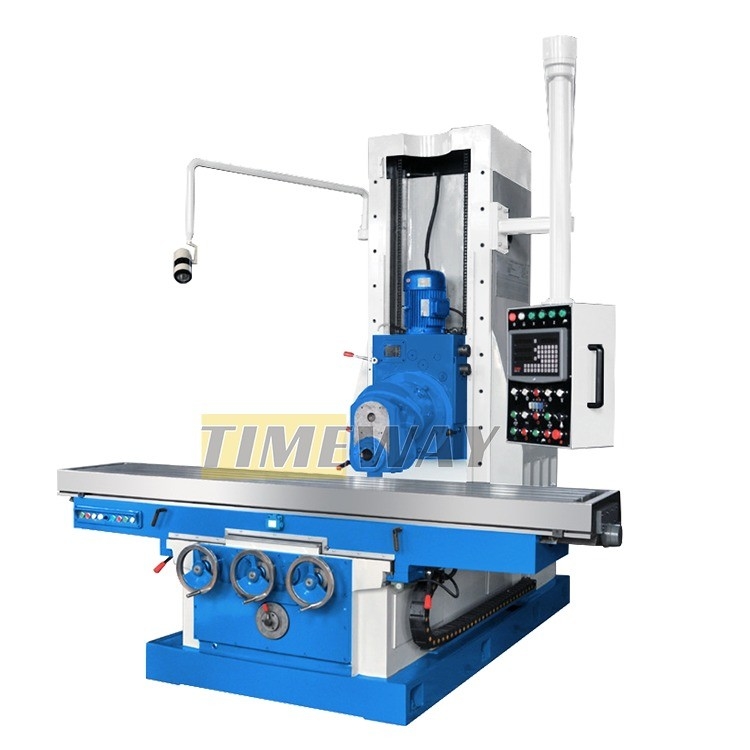

1090mm Table Travel Z Bed Type Milling Machine for Competitive Market
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | BM718 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $42,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2500 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 820 | Table Travel (Z) (mm): | 1090 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 36 - 1340 R.p.m |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Dimension(L*W*H): | 3020*3000*3000mm | Weight (KG): | 10000 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Bed Type Milling Machine | Machine Type: | Manual Milling Machine |
| CNC Or Not: | Normal Milling Machine | Model: | BM718 |
| Color: | Cusomer Request | Spindle Speed: | 36-1340rpm |
| Table Size: | 700*2800mm | Main Motor Power: | 7.5kw |
| Cross Travel: | 820mm | After-sales Service Provided: | 1 Year |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works | Showroom Location: | Algeria, Egypt, Canada, Pakistan |
| Core Components: | Motor, PLC, Gearbox | Port: | China Port |
Product Description
Product Description
Bed type milling machine
Specification
SPECIFICATIONS | UNIT | BM718 | BM7110 |
Table size | mm | 700x2800 | 500x2800 |
Longitudinal travel (X) | mm | 2500 | 2500 |
Cross travel (Y) | mm | 820 | 1020 |
Vertical travel (Z) | mm | 1090 | 1090 |
T slot (No./width/distance) | mm | 4/20/100 | 4/20/100 |
Loading capacity | kg | 5000 | 5000 |
Spindle taper | ISO50 | ISO50 | |
Spindle speed | rpm | 36-1340（12) | 36-1340(12) |
Distance from spindle axis to table | mm | 385-1540/0-1160 | 385-1540/0-1160 |
Distance from spindle axis to column | mm | 900 | 900 |
Distance from spindle nose to table | mm | 0-1090 | 0-1090 |
X/Y-axis feed speed | mm/min | 22.4-560 | 22.4-560 |
X/Y-axis rapid feed speed | mm/min | 1650 | 1650 |
Z-axis feed speed | mm/min | 11.2-280 | 11.2-280 |
Z-axis rapid feed speed | mm/min | 825 | 825 |
Main motor power | kw | 7.5 | 7.5 |
Machine weight | kg | 10000 | 9000 |
Machine dimensions (L×W×H) | mm | 3020x3000x3000 | 3020x3000x3000 |
Accessories
STANDARD ACCESSORIES:
Ÿ Draw bar
Ÿ Horizontal mill arbor
Ÿ Horizontal mill arbor holder
Ÿ Coolant system
Ÿ Chip tray
Ÿ Work lamp
Ÿ Lubrication system
Ÿ Tools and Tool box
Ÿ Operator manual
Ÿ Horizontal mill arbor
Ÿ Horizontal mill arbor holder
Ÿ Coolant system
Ÿ Chip tray
Ÿ Work lamp
Ÿ Lubrication system
Ÿ Tools and Tool box
Ÿ Operator manual
OPTIONAL ACCESSORIES:
Ÿ 2/3-axis digital readout
Ÿ 58pcs clamping kit
Ÿ Machine vise
Ÿ Spindle protection guard
Ÿ Table protection guard
Ÿ Dividing head
Ÿ Rotary table
Ÿ Reducing sleeve
Ÿ 58pcs clamping kit
Ÿ Machine vise
Ÿ Spindle protection guard
Ÿ Table protection guard
Ÿ Dividing head
Ÿ Rotary table
Ÿ Reducing sleeve
