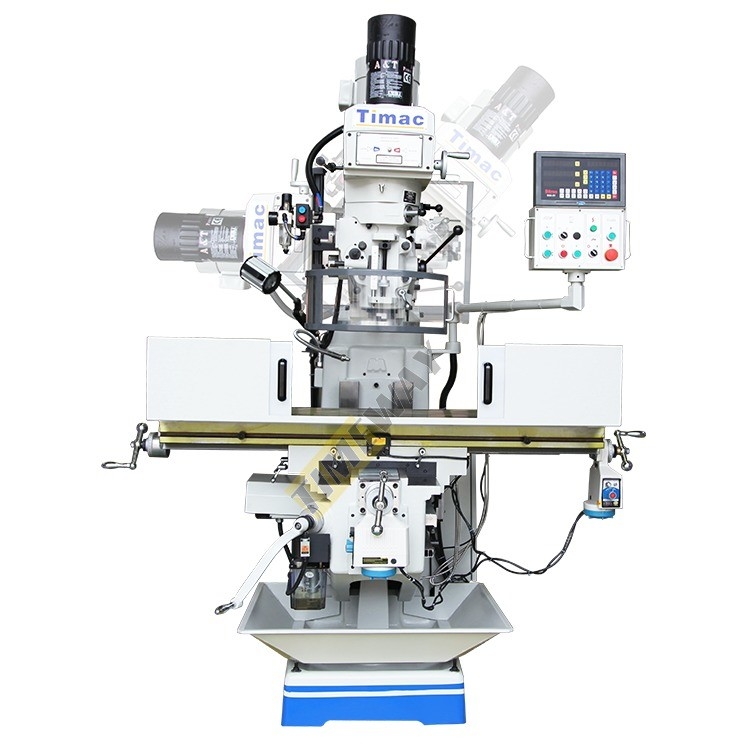

Metal Milling Function Universal Turret Milling Machine with ISO50 Spindle Taper
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | M330 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,850.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 380 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 870 | Table Travel (Z) (mm): | 430 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 3.7 |
| Voltage: | Optional | Dimension(L*W*H): | 1800*2020*2200mm |
| Weight (KG): | 2300 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Universal Milling Machine |
| Machine Type: | Milling Machine Vertical Universal | Product Name: | Metal Milling Machine |
| Keyword: | Milling Machine Manual | Function: | Metal Milling |
| Application: | Metal Machining | Precision: | High Precision Universal Milling Machine |
| Color: | Opitional | Processing: | Mechanical Processing |
| CNC Or Not: | Normal Lifting Table Milling Machine | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Home Use, Retail |
| Showroom Location: | Kenya, Argentina, Sri Lanka | Core Components: | Bearing, Motor, Pump |
| Table Travel (mm): | 820 | Year: | 2023 |
| Port: | China Port | ||
Product Description
Product Description
Turret Milling Machine
Key Features:
• Hardened and ground table surface;

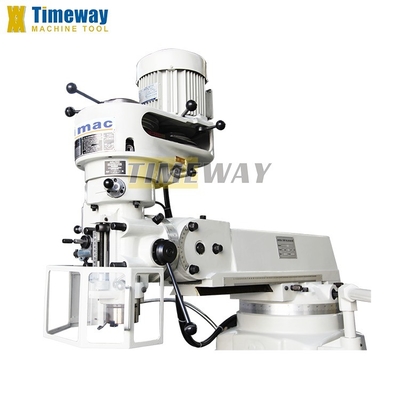

• Universal mill head can be tilted and swiveled;

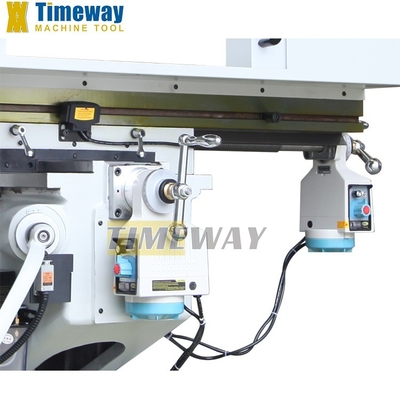

• Auto. splindle feeds with 3 steps on X, Y, Z axes;
• Spindle features micrometer depth stop;

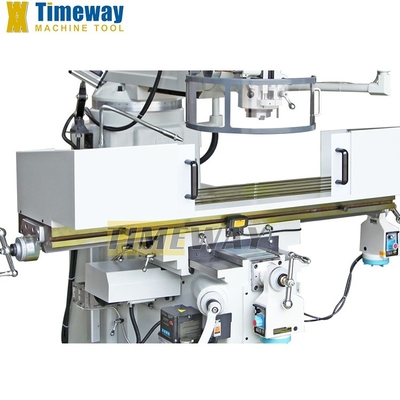

• Work table features large clamping area;
• Powerful coolant device included in machine base.
• Hardened and ground table surface;
• Universal mill head can be tilted and swiveled;
• Auto. splindle feeds with 3 steps on X, Y, Z axes;
• Spindle features micrometer depth stop;
• Work table features large clamping area;
• Powerful coolant device included in machine base.
Specification
Detail Images
Company Profile
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001
