1. Bed, columns and travel tracks form a solid cast-iron frame structure for high rigidity under hard machining conditions and high table loads.
2. The gantry construction is fully integrated into the machine frame for maximum rigidity.
3.The traverse height is adjustable, ensuring high rigidity even with flat workpieces, since the throat size can be minimized.
4. Rigid guides with ground surfaces support the table across the entire travel distance to ensure constant high geometric accuracy.
5. Infinitely variable feed on X.
6. Main spindle gears with 6 steps for vertical and horizontal operation.
7. Including weight balancing system for easy movement and precise positioning of the horizontal spindle head.

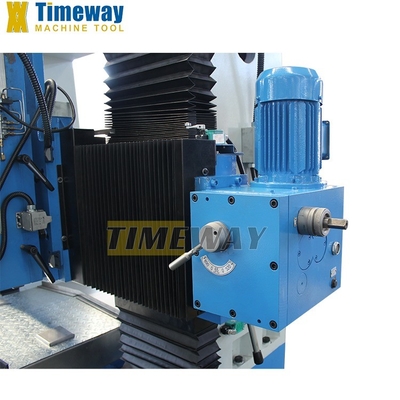

8. All guideways are protected by telescoping covers or bellows.

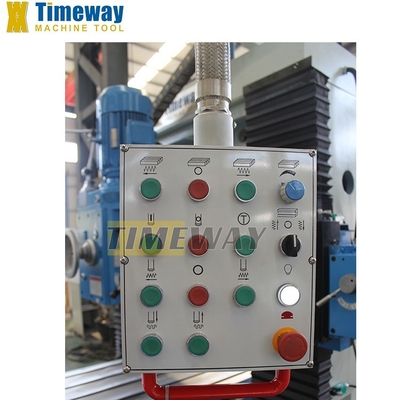

9. The control panel is mounted on a long arm, giving the user maximum positioning flexibility.
10. Automatic central lubrication is included.
 |
Manufacture of Double Column Milling Machine for Automatic CNC Gantry Machining Center
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | GM1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $82,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1250 | Table Travel (Z) (mm): | 2000 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 82 - 505 R.p.m |
| Type: | Gantry | Spindle Motor Power(kW): | 7.5 |
| Dimension(L*W*H): | 5000*3550*2950mm | Weight (KG): | 10000 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Gantry Type Milling Machine | Machine Type: | Manual Milling Machine |
| CNC Or Not: | Normal Milling Machine | Model: | GM1250 |
| Color: | Cusomer Request | Table Size: | 2000*1250mm |
| Spindle Speed: | 82-505rpm | Main Motor Power: | 7.5kw |
| After-sales Service Provided: | 1 Year | Cross Travel: | 1250mm |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Uzbekistan, Viet Nam, Saudi Arabia, Pakistan, Russia |
| Core Components: | Bearing, Motor, Pump, Gear, Engine, Gearbox | Port: | China Port |
Product Description
Product Description

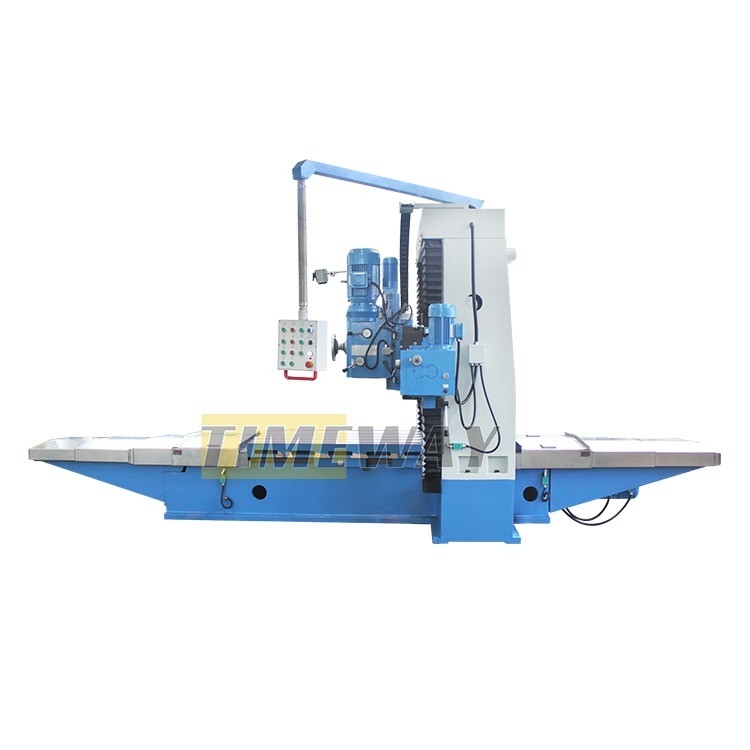

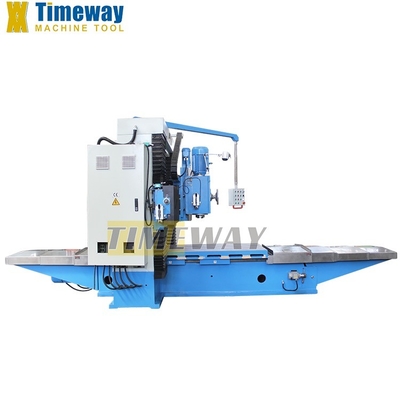

Gantry Type Milling Machine
Features:
Specification
Specification | Unit | GM1250 |
Table size (length) | mm | 2000/3000/4000 |
Table size (width) | mm | 1250 |
Longitudinal travel | mm | 2000/3000/4000 |
Max. width of workpiece | mm | 1400 |
Max. height of workpiece | mm | 1000/1200 |
Distance between columns | mm | 1600 |
Table feed speed | mm/min | 25-450 |
Table rapid feed speed | mm/min | 1300 |
Mill head swivel angle | ° | ±35° |
Vertical mill head feed speed | mm/min | 65/320/890 |
Side mill head feed speed | mm/min | 50/265/730 |
Table feed motor power | kw | 5.5/7.5/7.5 |
Machine width | mm | 3550 |
Machine height | mm | 2950/3150 |
Accessories
Standard accessories:
· Milling arbor
· Draw bar
· Work lamp
· Oil gun
· Tools & tool-box
· Leveling bolts & wedges
· Operation manual
· Draw bar
· Work lamp
· Oil gun
· Tools & tool-box
· Leveling bolts & wedges
· Operation manual
Optional accessories:
*2/3 axis digital readout
* Milling chuck
* ISO50 Rotary table
* Tilting rotary table
* Dividing head
* ISO50 Rotary table
* Tilting rotary table
* Dividing head
