Turret Milling Machine M230A with 0.038/0.076/0.152mm/r Spindle Quill Automatic Feed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | M230A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 670/850 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 310 | Table Travel (Z) (mm): | 390 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Voltage: | 220V/380V | Dimension(L*W*H): | 1400x1476x2030 |
| Weight (KG): | 1000 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 230x1067/230x1246mm |
| Longitudinal Travel(X): | 670/850mm | Cross Travel(Y): | 310mm |
| Vertical Travel(Z): | 390mm | Ram Travel: | 315mm |
| Distance From Spindle To Table: | 0-350mm | Spindle Quill Travel: | 127mm |
| Spindle Speed: | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) | Spindle Quill Automatic Feed: | 0.038/0.076/0.152mm/r |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Garment Shops, Retail | Showroom Location: | Germany, Russia |
| Core Components: | Bearing, Motor, Engine | Year: | 2022 |
| Port: | China Port | ||
Product Description
Product Description

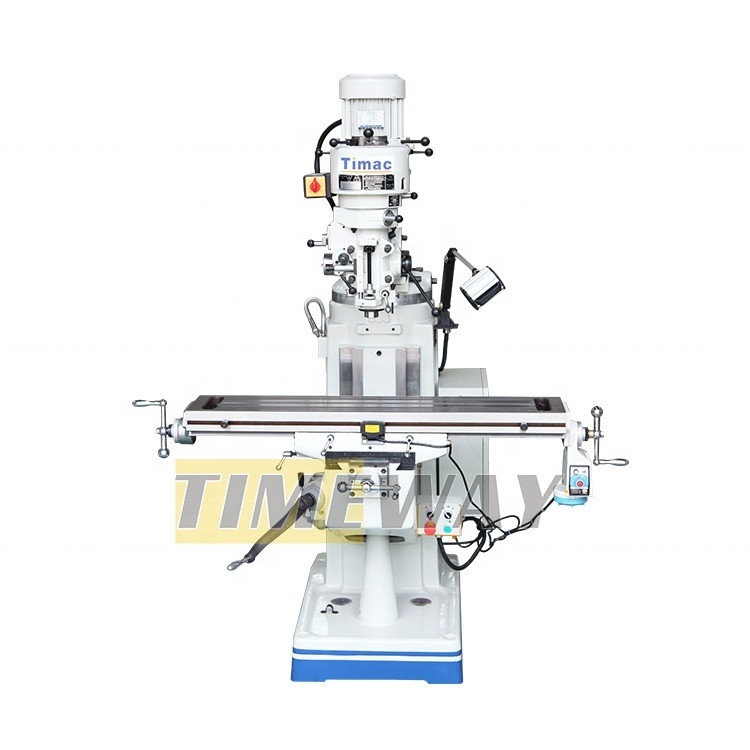

Turret Milling Machine M230A
Specification
Specification | Unit | M230A | ||
Table size | mm | 230x1067/230x1246 | ||
Longitudinal travel (X) | mm | 670/850 | ||
Cross travel (Y) | mm | 310 | ||
Vertical travel (Z) | mm | 390 | ||
T-slot (No./width) | mm | 3/16 | ||
Ram travel | mm | 315 | ||
Distance from spindle to table | mm | 0-350 | ||
Spindle taper | - | R8 (Optional : ISO30/ISO40) | ||
Spindle quill travel | mm | 127 | ||
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) | ||
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 | ||
Main motor power | kw | 2.2 | ||

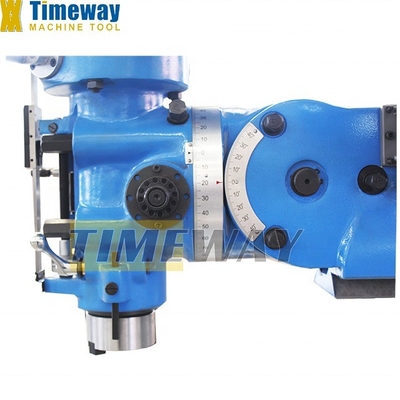

Mill head swivel angle | ° | ±90° | ||
Mill head tilting angle | ° | ±45° | ||
Dimension of package | One | mm | 1400x1476x2030 | |
Two | mm | 1450x1570x2080 | ||
Three | mm | 1450x2180x2080 | ||
Gross weight (One) | kg | 1000 | ||
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Positive Comments From Customers
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Exhibition&Training
This is when we hold an exhibition abroad, and customers come to the exhibition to visit our machines.
Certifications
This is the certificate we obtained. We will continue to work hard to make the machine better.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
