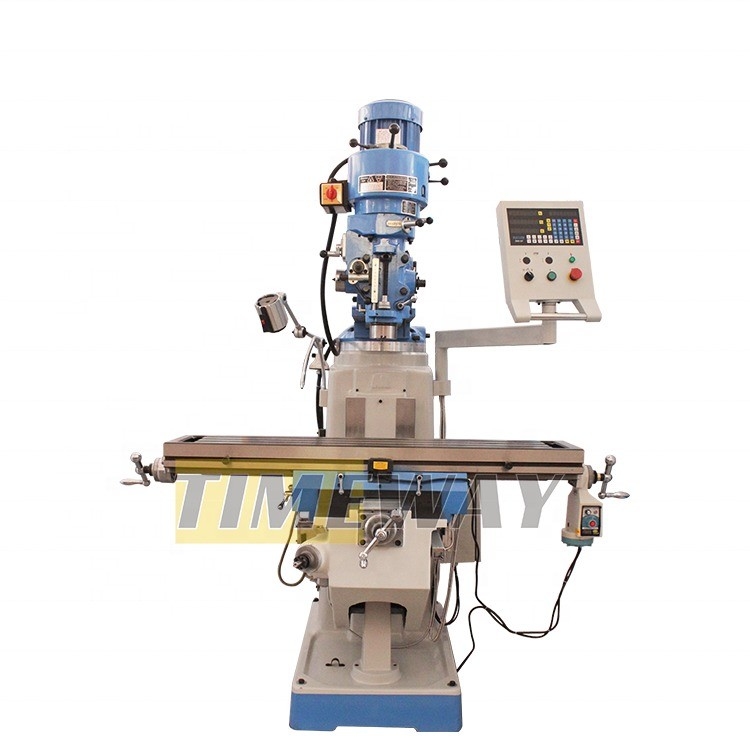

Light Duty Turret Milling Machine M250B with Range of Spindle Speed 65-4500 r.p.m
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | M250B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 820 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 380 | Table Travel (Z) (mm): | 350 |
| Spindle Taper: | M.T.4/ R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Weight (KG): | 1300 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 254x1270/254x1370mm |
| Longitudinal Travel (X): | 800/900mm | Cross Travel (Y): | 380mm |
| Vertical Travel (Z): | 350mm | T-slot No. And Size: | 3 X 16mm |
| Ram Travel: | 470mm | Distance From Spindle To Table: | 0-400mm |
| Spindle Taper: | R8 (Optional : ISO30/ISO40) | Spindle Quill Travel: | 127mm |
| Spindle Speed: | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works |
| Showroom Location: | Algeria, Egypt, Canada | Core Components: | Motor, PLC, Gearbox |
| Port: | China Port | ||
Product Description
Product Description
Universal Milling Machine
Specification
Specifications | Unit | M250A | M250B | M250 | ||||
Table size | mm | 254x1270/254x1370 | 254x1270/254x1370 | 254x1270/254x1370 | ||||
Longitudinal travel (X) | mm | 800/900 | 800/900 | 820/920 | ||||
Cross travel (Y) | mm | 380 | 380 | 410 | ||||
Vertical travel (Z) | mm | 350 | 350 | 400 | ||||
T-slot No. and size | mm | 3 x 16 | 3 x 16 | 3 x 16 | ||||
Ram travel | mm | 470 | 470 | 470 | ||||
Distance from spindle to table | mm | 0-400 | 0-400 | 0-400 | ||||
Spindle taper | - | R8 (Optional : ISO30/ISO40) | R8 (Optional : ISO30/ISO40) | R8 (Optional : ISO30/ISO40) | ||||
Spindle quill travel | mm | 127 | 127 | 127 | ||||
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) | ||||||
Spindle quill automatic feed | mm/r | 0.04/ 0.08/0.15 | 0.04/ 0.08/0.15 | 0.04/ 0.08/0.15 | ||||
Main motor power | kw | 2.2 | 2.2 | 2.2 | ||||
Mill head swivel angle | ° | ±90° | ±90° | ±90° | ||||
Mill head tilting angle | ° | ±45° | ±45° | ±45° | ||||
X/Y/Z-axis guide type | - | ▲▲▲ | ▲■▲ | ▲■■ | ||||
Dimension of package | One | mm | 1516x1550x2080 | 1516x1550x2080 | 1516x1550x2080 | |||
Two | mm | 1650x1790x2170 | 1650x1790x2170 | 1650x1790x2170 | ||||
Three | mm | 1650x2285x2235 | 1650x2285x2235 | 1650x2285x2235 | ||||
Gross weight | kg | 1280 | 1320 | 1320 | ||||
Accessories
Standard accessories：
* 3-axis DRO
* Step pulley mill head
* Draw bar
* Working light
* Hand oil Pump
* Cooling system
* Oil collecting plate
* Plastic splash guard
* Tool & tool box
* Operator manual
* Step pulley mill head
* Draw bar
* Working light
* Hand oil Pump
* Cooling system
* Oil collecting plate
* Plastic splash guard
* Tool & tool box
* Operator manual
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Positive Comments From Customers
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Company Introduction
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
