Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
 |
Max. Load of Table 2000kg BM715 High Precision Bed Type Milling Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 650 | Table Travel (Z) (mm): | 650 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 6 - 1500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 11 |
| Dimension(L*W*H): | 3220*2420*2800 | Weight (KG): | 7300 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Table Size: | 2100x500 Mm | T Slot Number/width/distance: | 4-20-100 Mm |
| Max. Load Of Table: | 2000kg | Longitudinal Travel (X-axis): | 1500mm |
| Cross Travel (Y-axis): | 670mm | Vertical Travel (Z-axis): | 670mm |
| Machine Dimension: | 2280x2280x2820 | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Energy & Mining |
| Showroom Location: | Viet Nam, Russia | Core Components: | Bearing, Motor, Pump |
| Port: | China Port | ||
Product Description
Product Description

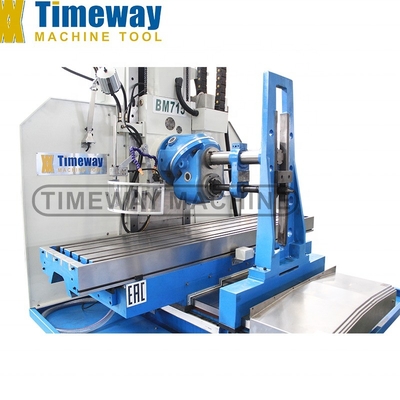

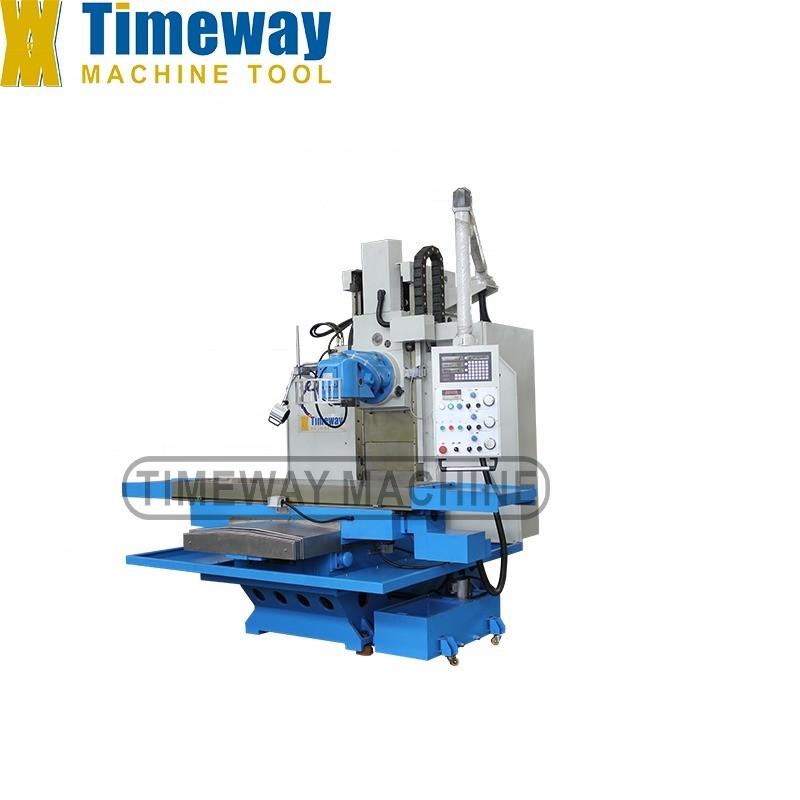

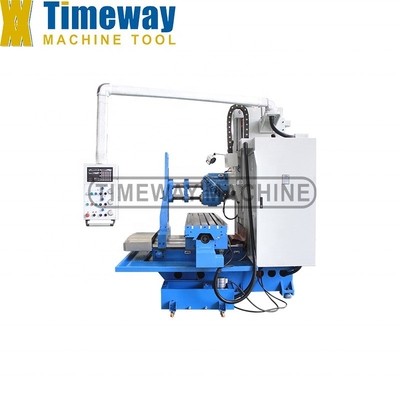

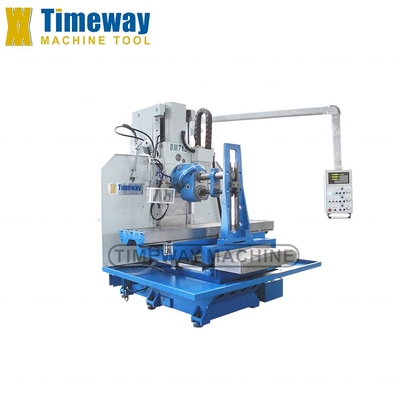

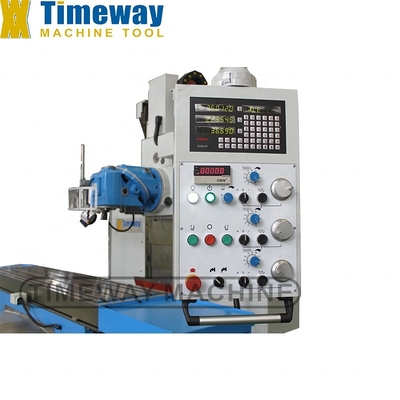

Bed type Milling Machine BM715
Specification
SPECIFICATION | UNIT | BM715 |
Table size | mm | 2100x500 |
T slot number/width/distance | mm | 4-20-100 |
Max. load of Table | kg | 2000 |
Longitudinal travel (X-axis) | mm | 1500 |
Cross travel (Y-axis) | mm | 670 |
Vertical travel (Z-axis) | mm | 670 |
Machine dimension | mm | 2280x2280x2820 |
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Positive Comments From Customers
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Company Introduction
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
