GM1000 Gantry Type Milling Machine for Heavy-Duty Industrial Machining at 82 505 r.p.m
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | GM1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $75,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1000 | Table Travel (Z) (mm): | 2000 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 82 - 505 R.p.m |
| Type: | Gantry | Spindle Motor Power(kW): | 7.5 |
| Dimension(L*W*H): | 4000/6000x3000x2300 | Weight (KG): | 4000 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Table Size (length): | 2000/3000/4000mm | Table Size (width): | 1000mm |
| Longitudinal Travel: | 2000/3000/4000mm | Max. Width Of Workpiece: | 1300mm |
| Max. Height Of Workpiece: | 1000mm | Distance Between Columns: | 1440mm |
| Table Feed Speed: | 20-360mm/min | Table Rapid Feed Speed: | 1050mm/min |
| Mill Head Swivel Angle: | ±35° | Vertical Mill Head Feed Speed: | 65/320/890mm/min |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Energy & Mining | Showroom Location: | Viet Nam, Russia |
| Core Components: | Bearing, Motor, Pump | Port: | China Port |
Product Description
Product Description

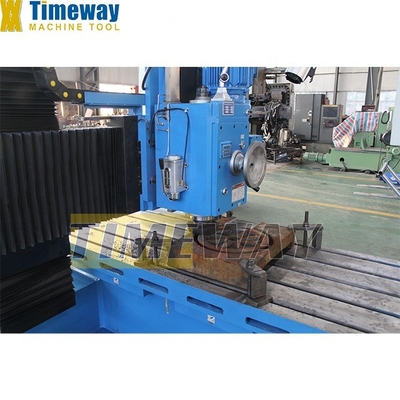

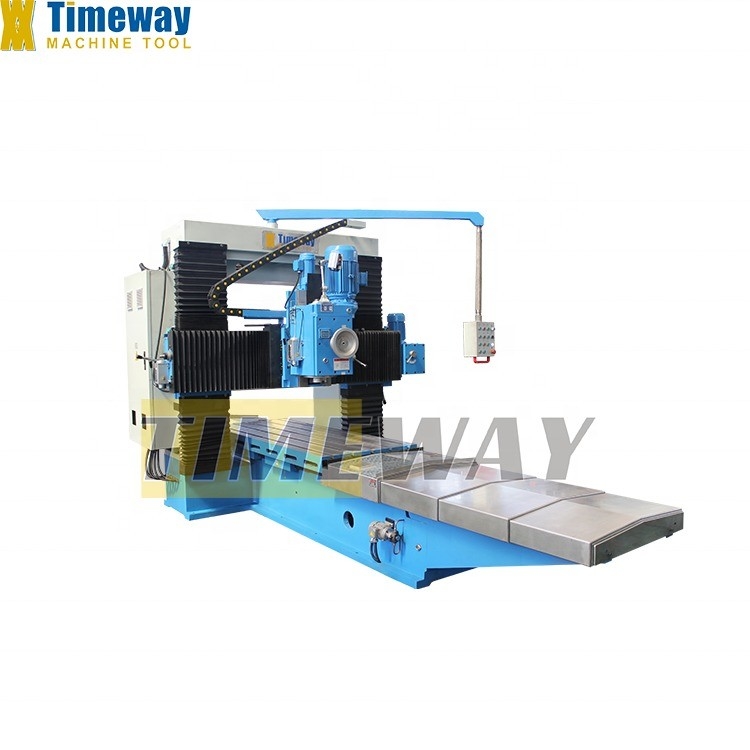

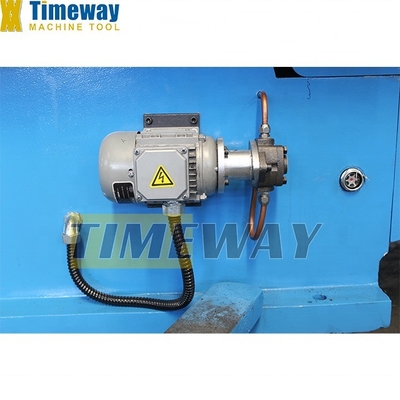

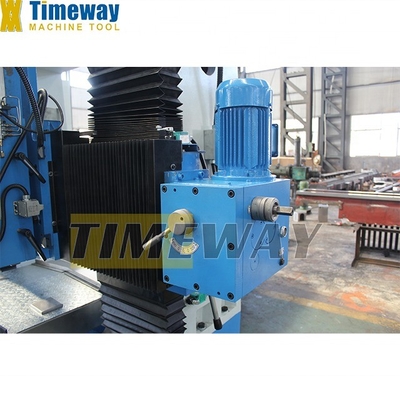

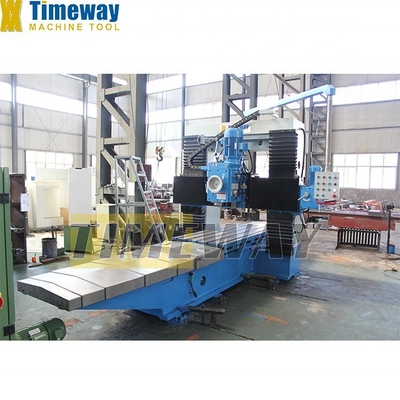

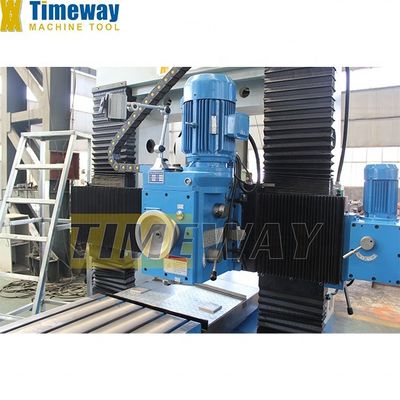

gantry milling machine
Specification
Specification | Unit | GM1000 |
Table size (length) | mm | 2000/3000/4000 |
Table size (width) | mm | 1000 |
Longitudinal travel | mm | 2000/3000/4000 |
Max. width of workpiece | mm | 1300 |
Max. height of workpiece | mm | 1000 |
Distance between columns | mm | 1440 |
Table feed speed | mm/min | 20-360 |
Table rapid feed speed | mm/min | 1050 |
Mill head swivel angle | ° | ±35° |
Vertical mill head feed speed | mm/min | 65/320/890 |
Side mill head feed speed | mm/min | 50/265/730 |
Table feed motor power | kw | 4/5.5/7.5 |
Machine length | mm | 4550/7000/9000 |
Machine width | mm | 3200 |
Machine height | mm | 2550 |
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Positive Comments From Customers
This picture is the customer's favorable feedback to us. A picture can't mean anything, but we insist on the quality of the machine, we believe that repeat customers will be more and more.
Company Introduction
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
