2023 Various Speed Horizontal Universal Bed Type Metal Milling Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | BM718 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,600.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2500 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 820 | Table Travel (Z) (mm): | 1090 |
| Spindle Taper: | BT40 | Range Of Spindle Speed(r.p.m): | 36 - 1340 R.p.m |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Dimension(L*W*H): | 3020x3000x3000 | Weight (KG): | 10000 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Universal Milling Machine | Machine Type: | Universal Horizontal |
| Product Name: | Metal Milling Machine | Keyword: | Milling Machine Manual |
| Application: | Metal Working Milling Machine | Function: | Machining Metal |
| Precision: | High Speed Precison | Processing: | Milling Machne |
| Color: | Opitional | Spindle Speed: | 1340rpm |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Energy & Mining | Showroom Location: | Viet Nam, Russia |
| Core Components: | Bearing, Motor, Pump, Gear | Year: | 2023 |
| Port: | China Port | ||
Product Description
Product Description

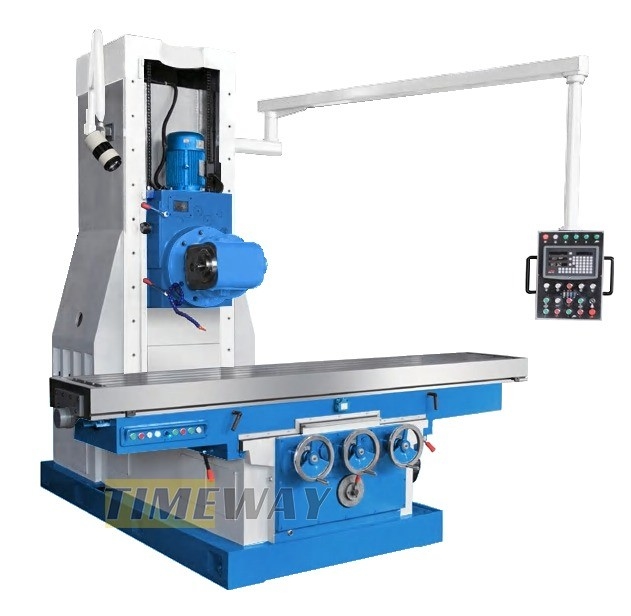

Bed-type Milling Machine
Specification
SPECIFICATIONS | UNIT | BM718 | BM7110 |
Table size | mm | 700x2800 | 500x2800 |
Longitudinal travel (X) | mm | 2500 | 2500 |
Cross travel (Y) | mm | 820 | 1020 |
Vertical travel (Z) | mm | 1090 | 1090 |
T slot (No./width/distance) | mm | 4/20/100 | 4/20/100 |
Loading capacity | kg | 5000 | 5000 |
Spindle taper | ISO50 | ISO50 | |
Spindle speed | rpm | 36-1340（12) | 36-1340(12) |
Distance from spindle axis to table | mm | 385-1540/0-1160 | 385-1540/0-1160 |
Distance from spindle axis to column | mm | 900 | 900 |
Distance from spindle nose to table | mm | 0-1090 | 0-1090 |
X/Y-axis feed speed | mm/min | 22.4-560 | 22.4-560 |
X/Y-axis rapid feed speed | mm/min | 1650 | 1650 |
Z-axis feed speed | mm/min | 11.2-280 | 11.2-280 |
Z-axis rapid feed speed | mm/min | 825 | 825 |
Main motor power | kw | 7.5 | 7.5 |
Machine weight | kg | 10000 | 9000 |
Machine dimensions (L×W×H) | mm | 3020x3000x3000 | 3020x3000x3000 |
