Upgrade Your Metal Processing with M250D Turret Milling Machine Table Travel Z mm 400
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | M250D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,200.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | Range Of Spindle Speed(r.p.m): | 65 - 4500 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | ISO40 |
| Table Travel (X) (mm): | 820/920 | Table Travel (Y) (mm): | 410 |
| Table Travel (Z) (mm): | 400 | Positioning Accuracy (mm): | ±0.005 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Voltage: | 220V/380V |
| Key Selling Points: | Multifunctional | Weight (KG): | 1490 |
| Warranty: | 1 Year | Max. Table Load(kg): | 550 Kg |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Product Name: | Milling Machine |
| Machine Type: | Table Moving | After-sales Service Provided: | Service Machinery Overseas |
| Name: | Vertical Metal Machine | Keyword: | China Milling Machine |
| Application: | Metal Machining | Function: | Machining Metal |
| Precision: | High Precision | Usage: | Processing Machine |
| Condition: | New | Showroom Location: | Egypt, Canada, Turkey, Italy, France, Viet Nam, Peru, Saudi Arabia, Russia, Spain, South Korea, Chile, Romania, Bangladesh, Nigeria, Uzbekistan |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Advertising Company, Other | Core Components: | Bearing, Motor, Gear, Gearbox, Other |
| Year: | 2023 | ||
Product Description
Products Description

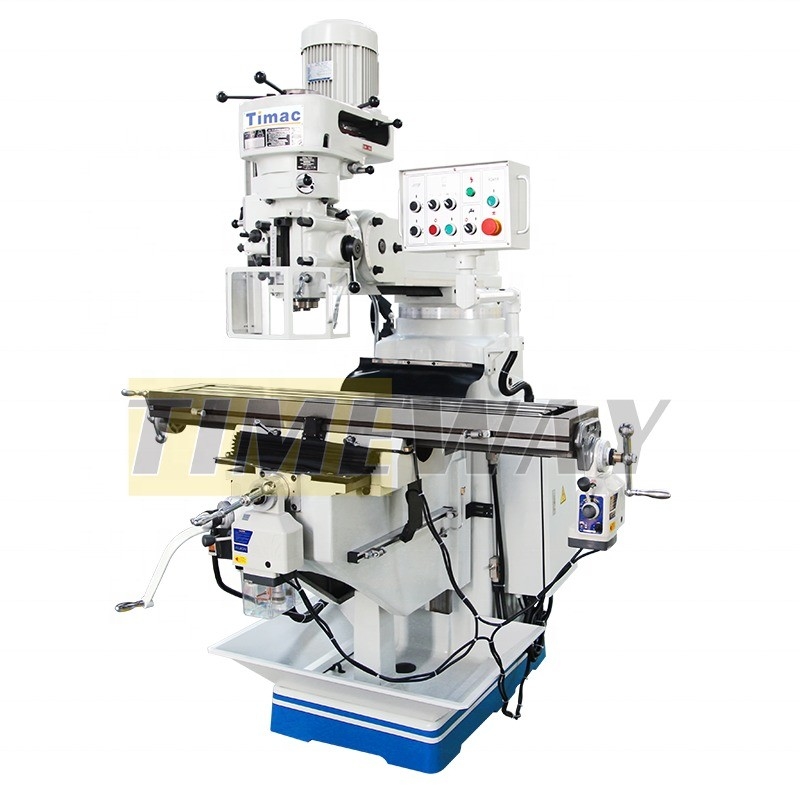

M250D
Turret Milling Machine:
Specification | Unit | M250C | ||
Table size | mm | 254x1270/254x1370 | ||
Longitudinal travel (X) | mm | 820/920 | ||
Cross travel (Y) | mm | 410 | ||
Vertical travel (Z) | mm | 400 | ||
T-slot (No./width) | mm | 3/16 | ||
Ram travel | mm | 470 | ||
Distance from spindle to table | mm | 0-400 | ||
Spindle taper | - | ISO40 | ||
Spindle quill travel | mm | 127 | ||
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 65-3750) | ||
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 | ||
Main motor power | kw | 3.7 | ||
Mill head swivel angle | ° | ±90° | ||
Mill head tilting angle | ° | ±45° (Fix) | ||
X/Y/Z-axis guide type | - | ▲■■ | ||
Dimension of package | One | mm | 1516x1550x2080 | |
Two | mm | 1650x1790x2170 | ||
Gross weight (One) | kg | 1490 | ||
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
