Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
 |
High Precision Bed Type Milling Machine with Customized Option Table Travel X mm 1500
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | Range Of Spindle Speed(r.p.m): | 2.5 - 3000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | ISO50 |
| Table Travel (X) (mm): | 1500 | Table Travel (Y) (mm): | 650 |
| Table Travel (Z) (mm): | 100 | Positioning Accuracy (mm): | ±0.005 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Voltage: | 220V/380V |
| Key Selling Points: | Multifunctional | Weight (KG): | 7300 |
| Warranty: | 1 Year | Max. Table Load(kg): | 350 Kg |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Product Name: | Milling Machine |
| Machine Type: | Metal Milling Machine | After-sales Service Provided: | Online Support |
| Name: | 3 Axis Milling Machine | Keyword: | Fresadora |
| Usage: | Processing Machine | Precision: | High Precision |
| Processing: | Metal Vertical Milling Machine | Color: | Customized Option |
| Condition: | New | Showroom Location: | Egypt, Canada, Turkey, Italy, France, Viet Nam, Peru, Saudi Arabia, Russia, Spain, South Korea, Chile, Romania, Bangladesh, Nigeria, Uzbekistan |
| Year: | 2023 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining, Advertising Company, Other |
| Core Components: | Bearing, Motor, Gear, Gearbox, Other | Port: | China Port |
Product Description
Products Description

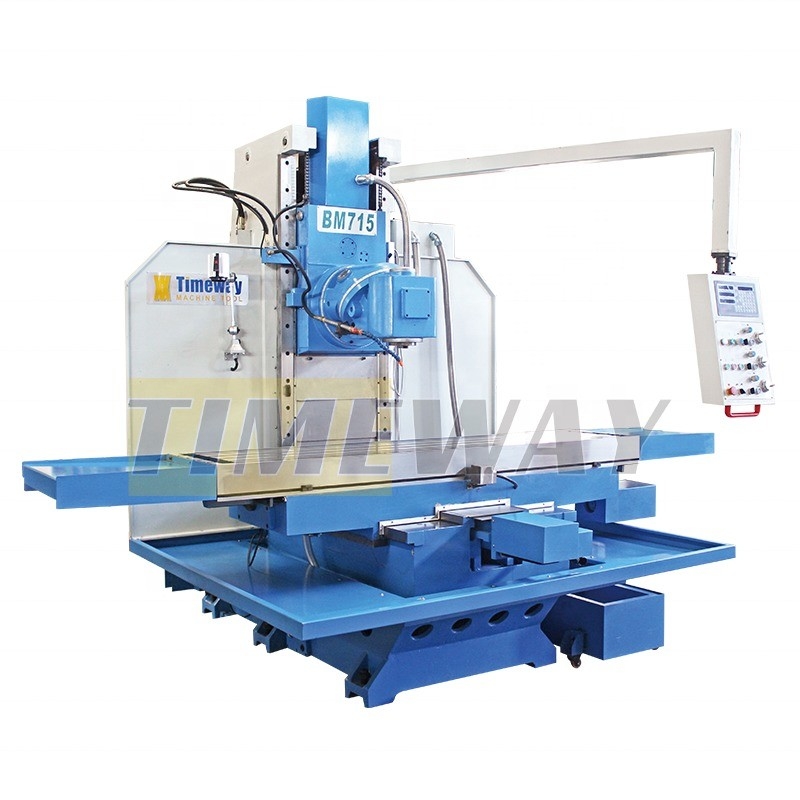

BM715
Bed Type Milling Machine:
Specification | BM715 |
Table Size | 2100 x 500mm |
Spindle Taper | ISO50 |
Longitudinal Travel (X-axis) | 1500mm |
Cross Travel (Y-axis) | 670mm |
Vertical Travel (Z-axis) | 670mm |
Type of Slides | Square (Y & Z) |
Spindle to Table | 670mm |
Throat Depth (max.) | 610mm |
Type Of Table Power Feed (X , Y & Z-axis) | Servo Drive |
Longitudinal & Cross Feed (X & Y-axis) | 20 ~ 1800mm/min |
Longitudinal & Cross Rapid (X & Y-axis) | 3700mm/min |
Vertical Feed (Z-axis) | 10 ~ 900mm/min |
Vertical Rapid (Z-axis) | 1750mm/min |
Table T-Slot Size | 20mm |
Work Table Load Capacity | 2000kg |
Spindle Speeds Vertical / Horizontal | 12 (35-1345rpm) |
Motor Power | 7.5kW / 10hp |
Floor Space Required | 4925 x 2380mm |
Overall Height | 2750mm |
Weight (net) | 7300kg |
Positive Comments From Customers
Company Introduction

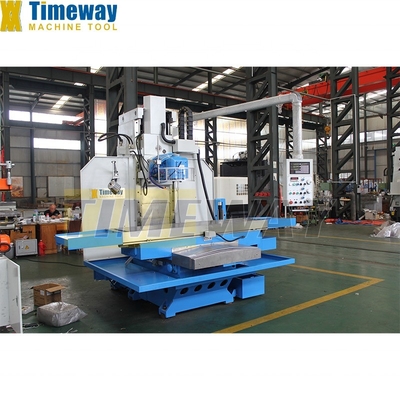

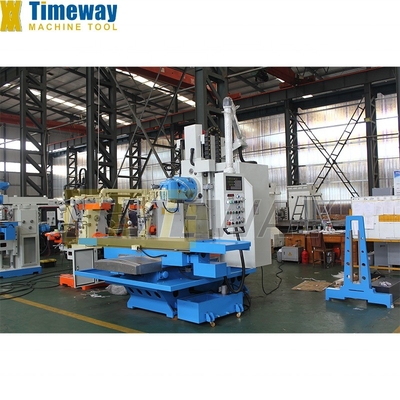

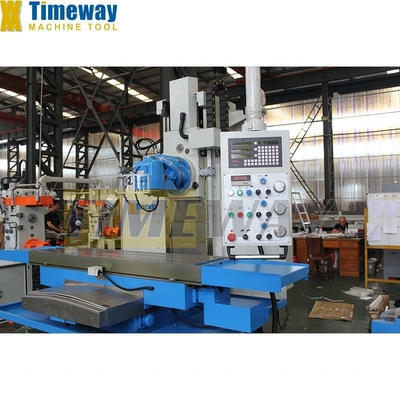

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
