Fresadora BM718 High Precision CNC Bed Milling Machine for Professional Machining
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | BM718 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $42,000.00/sets 1-2 sets |

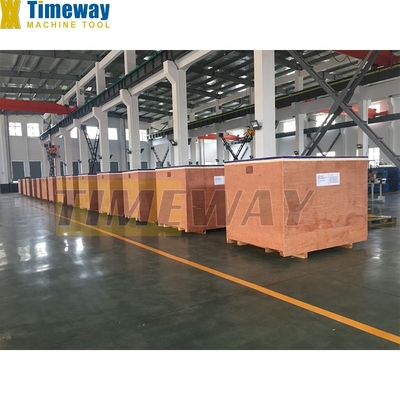

| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2500 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 820 | Table Travel (Z) (mm): | 1090 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 2.5 - 3000 R.p.m |
| Type: | Universal | Weight (KG): | 10000 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | New Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Product Name: | Milling Machine |
| Machine Type: | Metal Milling Machine | After-sales Service Provided: | Online Support |
| Name: | 3 Axis Milling Machine | Keyword: | Fresadora |
| Usage: | Processing Machine | Precision: | High Precision |
| Processing: | Metal Vertical Milling Machine | Color: | Customized Option |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works | Showroom Location: | Morocco, Kenya, Argentina, South Korea, Chile, UAE, Algeria, Japan, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Indonesia, Mexico |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Other, Gearbox | Port: | China Port |
Product Description
Products Description

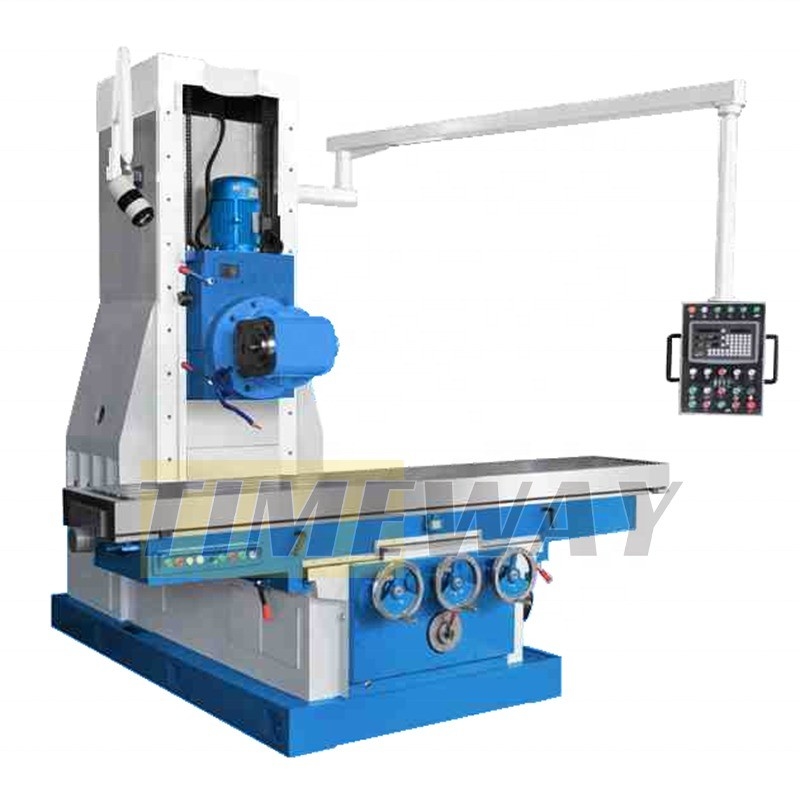

BM718
Bed Type Milling Machine:
SPECIFICATIONS | UNIT | BM718 |
Table size | mm | 700x2800 |
Longitudinal travel (X) | mm | 2500 |
Cross travel (Y) | mm | 820 |
Vertical travel (Z) | mm | 1090 |
T slot (No./width/distance) | mm | 4/20/100 |
Loading capacity | kg | 5000 |
Spindle taper | ISO50 | |
Spindle speed | rpm | 36-1340（12) |
Distance from spindle axis to table | mm | 385-1540/0-1160 |
Distance from spindle axis to column | mm | 900 |
Distance from spindle nose to table | mm | 0-1090 |
X/Y-axis feed speed | mm/min | 22.4-560 |
X/Y-axis rapid feed speed | mm/min | 1650 |
Z-axis feed speed | mm/min | 11.2-280 |
Z-axis rapid feed speed | mm/min | 825 |
Main motor power | kw | 7.5 |
Machine weight | kg | 10000 |
Machine dimensions (L×W×H) | mm | 3020x3000x3000 |
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
