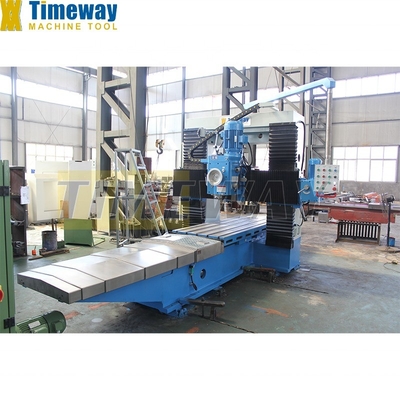

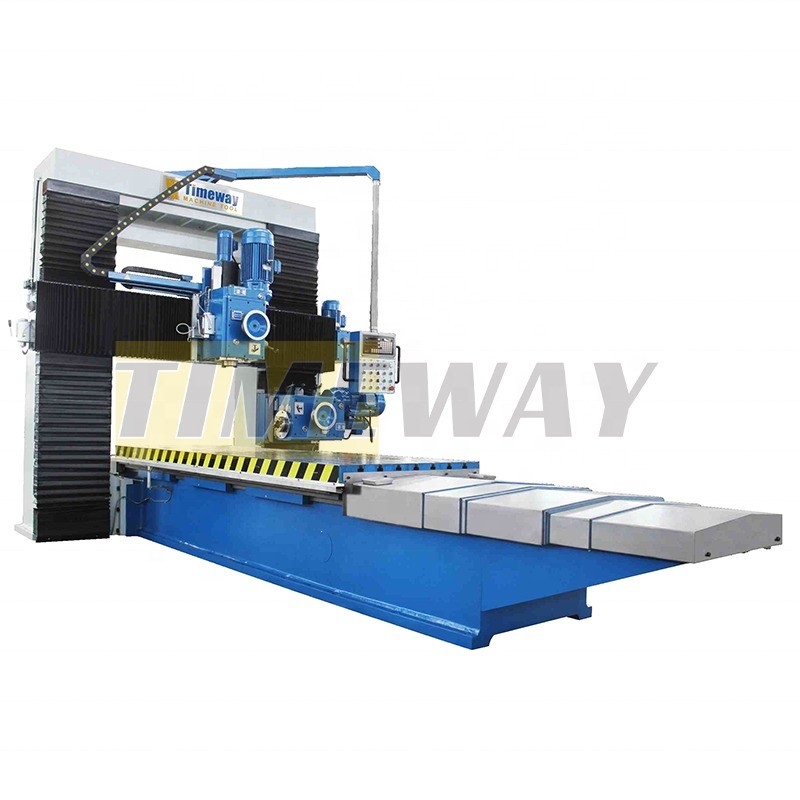

Gantry Milling Machine High Precision CNC Gantry Mill Multi-Axis Linkage CNC Milling
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | GM1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $75,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2000/3000/4000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1300 | Table Travel (Z) (mm): | 1000 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 82 - 505 R.p.m |
| Type: | Universal | Weight (KG): | 20000 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Marketing Type: | New Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Name: | Gantry Milling Machine |
| Machine Type: | Horizontal Milling | Product Name: | Metal Milling Machine |
| After-sales Service Provided: | Online Support | Function: | Milling Cutting |
| Application: | Metal Machining | Table Size: | 3000x800 |
| Color: | Opitional | Precision: | High Precision |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works | Showroom Location: | Morocco, Kenya, Argentina, South Korea, Chile, UAE, Algeria, Japan, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Indonesia, Mexico |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Other, Gearbox | Port: | China Port |
Product Description
Products Description
GM1000
Bed Type Milling Machine:
Specification | Unit | GM1000 |
Table size (length) | mm | 2000/3000/4000 |
Table size (width) | mm | 1000 |
Longitudinal travel | mm | 2000/3000/4000 |
Max. width of workpiece | mm | 1300 |
Max. height of workpiece | mm | 1000 |
Distance between columns | mm | 1440 |
Table feed speed | mm/min | 20-360 |
Table rapid feed speed | mm/min | 1050 |
Mill head swivel angle | 掳 | 卤35掳 |
Vertical mill head feed speed | mm/min | 65/320/890 |
Side mill head feed speed | mm/min | 50/265/730 |
Table feed motor power | kw | 4/5.5/7.5 |
Machine length | mm | 4550/7000/9000 |
Machine width | mm | 3200 |
Machine height | mm | 2550 |
Main motor power | kw | 7.5 |
Machine weight | kg | 10000 |
Machine dimensions (L×W×H) | mm | 3020x3000x3000 |
Positive Comments From Customers
Company Introduction

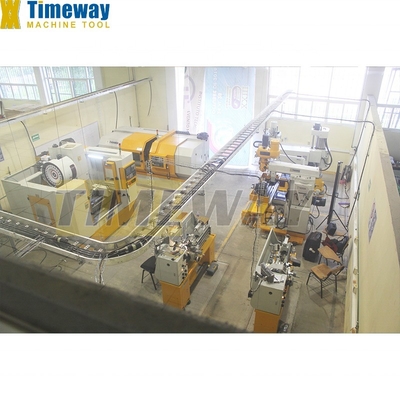

Factory Display：
