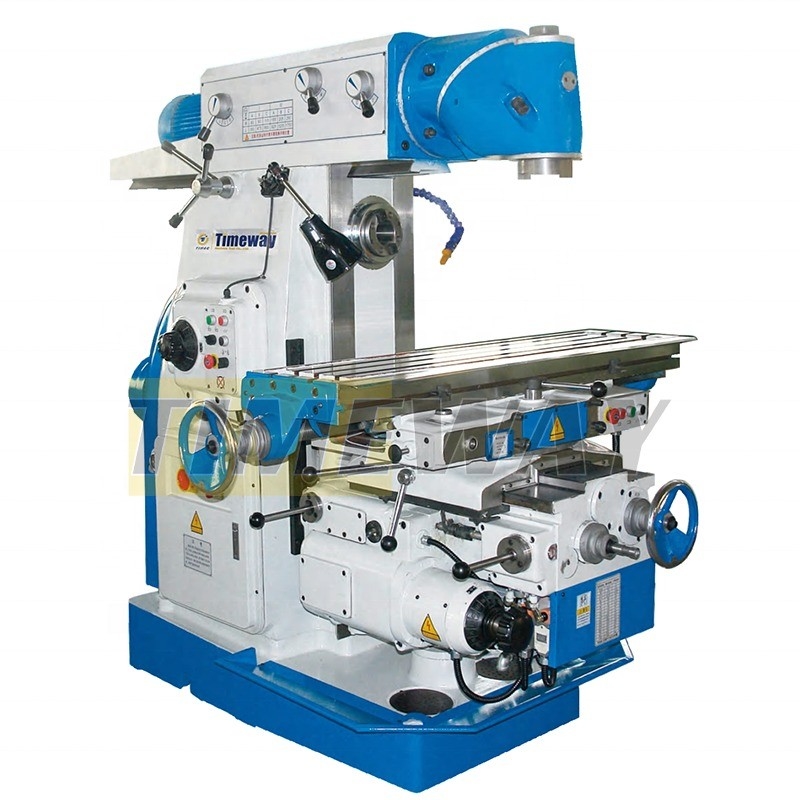

320x1325 Table Size Swivel Head Knee-type Milling Machine High Precision and One-step
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | US320H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,900.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 700 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 255 | Table Travel (Z) (mm): | 320 |
| Spindle Taper: | 7:24 ISO50 | Range Of Spindle Speed(r.p.m): | 320 - 2400 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 4 |
| Voltage: | 220/380 | Dimension(L*W*H): | 2294x1770x1780 |
| Weight (KG): | 2900 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | New Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Product Name: | Metal Milling Machine | After-sales Service Provided: | Online Support |
| Function: | Milling Cutting | Application: | Metal Machining |
| Table Size: | 320x1325 | Color: | Opitional |
| Precision: | High Precision | Usage: | Metal Parts Machining |
| Spindle Speed: | 60-1750 (12) RPM | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works |
| Showroom Location: | Morocco, Kenya, Argentina, South Korea, Chile, UAE, Algeria, Japan, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Indonesia, Mexico | Table Travel (mm): | 320x1325 |
| Year: | 2023 | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Other |
| Port: | China Port | ||
Product Description
Products Description
US320H
Swivel Head Knee-type Milling Machine:
Specification | Unit | US320H | ||
Worktable size | mm | 320x1325 | ||
T-slot(NxWxD) | mm | 3/18/70 | ||
Distance from vertical spindle nose to table | mm | 190-510 | ||
Longitudinal travel(X) | mm | 700 | ||
Cross travel(Y) | mm | 255 | ||
Vertical travel(Z) | mm | 320 | ||
X/Y/Z-axis rapid feed speed | mm/min | 2300/2300/770 | ||
Feed speed range(X) | mm/min | 23.5-1180 (18) | ||
Feed speed range(Y) | mm/min | 23.5-1180 (18) | ||
Feed speed range(Z) | mm/min | 8-394 (18) | ||

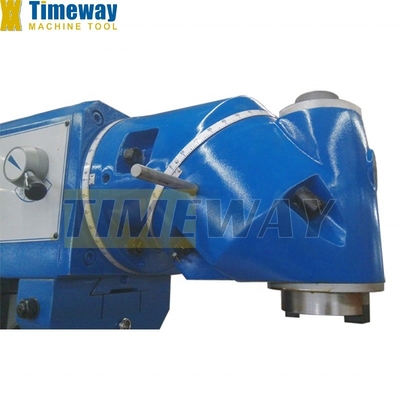

Mill head swivel angle | ° | 360 | ||
Worktable swivel angle | ° | 45 | ||
Main motor power | kw | 4 | ||
Dimensions (LxWxH) | mm | 2294x1770x1780 | ||
Machine Weight | kg | 2900 | ||
