Large machine bed, wide column, plus high intrinsic weight - Power package for machining of large parts and heavy-duty chip removal capacity.
1. An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.
2. Extra wide guideways ensure maximum stability and precision at high loads.
3. Extra long table travel distance (1500mm) and large table setup area (2100 x 500 mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
4. Wide spindle speed range from 40 to 1600 rpm.
5. Infinitely variable linear and cross feed.

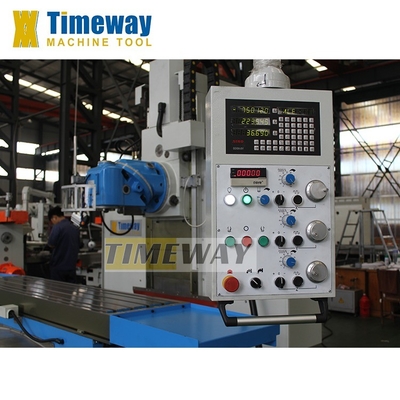

6. Control panel on a long extending arm that can be ideally positioned by the operator.
 |

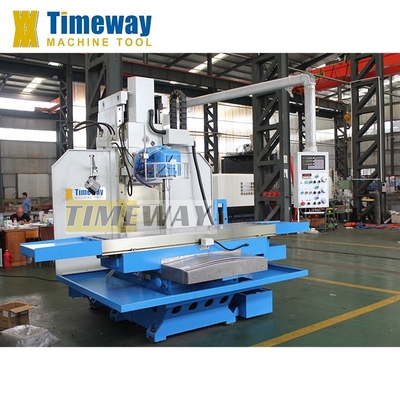

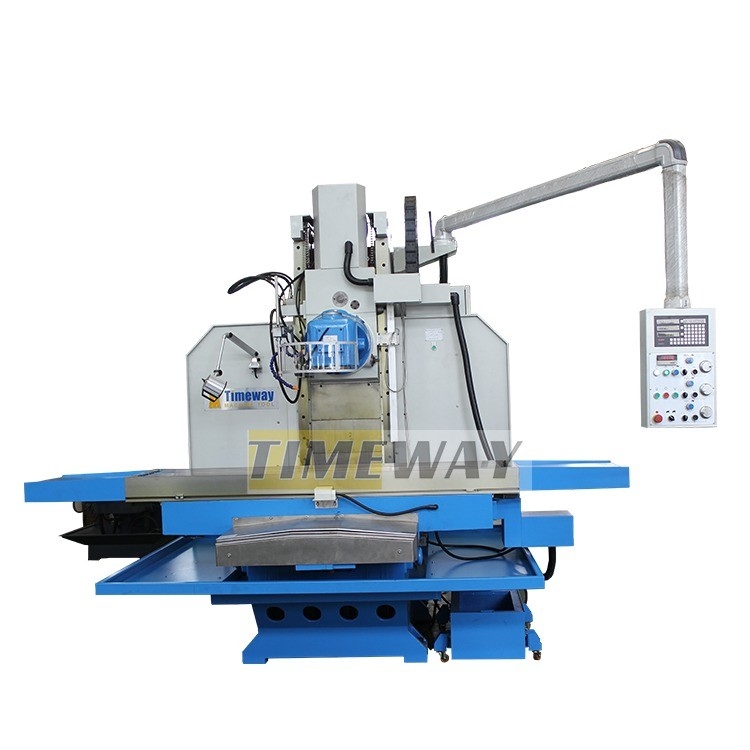

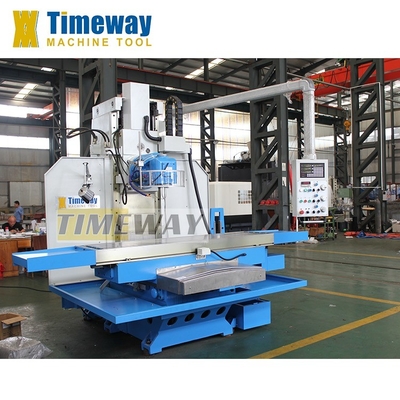

BM715 Bed Type Vertical Milling Machine with Spindle Speed Range 6-1500 rpm and Cusomer Request
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 650 | Table Travel (Z) (mm): | None |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 6 - 1500 R.p.m |
| Type: | VERTICAL | Dimension(L*W*H): | 3220*2420*2800mm |
| Weight (KG): | 7300 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Bed Type Milling Machine |
| Model: | BM715 | Work Table Size: | 500x2100 |
| Color: | Cusomer Request | Machine Type: | Bed Type |
| Spindle Speed Range: | 6-1500 Rpm | After Warranty Service: | Online Support |
| Key Words: | Bed Type Milling Machine | CNC Or Not: | Normal |
| Machine Weight: | 7300kg | Number Of Axes: | 2 |
| Condition: | New | Applicable Industries: | Garment Shops, Manufacturing Plant, Printing Shops, Construction Works , Energy & Mining |
| Showroom Location: | Colombia, Algeria, Ukraine, Nigeria, Uzbekistan, Australia, Viet Nam, Brazil, Peru | Core Components: | Bearing, Motor, Pump, Gear, Engine |
| Table Travel (mm): | 500*2100 | Port: | China Port |
Product Description
Product Description
Bed Type Milling Machine BM715
Features:
Specification
Specifications | Unit | BM715 | BM716 |
Table size | mm | 2100x500 | 575x2500 |
Longitudinal travel (X) | mm | 1500 | 1800 (optional: 2000) |
Cross travel (Y) | mm | 670 | 600 |
Vertical spindle vertical travel (Z) | mm | 0-670 | 900 |
Horizontal spindle vertical travel (Z) | mm | - | - |
T slot (No./width/distance) | mm | 4/20/100 | 3/22/152 |
Loading capacity | kg | 2000 | 3000 |
Spindle quill travel | mm | - | - |
Spindle taper | - | ISO50 | ISO50 |
Verical spindle speed | rpm | 35-1345 (12) | 40-1200 (12) |
Horizontal spindle speed | rpm | - | - |
Spindle quill feed speed | mm/r | - | - |
Distance from horizontal spindle axis to table | mm | 30 (Min.) | |
Distance from spindle axis to column | mm | 610 | 110 |
Distance from spindle nose to table | mm | 0-670 | 49 (Min.) |
X/Y-axis feed speed | mm/min | 20-1800 | 20-2200 |
X/Y-axis rapid feed speed | mm/min | 3500 | 3000 |
Z-axis feed speed | mm/min | 10-900 | 12-1320 |
Z-axis rapid feed speed | mm/min | 1750 | 1800 |
Main motor power | kw | 7.5 | 11 |
Machine weight | kg | 7300 | 10000 |
Machine dimensions (L×W×H) | mm | 3300x2380x2750 | 4300x3200x3300 |
Accessories
STANDARD ACCESSORIES
1.Draw bar
2.Milling chuck (ISO 50)
3.Taper shell end mill holder (ISO 50)
4.Middle cover
5.Work lamp
6.Oil gun
7.General tools8.Foundation bolt
9.Operation manual
3.Taper shell end mill holder (ISO 50)
4.Middle cover
5.Work lamp
6.Oil gun
7.General tools8.Foundation bolt
9.Operation manual
Company Profile

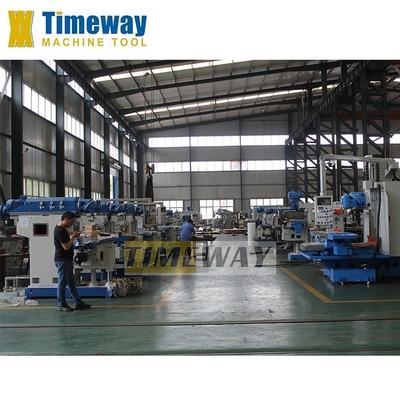

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
