--Rigid, heavy machine frame featuring proven knee and column design.
--Using qualitative materials casting table, and hardened & ground, ensure enough loading capacity and rigidity.
--Guideways and gears are hardened and ground.
--Multi-kinds spindle taper, good generality, wide spindle speed range by gears.
--Worktable swivels ±45°, can achieve inclined cutting.
 |

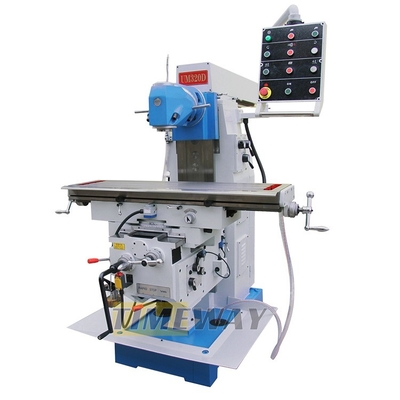

Universal Knee Type Milling Machine with 300mm Table Travel and Manual Operation Mode
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway/TIMAC |
| Model Number: | UM320D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 800 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 350 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 40 - 1300 R.p.m |
| Type: | Universal | Voltage: | 380V |
| Dimension(L*W*H): | 1700*1500*2150 | Weight (KG): | 1550 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | New Product 2022 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Horizontal Universal Milling Machine | Color: | Customer Request |
| Machine Type: | Universal Horizontal | Model: | UM320D |
| Key Word: | Milling Machine Manual | Work Table Size: | 320*1250mm |
| Longitudinal Travel (X): | 800mm | Vertical Travel (Z): | 350mm |
| Weight: | 1550kg | Spindle Speed: | 40 - 1300 R.p.m |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Printing Shops, Construction Works , Advertising Company | Showroom Location: | Algeria, Romania, Kazakhstan, Australia, Viet Nam, Brazil, Peru |
| Core Components: | Bearing, Motor, Pump, Gear, PLC | ||
Product Description
Product Description

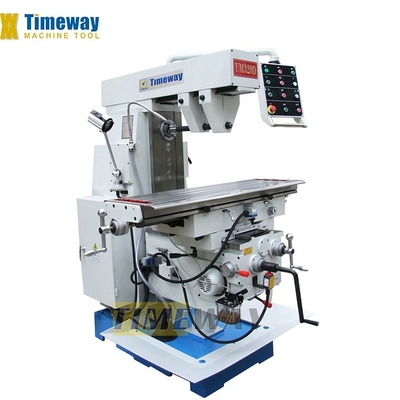

Horizontal Knee-type Milling Machine
Features:
Specification
Specifications | Unit | UM320D | UM360D |
Table size | mm | 320x1250/320x1500 | 360x1500 |
Longitudinal travel (X) | mm | 600/800/1100 | 900 |
Cross travel (Y) | mm | 300 | 390 |
Vertical travel (Z) | mm | 350 | 500 |
T-slots | mm | 3/14/70 | 3/18/70 |
Loading capacity | kg | 300 | 450 |
Worktable swivel angle | ° | ±45° | ±45° |
Distance from spindle center to table | mm | 0-400 | 30-510 |
X-axis feed speed | mm/min | 22-555 (8) | 30-600 (8) |
Y-axis feed speed | mm/min | 22-555 (8) | 22-410 (8) |
Z-axis feed speed | mm/min | 17-190 (8) | 15-220 (8) |
X-axis rapid feed speed | mm/min | 1080 | 1300 |
Y-axis rapid feed speed | mm/min | 1080 | 1200 |
Z-axis rapid feed speed | mm/min | 590 | 600 |
Spindle taper | - | ISO40 (V); ISO40 (H) | ISO50 (H); ISO40 (V) |
Spindle speed (steps) | rpm | 40-1300 (12) | 60-1800 (12) |
X/Y/Z-axis guide type | - | ▲■■ | ▲■■ |
Main motor power | kw | 2.2 | 4 |
Feed motor power | kw | 0.75 | 1.1 |
Coolant pump power | kw | 0.04 | 0.04 |
Net weight/gross weight | kg | 1550/1800 | 2250/2500 |
Machine dimensions (LxWxH) | mm | 1700x1500x2150 | 2000x1600x2200 |
Accessories
STANDARD ACCESSORIES:
Ÿ Draw bar
Ÿ Horizontal mill arbor
Ÿ Coolant system
Ÿ Chip tray
Ÿ Work lamp
Ÿ Lubrication system
Ÿ Tools and Tool box
Ÿ Operator manual
Ÿ Horizontal mill arbor
Ÿ Coolant system
Ÿ Chip tray
Ÿ Work lamp
Ÿ Lubrication system
Ÿ Tools and Tool box
Ÿ Operator manual
OPTIONAL ACCESSORIES:
Ÿ 2/3-axis digital readout
Ÿ 58pcs clamping kit
Ÿ Machine vise
Ÿ Spindle protection guard
Ÿ Table protection guard
Ÿ Dividing head
Ÿ Rotary table
Ÿ Reducing sleeve
Ÿ 58pcs clamping kit
Ÿ Machine vise
Ÿ Spindle protection guard
Ÿ Table protection guard
Ÿ Dividing head
Ÿ Rotary table
Ÿ Reducing sleeve
Detailed Images

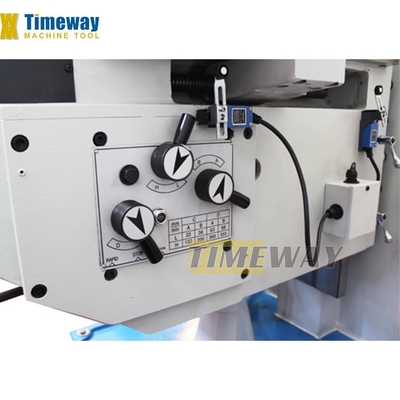

Complete with table feed and rapid feed in all 3-axis to clearly reduce downtime.

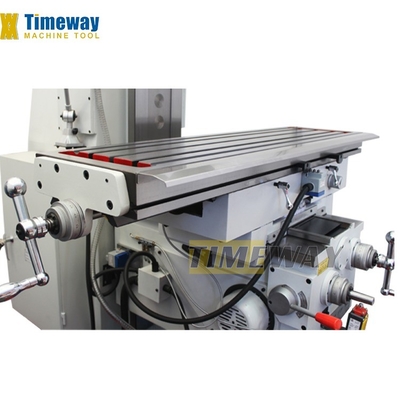

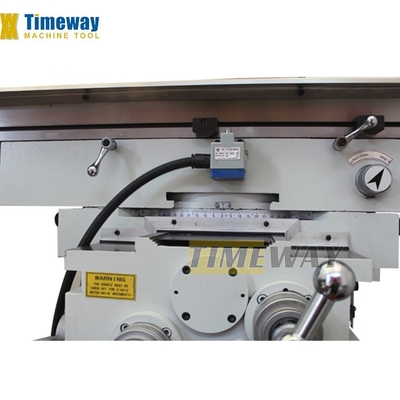

Oversize flat guides guarantee stability at high milling load, mill table swivels from -45° to +45°.
Oversize flat guides guarantees stability even at heavy milling. Mill table swivels ±45°
