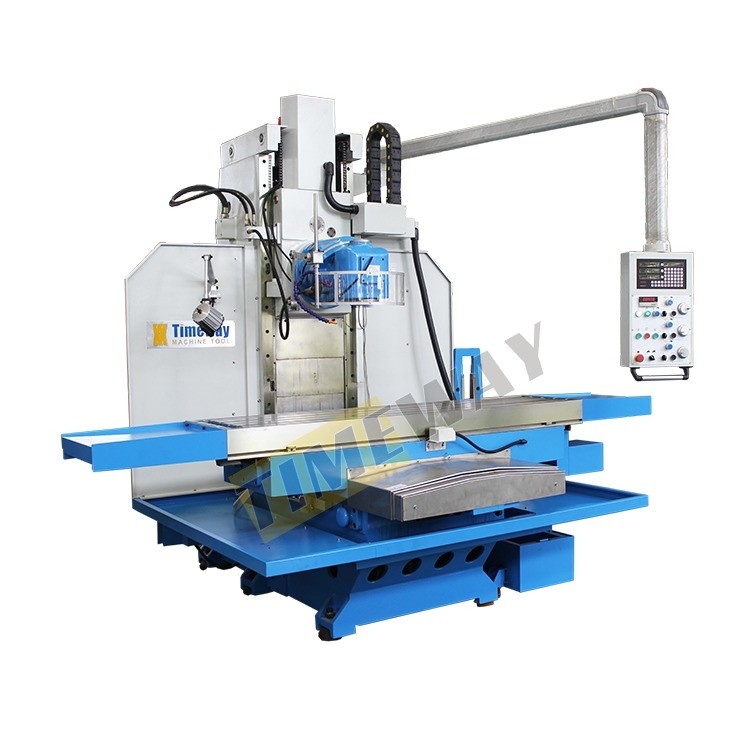

Conventional Bed-Type Milling Machine with Large Table Size and 3220*2420*2800 Dimensions
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $48,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500mm | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 650mm | Table Travel (Z) (mm): | 680mm |
| Spindle Taper: | BT40 | Range Of Spindle Speed(r.p.m): | 6 - 1500 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 11 |
| Voltage: | 220/380V | Dimension(L*W*H): | 3220*2420*2800 |
| Weight (KG): | 7300 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Bed Type Milling Machine |
| Product Name: | Metal Milling Machine | Machine Type: | Manual Milling Machine |
| Color: | Opitional | Product Type: | Bed Type Milling Machine |
| Keyword: | Milling | Precision: | High Precision Universal Milling Machine |
| CNC Or Not: | Normal Milling Machine | Key Word: | Universal Milling Machine |
| Application: | Metal Working Milling Machine | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops, Advertising Company |
| Showroom Location: | South Africa, Kyrgyzstan, Turkey, United Kingdom, Germany | Core Components: | Motor, Gear, PLC, Pressure Vessel, Engine, Gearbox |
| Table Travel (mm): | 1500 | Year: | 2023 |
| Port: | China Port | ||
Product Description
Product Description
Bed Type Milling Machine
Standard accessories:

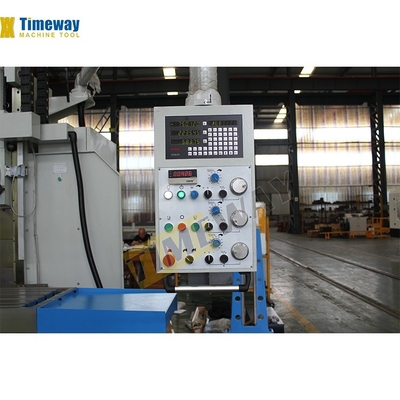

Electric cabinetHung up control panel
Oil collecting plate
Coolant pump
Draw bar
Manual pulse generator (MPG)
Auto. lubricate pump
Machine vise
Collet chuck
Reduction sleeve
Work light
3axis digital readout system(DRO)
Wrenches
Oil collecting plate
Coolant pump
Draw bar
Manual pulse generator (MPG)
Auto. lubricate pump
Machine vise
Collet chuck
Reduction sleeve
Work light
3axis digital readout system(DRO)
Wrenches
Optional accessories:
Clamping kits Air power draw bar
Rotary table
Dividing head
Rotary table
Dividing head
Specification
Specifications | Unit | BM715 |
Spindle hole taper | mm | 7:24 ISO50 |
Spindle speed range | r/min | Variable 6-300,30-1500 |
Distance between spindle axis and column guideway | mm | 610 |
Distance between spindle nose and table surface(V) | mm | 0-650 |
Distance between spindle axis and table surface(H) | mm | 8-660 |
Table size | mm | 2100*500 |
T slots | mm | 4/20/100 |
Table travel-X | mm | 1500 |
Table travel-Y | mm | 650 |
Table feed-X/Y | mm/min | 2.5-3000 |
Table feed-Z | mm/min | 2.5-2500 |
Table rapid feed X/Y/Z | mm/min | 6000/6000/3000 |
Main motor power | Kw | 11 |
Torque of X/Y/Z axis AC servo motor | Nm | 18/23/18 |
Cooling pump motor power | w | 90 |
Overall size | mm | 3220×2420×2800 |
Weight | kg | 7300 |

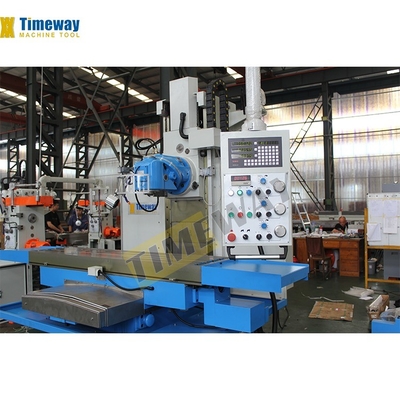

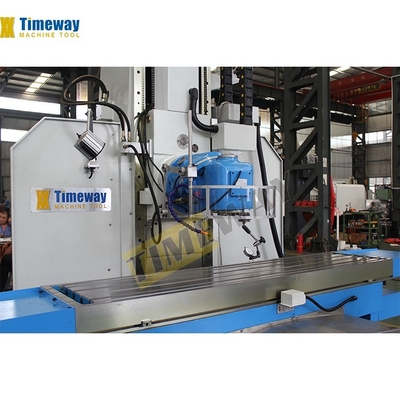

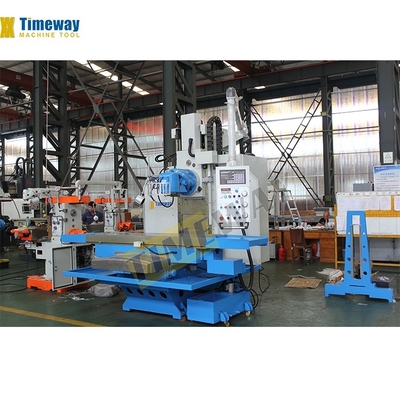

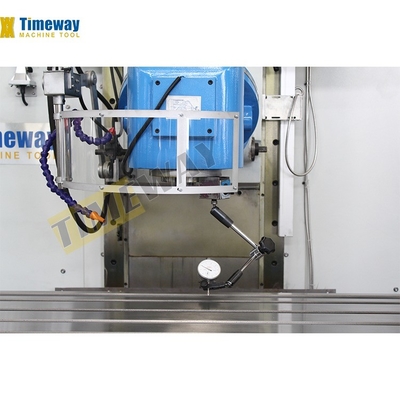

Detailed Images
