Experience Industrial Machining with BM7110 Bed-Type Milling Machine 3020x3000x3000mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | BM7110,BM718 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2500 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1020 | Table Travel (Z) (mm): | 1090 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 36 - 1340 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 7.5 |
| Dimension(L*W*H): | 3020x3000x3000mm | Weight (KG): | 10000 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Milling | Machine Type: | Veritcal |
| Product Name: | Metal Milling Machine | Keyword: | Milling Machine Manual |
| Function: | Machining Metal | Application: | Metal Machining |
| CNC Or Not: | Normal | Usage: | General |
| Color: | Custom-made | Precision: | Precision |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Energy & Mining | Showroom Location: | Romania, South Africa, Japan, Egypt, United Kingdom, United States, France |
| Core Components: | Bearing, Motor | Table Travel (mm): | 700x2800 |
| Year: | 223 | Port: | China Port |
Product Description
Products Description
SPECIFICATIONS | UNIT | BM718 | BM7110 |
Table size | mm | 700x2800 | 500x2800 |
Longitudinal travel (X) | mm | 2500 | 2500 |
Cross travel (Y) | mm | 820 | 1020 |
Vertical travel (Z) | mm | 1090 | 1090 |
T slot (No./width/distance) | mm | 4/20/100 | 4/20/100 |
Loading capacity | kg | 5000 | 5000 |
Spindle taper | ISO50 | ISO50 | |
Spindle speed | rpm | 36-1340（12) | 36-1340(12) |
Distance from spindle axis to table | mm | 385-1540/0-1160 | 385-1540/0-1160 |
Distance from spindle axis to column | mm | 900 | 900 |
Distance from spindle nose to table | mm | 0-1090 | 0-1090 |
X/Y-axis feed speed | mm/min | 22.4-560 | 22.4-560 |
X/Y-axis rapid feed speed | mm/min | 1650 | 1650 |
Z-axis feed speed | mm/min | 11.2-280 | 11.2-280 |
Z-axis rapid feed speed | mm/min | 825 | 825 |
Main motor power | kw | 7.5 | 7.5 |
Machine weight | kg | 10000 | 9000 |
Machine dimensions (L×W×H) | mm | 3020x3000x3000 | 3020x3000x3000 |

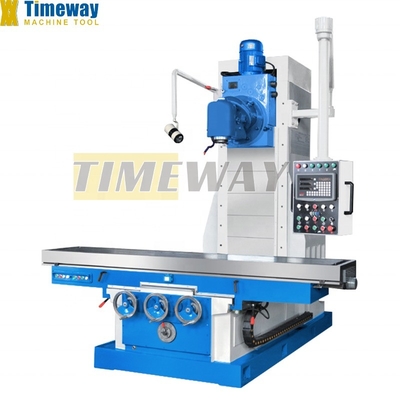

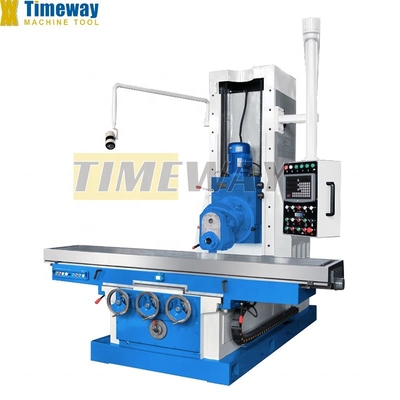

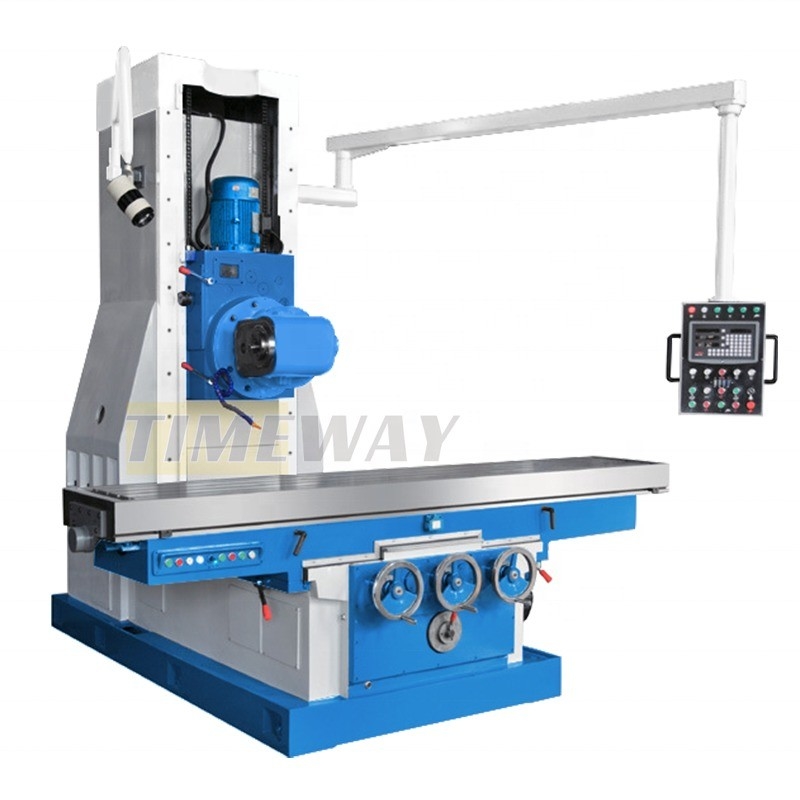

Bed Type Milling Machine High Precision High Quality Detailed Picture
Bed Type Milling Machine High Precision High Quality Detailed Picture
Draw bar Horizontal mill arbor Horizontal mill arbor holder Coolant system Chip tray Work lamp Lubrication system Tools and Tool box Operator manual | 2/3-axis digital readout 58pcs clamping kit Machine vise Spindle protection guard Table protection guard Dividing head Rotary table Reducing sleeve |
