High Productivity Vertical Milling Machine with Adjustable Spindle-Table Distance
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway/TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $14,900.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Dimension(L*W*H): | 230*1067 |
| Weight (KG): | 1060 | Power (kW): | 2.2 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | India, Japan, Spain, Egypt, Russia, Turkey, Italy | Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining, Machinery Repair Shops, Building Material Shops |
| Marketing Type: | Hot Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine, Pump | Product Name: | Turret Milling Machine |
| Model: | M230B | Longitudinal Travel: | 610/790mm |
| Cross Travel: | 310mm | Vertical Travel: | 390mm |
| Ram Travel: | 315mm | Distance From Spindle To Table: | 0-350 |
| Spindle Taper: | R8 | Spindle Quill Travel: | 127mm |
| Main Motor Power: | 2.2kw | ||
Product Description
Product Description

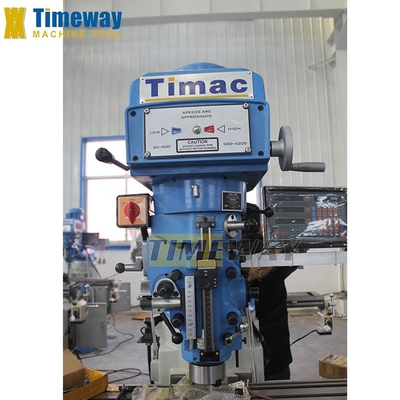

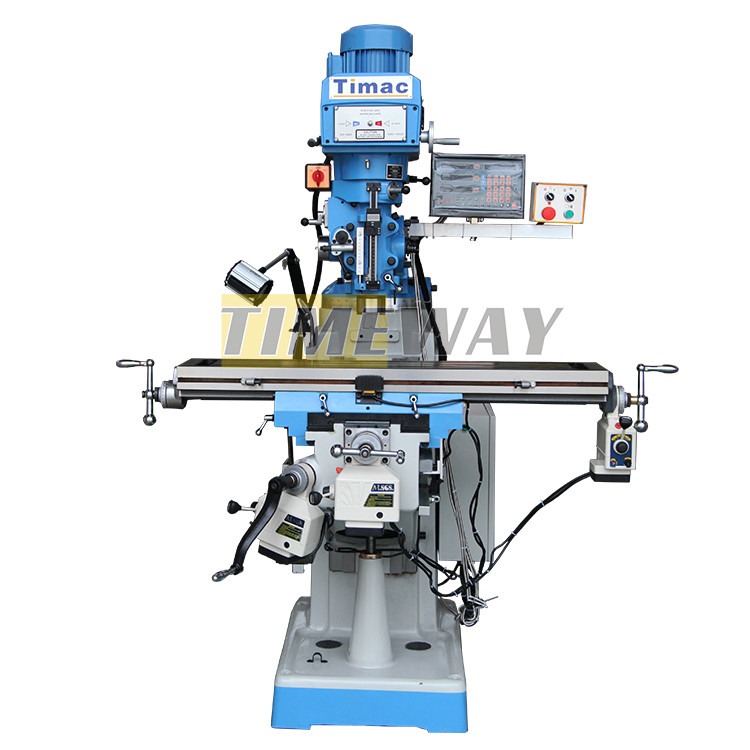

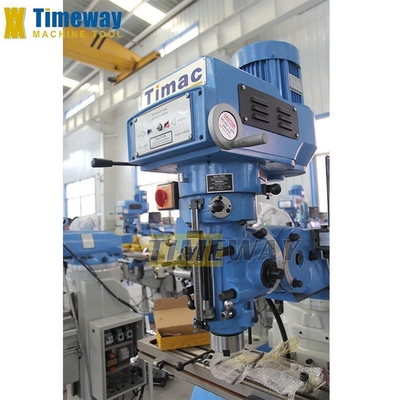

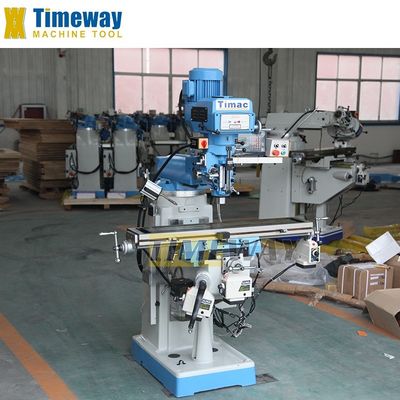

Vertical Turret Milling Machine
M230A/M230B
Feature:
M230A:
*Double 55°dovetail guide way is adopted on Both Y and Z axis;
*Adopted strengthen rib on both sides of the column;
*The work table surface and 3 axis guide way are hardened and precision ground.
M230B:
*Double 55°dovetail guide way is adopted on Z axis, and rectangular guide way on Y axis;
*Adopted strengthen rib on both sides of the column;
*The work table surface and 3 axis guide way are hardened and precision ground.
*Double 55°dovetail guide way is adopted on Both Y and Z axis;
*Adopted strengthen rib on both sides of the column;
*The work table surface and 3 axis guide way are hardened and precision ground.
M230B:
*Double 55°dovetail guide way is adopted on Z axis, and rectangular guide way on Y axis;
*Adopted strengthen rib on both sides of the column;
*The work table surface and 3 axis guide way are hardened and precision ground.
Specification
SPECIFICATION | UNIT | M230A | M230B | |
Table size | mm | 230x1067/230x1246 | 230x1067/230x1246 | |
Longitudinal travel(X) | mm | 670/850 | 610/790 | |
Cross travel(Y) | mm | 310 | 310 | |
Vertical travel(Z) | mm | 390 | 390 | |
Ram travel | mm | 315 | 315 | |
Distance from spindle to table | mm | 0-350 | 0-350 | |
Spindle taper | - | R8(Optional :ISO30/ISO40) | R8(Optional : ISO30/ISO40) | |
Spindle quill travel | mm | 127 | 127 | |
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) | ||
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 | 0.038/0.076/0.152 | |
Main motor power | kw | 2.2 | 2.2 | |

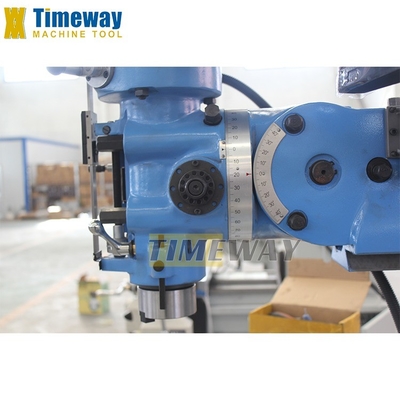

Mill head swivel angle | ° | ±90° | ±90° | |
Mill head tilting angle | ° | ±45° | ±45° | |
X/Y/Z-axis guide type | - | ▲▲▲ | ▲■▲ | |
Dimension of package(One) | mm | 1400x1476x2030 | 1400x1476x2030 | |
Dimension of package(Two) | mm | 1450x1570x2080 | 1450x1570x2080 | |
Dimension of package(Three) | mm | 1450x2180x2080 | 1450x2180x2080 | |
Gross weight (One) | kg | 1000 | 1060 | |
Accessories
Standard accessories:
* Draw bar
* Electric box
* Working light
* Hand oil pump
* Tool & tool box
* Electric box
* Working light
* Hand oil pump
* Tool & tool box
Optional accessories:

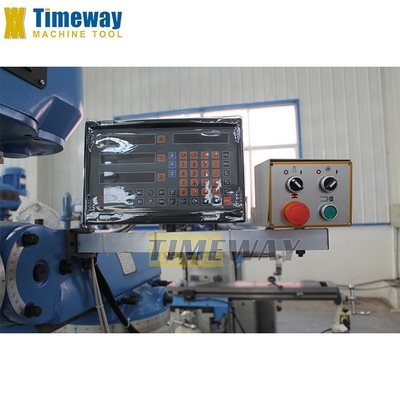

* Digital readout system(DRO)
* Machine vise
* Power feed unit
* Gear box power feed
* Clamping kits
* ISO40 collet chuck
* R8 collet chuck
* Oil collecting plate
* Plastic splash guard
* Cooling system
* Machine vise
* Power feed unit
* Gear box power feed
* Clamping kits
* ISO40 collet chuck
* R8 collet chuck
* Oil collecting plate
* Plastic splash guard
* Cooling system
Company Profile
Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing,aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Our company has advanced production testing equipment, first-class R & D, production, sales and service teams, and behave the own production and acceptance standard higher than the national standard to ensure that each machine delivered by us can make customer satisfaction and help customer create the greatest benefits.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
