1200mm Table Travel Horizontal Boring and Milling Machine with 5000kg Max. Table Load
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $85,320.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Size (mm): | 1320x1010 | Table Travel (X) (mm): | 1200 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 1300 Mm |
| Number Of Axes: | 5 | Max. Table Load(kg): | 5000 |
| Travel (W-axis) (mm): | 550 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Positioning Accuracy (X Axis) Mm: | 0.03 | Positioning Accuracy (Y Axis) Mm: | 0.04 |
| Positioning Accuracy (Z Axis) Mm: | 0.02 | No. Of Spindles: | Single |
| Range Of Spindle Speed(r.p.m): | 12 R.p.m | Spindle Motor Power(kW): | 15 |
| Type: | Horizontal | Condition: | New |
| CNC Or Not: | Normal | Production Capacity: | Full |
| Voltage: | 380V | Dimension(L*W*H): | 5500x3050x2900 |
| Weight (T): | 12.5 T | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Canada, Turkey, France, Germany, Pakistan, India, Russia, South Korea | Product Name: | Boring Machine Tool |
| Name: | Boring Machine | Application: | Construction Machine Repairing |
| Functions: | Broing | After Warranty Service: | Service |
| Keyword: | Boring Machine | Color: | Meet Customer's Requirement |
| Precision: | High Precision | Machine Type: | Horizontal Structure |
Product Description
Product Description

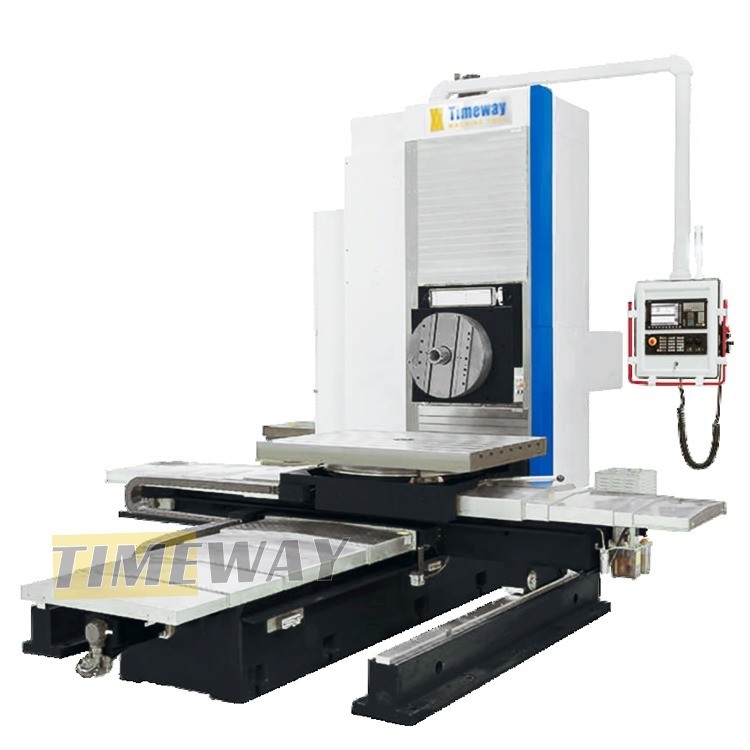

CNC Horizontal Boring and Milling Machine
Specification
Model | Unit | HBM-110C | HBM-110D |
Working area | |||
Drilling capacity | mm | Φ50 | Φ50 |
Counterbore diameter (max.) | mm | Φ240 | Φ240 |
Facing slide working diameter (max.) | mm | Φ720 | Φ720 |
Table size | mm | 1320x1010 | 1320x1010 |
Table load capacity | kg | 5000 | 5000 |
Spindle center-to-table distance | mm | 5-905 (5-1205) | 5-1205 (5-1605) |
Number of T-slots | pcs | 7 | 7 |
T-slots, width | mm | 22 | 22 |
T-slots, spacing | mm | 125 | 125 |
Table rotation range | deg | 4x90° | 4x90° |
Travels | |||
Table corss travel X-axis | mm | 1200 | 1800 |
Headstock vertical travel Y-axis | mm | 900 (1200) | 1200 (1600) |
Table longitudinal travel Z-axis | mm | 1300 | 1300 |
Spindle longitudinal travel W-axis | mm | 550 | 550 |
Facing slide travel U-axis | mm | 125 | 125 |
Headstock | |||
Speed range | r/min | 12-1100 | 12-1100 |
Spindle diameter | mm | Φ110 | Φ110 |
Spindle torque (max.) | N.m | 1100 | 1100 |
Spindle axial force | N | 13000 | 13000 |
Spindle taper | / | BT50 | BT50 |
Facing slide speed | r/min | 4-125 | 4-125 |
Rapid feed | |||
Rapid feed X-axis | mm/min | 10000 | 10000 |
Rapid feed Y-axis | mm/min | 10000 | 10000 |
Rapid feed Z-axis | mm/min | 10000 | 10000 |
Rapid feed W-axis | mm/min | 5000 | 5000 |
Rapid feed U-axis | mm/min | 80 | 80 |
Feed | |||
Feed X-axis | mm/min | 5-1000 | 5-1000 |
Feed Y-axis | mm/min | 5-1000 | 5-1000 |
Feed Z-axis | mm/min | 5-1000 | 5-1000 |
Feed W-axis | mm/min | 5-1000 | 5-1000 |
Feed U-axis | mm/min | 80 | 80 |
Accuracies | |||
Positioning accuracy X-axis | mm | 0.03 | 0.04 |
Positioning accuracy Y-axis | mm | 0.03 | 0.04 |
Positioning accuracy Z-axis | mm | 0.03 | 0.04 |
Positioning accuracy W-axis | mm | 0.03 | 0.03 |
Repeatability X-axis | mm | 0.02 | 0.02 |
Repeatability Y-axis | mm | 0.02 | 0.02 |
Repeatability Z-axis | mm | 0.02 | 0.02 |
Repeatability W-axis | mm | 0.02 | 0.02 |
Work table rotation accuracy | " | 12" | 12" |
Power | |||
Main motor power | kw | 15 | 15 |
Others | |||
Overall dimensions (LxWxH) | mm | 5500x3050x2900 | 5892x3704x3300 |
Machine weight | kg | 12500 | 15500 |

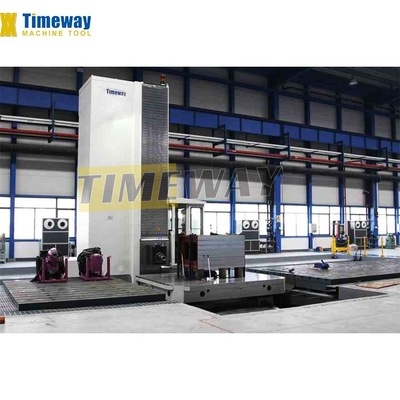

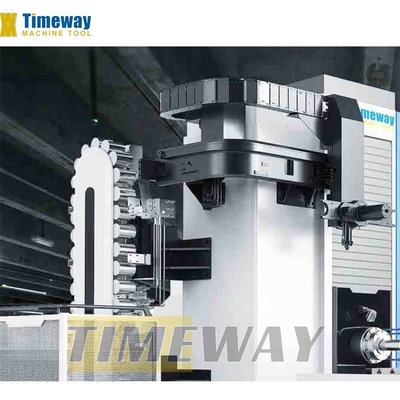

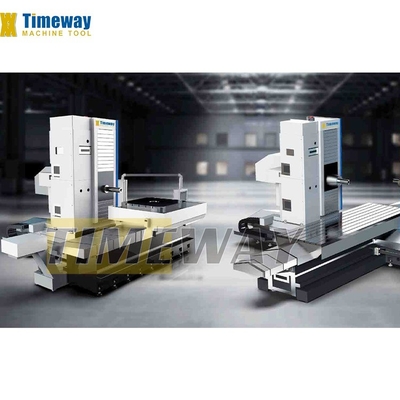

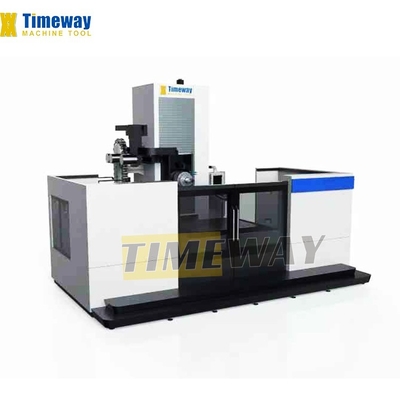

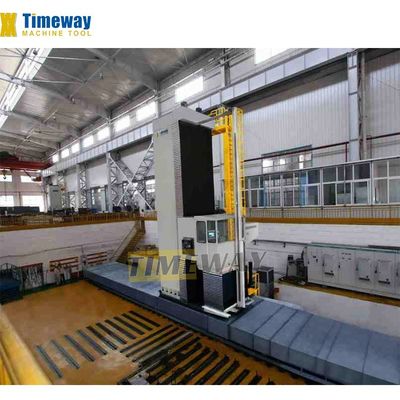

Detailed Images
Company Profile
Business Range: Industrial Equipment & Components, Manufacturing & Processing Machinery Main Products: Lathe , Milling Machine , Drilling Machine , Grinding Machine , CNC Machines , Shearing Machine , Press Brakes , Rolling Machine , Forklift Truck , Vehicle Machine Management System Certification: ISO 9001, ISO 14001 ZHENGZHOU TIMEWAY MACHINE TOOL Co., Ltd. is a professional machine tool supplier. Our factory is the joint-stock enterprise, has 50 years of machine tool development, and manufacturing history, is the largest machine tool manufacturer in central China, is the "National Torch Plan Key High-tech Enterprise", "China Industry Leading Enterprise", "China Machinery Industry 500 ", China's machine tool industry" well-brand Top Ten Enterprises ". The factory occupies more than 500 acres, built a foundry, machining, heat treatment, assembly, painting, logistics and other domestic advanced production lines, with vertical machining centers, horizontal machining center, five-sided machining centers, large boring and milling machine, large German rail grinder, Zeiss coordinate measuring instrument, gear detector and laser interferometer and other advanced equipment, instruments and a total of more than 600 sets. Our product mainly cover conventional lathe, CNC lathe, CNC oil country lathe, vertical lathe, milling machine, CNC machining center, drilling machines, grinding machines, shaping/slotting machines, sawing machines and related accessories & tools, etc. With many years' experience in machine production and export, as well as skilled staff members, we believe we can supply more and more quality machines to clients from different countries and regions, and can make more and more friends globally. Our exclusive mission: Supply clients with quality machines, competitive prices and reliable services! Our top motto: Satisfy clients, satisfy ourselves!
