670/850mm Longitudinal Travel M230A Turret Milling Machine for Metal
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | M230A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $16,588.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 670/850 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 310 | Table Travel (Z) (mm): | 390 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Weight (KG): | 1000 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Turret Milling Machine |
| After-sales Service Provided: | Provided | Table Size: | 230x1067/230x1246mm |
| Longitudinal Travel (X): | 670/850mm | Cross Travel (Y): | 310mm |
| Vertical Travel (Z): | 390mm | Spindle Speed: | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200)rpm |
| Distance From Spindle To Table: | 0-350mm | Main Motor Power: | 2.2kw |
| Gross Weight (One): | 1000kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops |
| Showroom Location: | Kenya, South Korea, Chile, Colombia, Japan, Australia, Canada, United Kingdom, Italy, Germany, Indonesia, India, Russia, Thailand | Core Components: | Motor |
Product Description
You can click on the picture to view the products you are interested in
One-Stop Shopping
Product Description
Specification
SPECIFICATION | UNIT | M230A | ||
Table size | mm | 230x1067/230x1246 | ||
Longitudinal travel (X) | mm | 670/850 | ||
Cross travel (Y) | mm | 310 | ||
Vertical travel (Z) | mm | 390 | ||
T-slot (No./width) | mm | 3/16 | ||
Ram travel | mm | 315 | ||
Distance from spindle to table | mm | 0-350 | ||
Spindle taper | - | R8 (Optional : ISO30/ISO40) | ||
Spindle quill travel | mm | 127 | ||
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) | ||
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 | ||
Main motor power | kw | 2.2 | ||

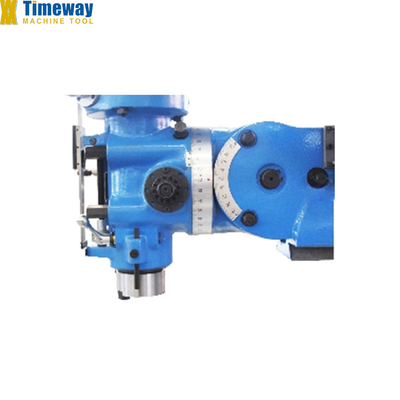

Mill head swivel angle | ° | ±90° | ||
Mill head tilting angle | ° | ±45° | ||
X/Y/Z-axis guide type | - | ▲▲▲ | ||
Dimension of package(One) | mm | 1400x1476x2030 | ||
Gross weight (One) | kg | 1000 | ||
Notes: "▲" means double dovetail guideway; "■" means rectangular guideway. | ||||
