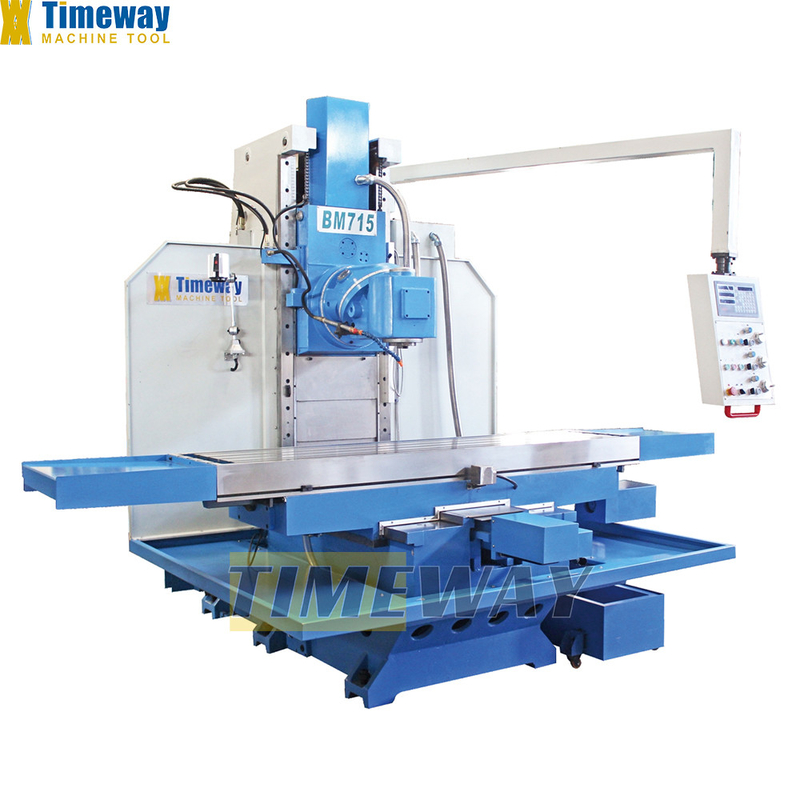

7300kg Weight BM715 Vertical Milling Machine for Versatile Metal Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $26,688.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 650 | Table Travel (Z) (mm): | None |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 6 - 1500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 11 |
| Weight (KG): | 7300 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Bed Type Milling Machine |
| Table Size: | 500x2100mm | Longitudinal Travel (X): | 1500mm |
| Cross Travel (Y): | 650mm | Machine Type: | Veritcal |
| Verical Spindle Speed: | 6-1500 (2steps)rpm | Main Motor Power: | 11kw |
| Coolant Pump Power: | 0.09kw | Machine Weight: | 7300kg |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Energy & Mining | Showroom Location: | Morocco, Kenya, Chile, Romania, South Africa, Kazakhstan, Japan, Malaysia, Australia, Egypt, Italy, France, Viet Nam, Thailand |
| Core Components: | Bearing, Motor, Gear | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
Draw bar
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual
Specification
SPECIFICATION | UNIT | BM715 |
Table size | mm | 500x2100 |
Longitudinal travel (X) | mm | 1500 |
Cross travel (Y) | mm | 650 |
T slot (No./width/distance) | mm | 4/20/100 |
Spindle taper | - | ISO50 |
Verical spindle speed | rpm | 6-1500 (2steps) |
Distance from horizontal spindle axis to table | mm | 8-660 |
Distance from vertical spindle axis to column | mm | 610 |
Distance from vertical spindle nose to table | mm | 0-650 |
X/Y-axis feed speed | mm/min | 2.5-3000 |
X/Y-axis rapid feed speed | mm/min | 6000 |
Z-axis feed speed | mm/min | 2.5-2500 |
Z-axis rapid feed speed | mm/min | 3000 |
Main motor power | kw | 11 |
X/Y/Z-axis feed motor torque | NM | 18/23/18 |
Coolant pump power | kw | 0.09 |
Machine dimensions (L×W×H) | mm | 3220x2420x2800 |
Machine weight | kg | 7300 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
