Versatile Turret Milling Machine M320-1520x1550x2080mm Size with Swivelable Mill Head
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | M320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 920/1000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 400 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 2.2 |
| Dimension(L*W*H): | 1520x1550x2080mm | Weight (KG): | 1400 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Turret Milling Machine | After-sales Service Provided: | Provided |
| Table Size: | 320x1370/320x1500mm | Longitudinal Travel (X): | 920/1000mm |
| Cross Travel (Y): | 400mm | Vertical Travel (Z): | 400mm |
| Mill Head Swivel Angle: | ±90° | Distance From Spindle To Table: | 0-400mm |
| Main Motor Power: | 2.2kw | Gross Weight (One): | 1400kg |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction Works , Energy & Mining | Showroom Location: | Kenya, South Korea, Chile, Colombia, Japan, Australia, Canada, United Kingdom, Italy, Germany, Indonesia, India, Russia, Thailand |
| Core Components: | Motor, Engine | Year: | 2024 |
Product Description
You can click on the picture to view the products you are interested in
One-Stop Shopping
Product Description

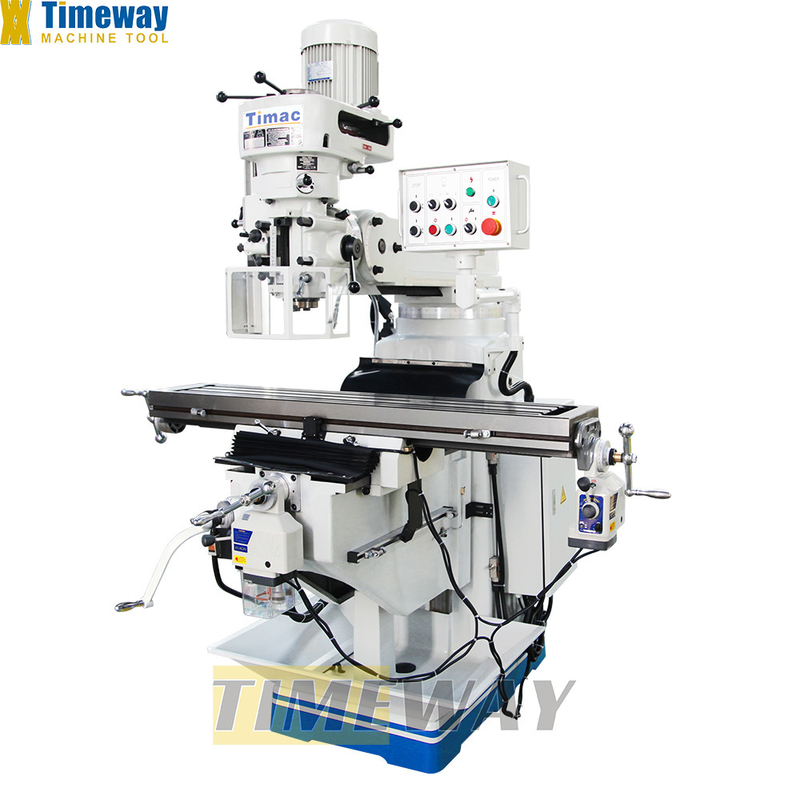

Turret Milling Machine M320

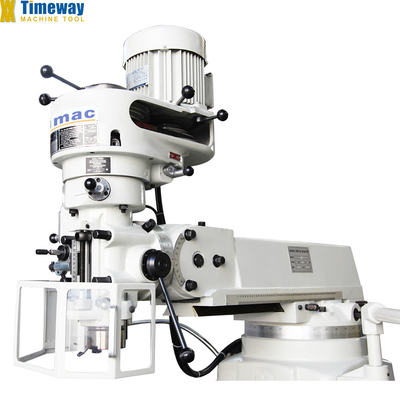

Swivelable mill head from -90° to +90° allows for various operations.
Mill head can be turned, tilted and swivelled making it extremely versatile.
Specification
SPECIFICATION | UNIT | M320 | ||
Table size | mm | 320x1370/320x1500 | ||
Longitudinal travel (X) | mm | 920/1000 | ||
Cross travel (Y) | mm | 400 | ||
Vertical travel (Z) | mm | 400 | ||
T-slot (No./width) | mm | 3/16 | ||
Ram travel | mm | 470 | ||
Distance from spindle to table | mm | 0-400 | ||
Spindle taper | - | R8 (Optional : ISO30/ISO40) | ||
Spindle quill travel | mm | 127 | ||
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) | ||
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 | ||
Main motor power | kw | 2.2 | ||
Mill head swivel angle | ° | ±90° | ||
Mill head tilting angle | ° | ±45° | ||
X/Y/Z-axis guide type | - | ▲▲▲ | ||
Dimension of package(One) | mm | 1520x1550x2080 | ||
Gross weight (One) | kg | 1400 | ||
Notes: "▲" means double dovetail guideway; "■" means rectangular guideway. | ||||
