TM300A High Precision Manual Milling Machine with 880/1000mm Table Travel X Capability
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | TM300A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $11,900.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 880/1000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 390 | Table Travel (Z) (mm): | 460 |
| Spindle Taper: | Other | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | Universal | Dimension(L*W*H): | 160x170x220mm |
| Weight (KG): | 1640 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Turret Milling Machine |
| After-sales Service Provided: | Provided | Table Size: | 305x1370/305x1500mm |
| Table Longitudinal Travel: | 880/1000mm | Knee Vertical Travel: | 390mm |
| Vertical Travel (Z): | 460mm | Knee Rapid Feed Speed: | 345mm/min |
| Ram Cross Travel: | 500mm | Ram Swivel Angle: | 180° |
| Worktable Swivel Angle: | ±35° | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction Works , Energy & Mining |
| Showroom Location: | Kenya, South Korea, Chile, Colombia, Japan, Australia, Canada, United Kingdom, Italy, Germany, Indonesia, India, Russia, Thailand | Core Components: | Motor, Engine |
| Year: | 2024 | ||
Product Description
You can click on the picture to view the products you are interested in
One-Stop Shopping
Product Description

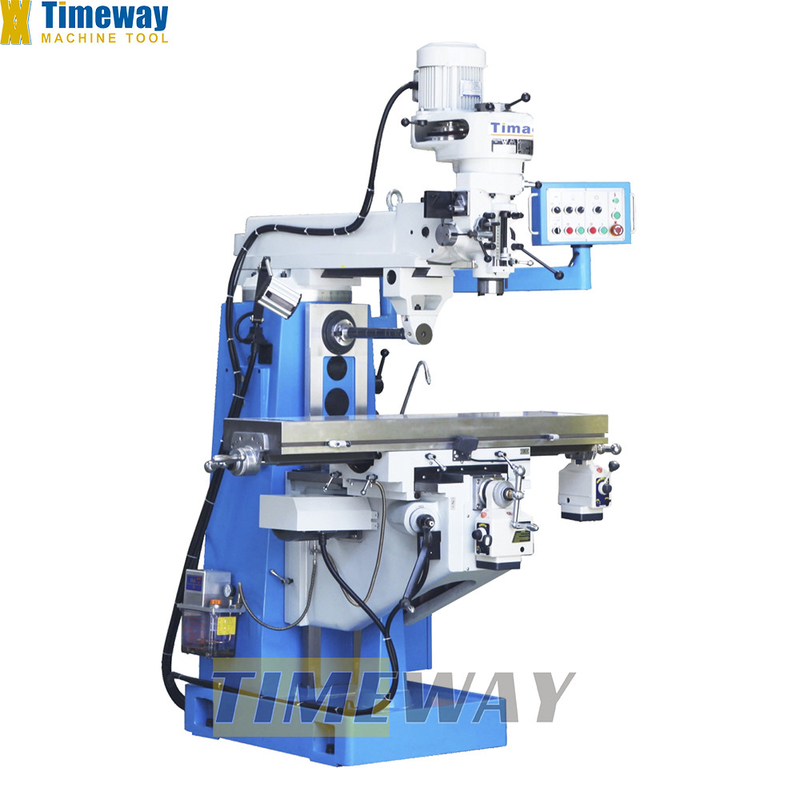

Turret Milling Machine TM300A

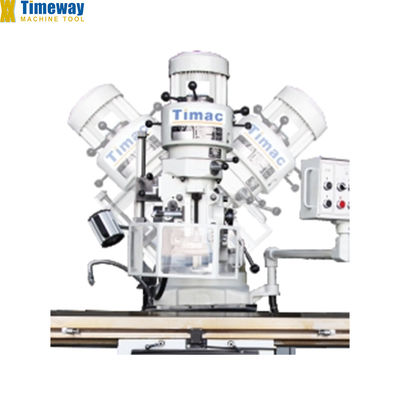

Swivelable mill head from -90° to +90° allows for various operations.
Spindle feed by hand or automatic (0.04/0.08/0.15mm/r).
STANDARD CONFIGURATION:
1. 3HP/16steps milling head
2. 5HP/12steps H spindle
3. Draw bar of V spindle & H spindle
4. Working lamp
5. Tools shank of H spindle
6. Cooling pump
7. Handle lubricant pump
8. Z-axis elevating motor(only for TM300,TM300A)
9. Operating tools and tool box
10. Operation manual
2. 5HP/12steps H spindle
3. Draw bar of V spindle & H spindle
4. Working lamp
5. Tools shank of H spindle
6. Cooling pump
7. Handle lubricant pump
8. Z-axis elevating motor(only for TM300,TM300A)
9. Operating tools and tool box
10. Operation manual
OPTIONS & EXTRA COST:
1. 5HP/16steps milling head
2. Variable speed milling head
3. Rotating table (±35º) (TM250A, TM300A)
4. X/Y/Z-axis DRO
5. Alloy luxury hung up control panel

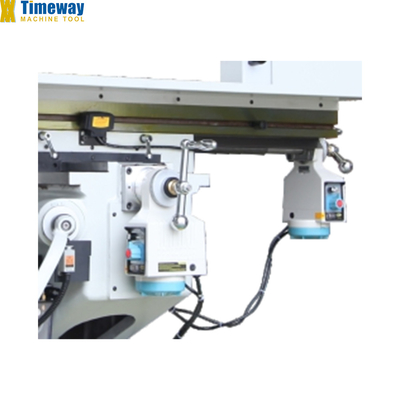

6. X-axis power feed
7. Y-axis power feed
8. X-axis gearbox power feed
9. Y-axis gearbox power feed
10. X/Y-axis ball-screw
11. Z-axis elevating motor (only forTM250,TM250A)
12. R8 collets
13. NT40 collets
14. 6” machine vise
15. 52pc clamping kits
16. Air draw bar
17. Electric oil pump
2. Variable speed milling head
3. Rotating table (±35º) (TM250A, TM300A)
4. X/Y/Z-axis DRO
5. Alloy luxury hung up control panel
6. X-axis power feed
7. Y-axis power feed
8. X-axis gearbox power feed
9. Y-axis gearbox power feed
10. X/Y-axis ball-screw
11. Z-axis elevating motor (only forTM250,TM250A)
12. R8 collets
13. NT40 collets
14. 6” machine vise
15. 52pc clamping kits
16. Air draw bar
17. Electric oil pump
Specification
SPECIFICATION | UNIT | TM300A |
Table size | mm | 305x1370/305x1500 |
Table longitudinal travel | mm | 880/1000 |
Table cross travel | mm | 390 |
Knee vertical travel | mm | 460 |
Knee rapid feed speed | mm/min | 345 |
Vertical spindle motor power | HP | 3HP (opt.: 5HP) |
Vertical spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (opt.: variable speed) |
Vertical spindle taper | - | R8 (opt.: ISO30/40) |
Vertical spindle quill travel | mm | 127 |
Vertical spindle quill feed rate | mm/r | 0.04/0.08/0.15 |
Vertical spindle swivel angle | ° | ±90° |
Vertical spindle tilting angle | ° | ±45° |
Vertical spindle distance spindle end to table | mm | 30-490 |

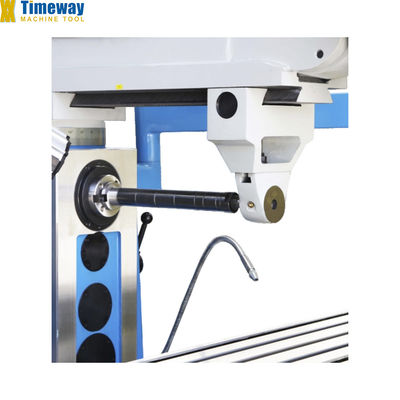

Horizontal spindle motor power | HP | 5HP |
Horizontal spindle speed | rpm | 12steps:40/57/77/110/150/215/240/340/460/650/900/1280 |
Horizontal spindle taper | - | ISO40 |
Horizontal spindle distance spindle center to table | mm | -135-355 |
Horizontal spindle distance spindle center to ram | mm | 185 |
Ram cross travel | mm | 500 |
Ram swivel angle | ° | 180° |
Worktable swivel angle | ° | ±35° |
Net weight | kg | 1640/1680 |
Packing size (LxWxH) One | mm | 160x170x220 |
