Industry CNC Metal Vertical Universal Torreta Fresadora KTM230 with ±90° Swivel Angle
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | KTM230 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,660.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 550/740 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 103 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Weight (KG): | 1100 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Turret Milling Machine |
| After-sales Service Provided: | Provided | Table Size: | 230x1067/230x1246mm |
| Longitudinal Travel (X): | 550/740mm | Cross Travel (Y): | 300mm |
| Vertical Travel (Z): | 103mm | Mill Head Swivel Angle: | ±90° |
| Distance From Spindle To Table: | 0-350mm | Main Motor Power: | 2.2kw |
| Gross Weight (One): | 1100kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction Works , Energy & Mining |
| Showroom Location: | Kenya, South Korea, Chile, Colombia, Japan, Australia, Canada, United Kingdom, Italy, Germany, Indonesia, India, Russia, Thailand | Core Components: | Motor, Engine |
| Year: | 2024 | ||
Product Description
You can click on the picture to view the products you are interested in
One-Stop Shopping
Product Description

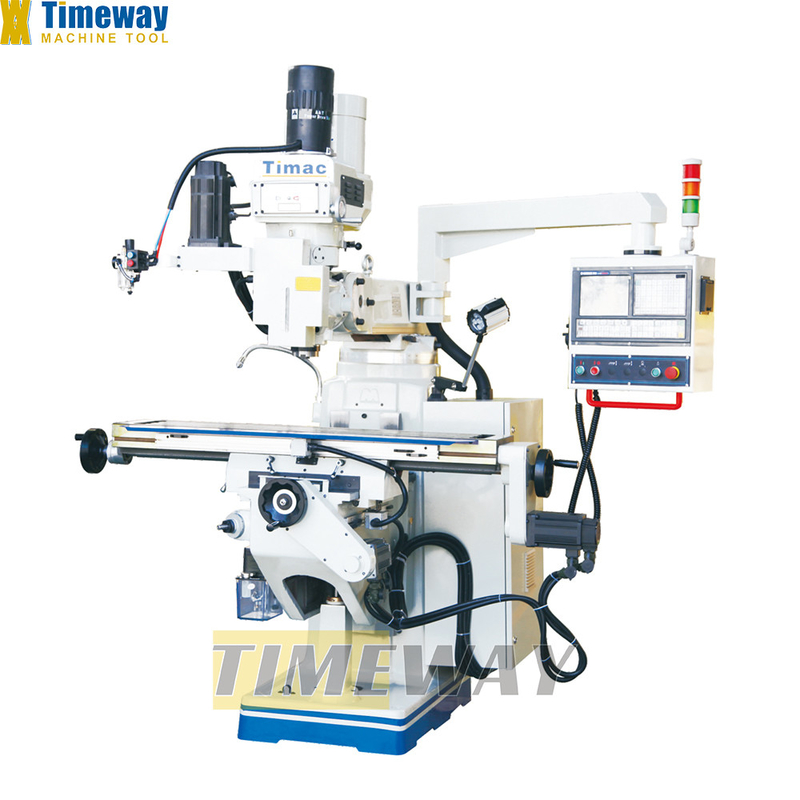

Turret Milling Machine KTM230

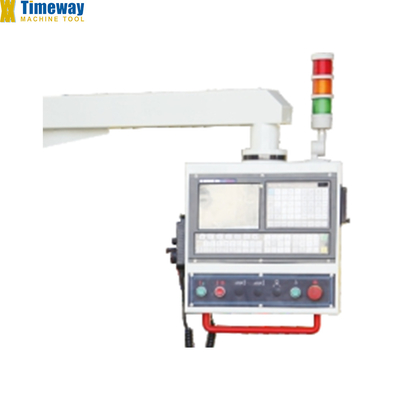

Complete with GSK CNC system, FANUC or SIEMENS for choice.

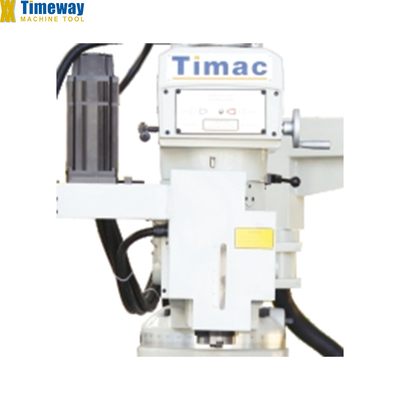

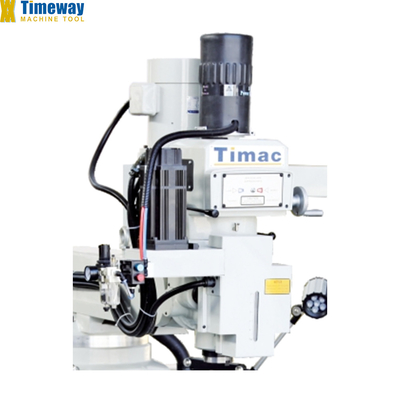

Mill head can be turned, tilted and swivelled making it extremely versatile.

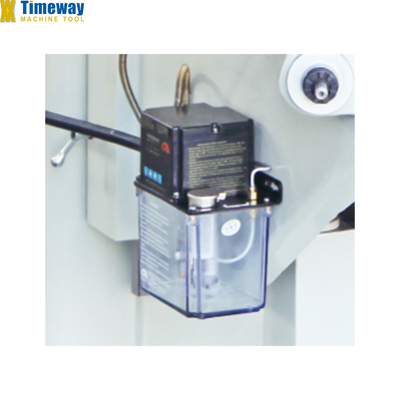

Central lubrication system comes standard.

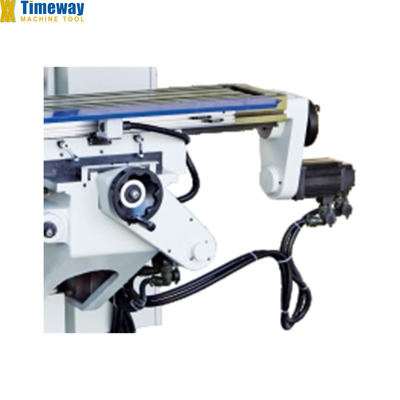

Feed and rapid feed in X, Y and Z-axis by driven servo motor.
Standard Accessories:
Setp Pulley Mill Head
Draw Bar
Working Lamp
Oil Pump
Coolant Pump
Chip Collecting Tray
Electric Cabinet
Toolbox And Tools
Optional Accessories:
Variable Speed Mill Head
Inverter Mill Head
Air Draw Bar
Slotting Head
DRO
Gear Box Power Feed
Power Feed
Vise
8pcs/set Collet Chuck
15pcs/set Collet Chuck
58pcs/set Clamping Kit
Universal Dividing Head
H/V rotary table
Tilting Rotary Table
Spindle Guard
Hung Up Panel Bracket
Luxury Panel Bracket
Luxury Al-alloy Panel Bracket
Table Guard
Luxury Table Guard
Quill Feed Ruler
Table Up-down Motor
Auto. Oil Pump
Plastic Splash Guard
Specification
SPECIFICATION | UNIT | KTM230 |
Table size | mm | 230x1067/230x1246 |
T-slot (No./width) | - | 3/16 |
Loading capacity | kg | 200 |
Longitudinal travel (X) | mm | 550/740 |
Cross travel (Y) | mm | 300 |
Spindle quill travel (Z) | mm | 103 |
X/Y/Z-axis rapid feed speed | mm/min | 5000 |
X/Y/Z-axis servo motor power | kw | 1 |
Knee vertical travel | mm | 350 |
Ram travel | mm | 315 |
Distance from spindle to table | mm | 0-350 |
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 |
Spindle taper | - | R8 (Optional: ISO40) |
Main motor power | kw | 2.2 |
Mill head swivel angle | ° | ±90° |
Mill head tilting angle | ° | ±45° |
CNC controller | - | FANUC or SIEMENS or GSK |
Package size (LxWxH) | cm | 165 x 190 x 200 |
Gross weight | kg | 1100 |
