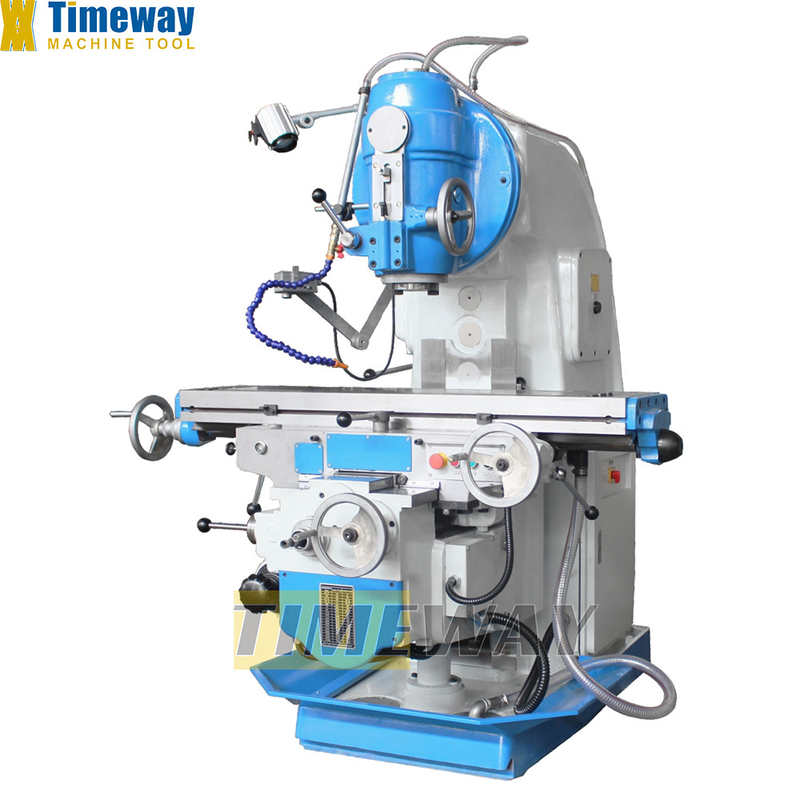

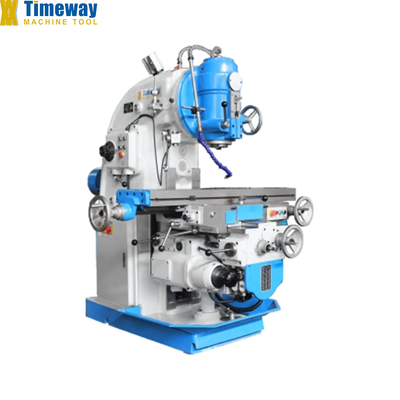

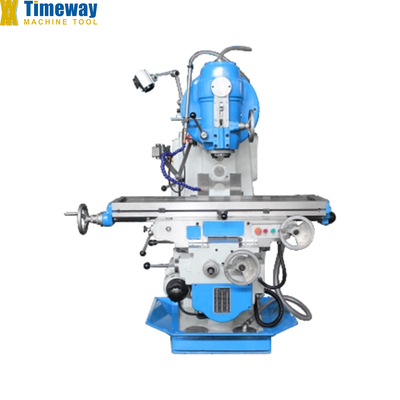

320x1325mm Table Size Vertical Knee-type Milling Machine VM320W for Metal Fabrication
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | VM320W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 700/680 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 255/240 | Table Travel (Z) (mm): | 350/330 |
| Spindle Taper: | 7:24 ISO50 | Range Of Spindle Speed(r.p.m): | 30 - 1500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 7.5 |
| Dimension(L*W*H): | 2294*1780*2150mm | Weight (KG): | 2860 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Vertical Knee-type Milling Machine | Machine Type: | Veritcal |
| After-sales Service Provided: | Provided | Function: | Machining Metal |
| Table Size: | 320x1325mm | T-slot (No./width/pitch): | 3/18/90mm |
| Distance From Spindle Nose To Table: | 60-410mm | Spindle Bore Diameter: | 29mm |
| Machine Weight: | 2860kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Morocco, Kenya, South Korea, Sri Lanka, Kazakhstan, Uzbekistan, Tajikistan, Malaysia, Australia, United Kingdom, Italy, Germany, Viet Nam, Indonesia, Mexico, Spain | Core Components: | Bearing, Motor |
| Year: | 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
Draw bar
Coolant system
Chip tray
Work lamp
Lubrication system
Tools and Tool box
Operator manual
Coolant system
Chip tray
Work lamp
Lubrication system
Tools and Tool box
Operator manual
OPTIONAL ACCESSORIES:
2/3-axis digital readout
58pcs clamping kit
Machine vise
Spindle protection guard
Table protection guard
Dividing head
58pcs clamping kit
Machine vise
Spindle protection guard
Table protection guard
Dividing head
Rotary table
Reducing sleeve
Reducing sleeve
Specification
SPECIFICATION | UNIT | VM320W |
Table size | mm | 320x1325 |
T-slot (No./width/pitch) | mm | 3/18/90 |
Distance from spindle nose to table | mm | 60-410 |
Longitudinal travel(manual/auto) | mm | 700/680 |
Cross travel(manual/auto) | mm | 255/240 |
Vertical travel(manual/auto) | mm | 350/330 |
Mill head swivel angle | ° | ±45° |
Spindle bore diameter | mm | 29 |
Spindle taper | - | 7:24 ISO50 |
Spindle speed range | r/min | 30-1500 |
Spindle speed step | steps | 18 |
Table longitudinal feed speed (X) | mm/min | 23.5-1180 |
Table cross feed speed (Y) | mm/min | 15-786 |
Table vertical feed speed (Z) | mm/min | 8-394 |
Feed speed steps (X/Y/Z) | steps | 18 |
Rapid feed speed(X/Y/Z) | mm/min | 2300/1540/770 |
Main motor power | kw | 7.5 |
Feed motor power | kw | 1.5 |
Machine dimensions (Lx WxH) | mm | 2294x1780x2150 |
Machine weight | kg | 2860 |
