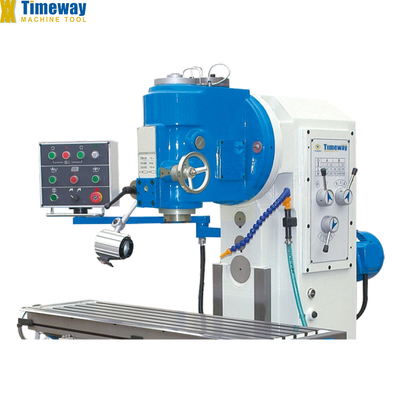

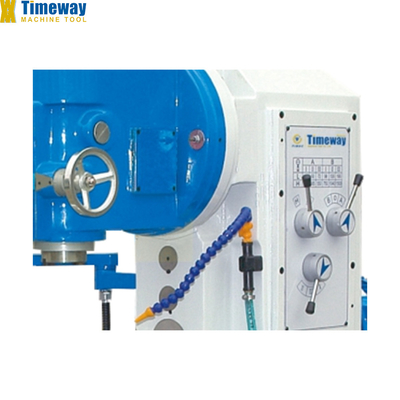

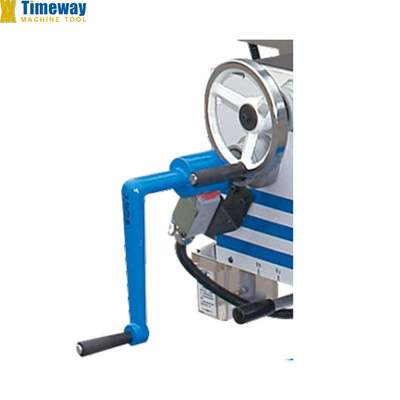

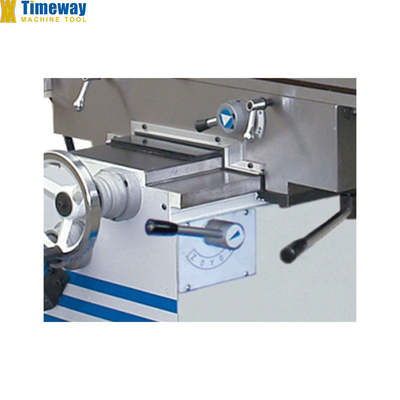

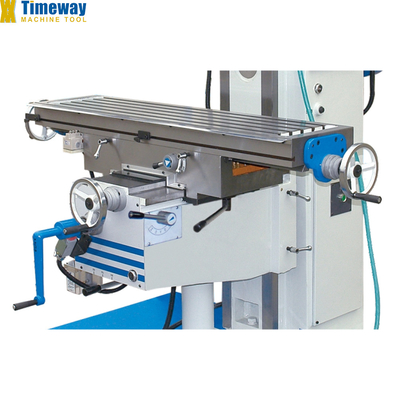

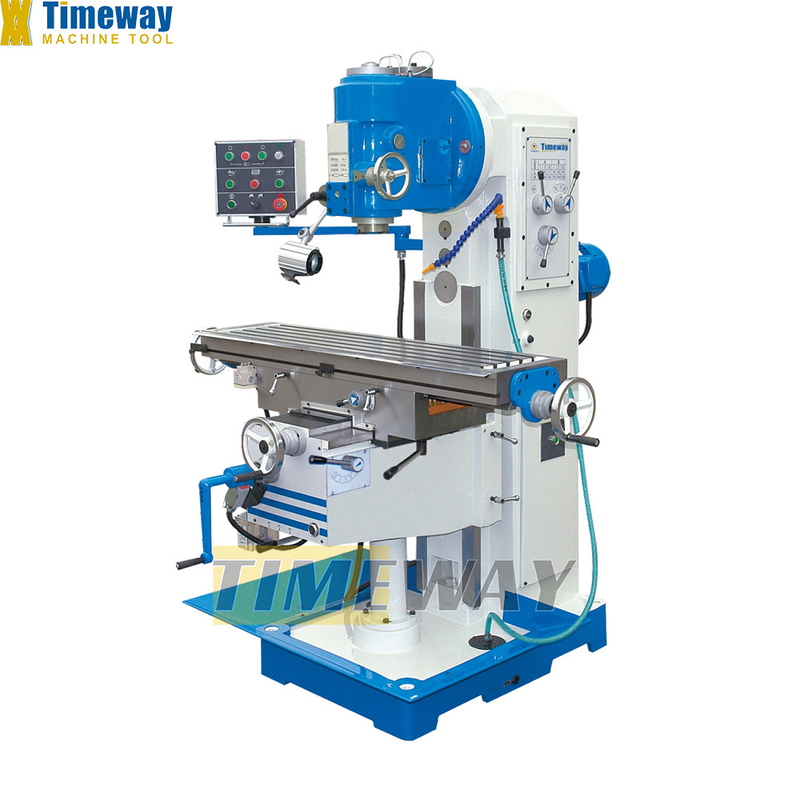

Servo V30 Vertical Knee-type Milling Machine Automatic and Rapid Feed with Competitive
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | Servo V30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 720/300/400 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 720/300/400 | Table Travel (Z) (mm): | 720/300/400 |
| Spindle Taper: | 7:24 ISO40 | Range Of Spindle Speed(r.p.m): | 35 - 1500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 7.5 |
| Dimension(L*W*H): | 1720*1680*1810mm | Weight (KG): | 1500 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Vertical Knee-type Milling Machine | Machine Type: | Veritcal |
| After-sales Service Provided: | Provided | Function: | Machining Metal |
| Table Size: | 1270x300mm | T-slot (No./width/pitch): | 3/14/80mm |
| Distance From Spindle Nose To Table: | 25-425mm | Main Motor Power: | 3kw |
| Machine Weight: | 1500kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Morocco, Kenya, South Korea, Sri Lanka, Kazakhstan, Uzbekistan, Tajikistan, Malaysia, Australia, Italy, Germany, Viet Nam, Philippines, Indonesia, Mexico, Russia, Spain | Core Components: | Bearing, Motor, Gear |
| Year: | 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
Draw bar
Coolant system
Chip tray
Work lamp
Lubrication system
Tools and Tool box
Operator manual
Coolant system
Chip tray
Work lamp
Lubrication system
Tools and Tool box
Operator manual
OPTIONAL ACCESSORIES:
2/3-axis digital readout
58pcs clamping kit
Machine vise
Spindle protection guard
Table protection guard
Dividing head
58pcs clamping kit
Machine vise
Spindle protection guard
Table protection guard
Dividing head
Rotary table
Reducing sleeve
Reducing sleeve
Specification
SPECIFICATION | UNIT | Servo V30 |
Table size | mm | 1270x300 |
T-slot (No./width/pitch) | mm | 3/14/80 |
Table travel (X/Y/Z) | mm | 720/300/400 |
Distance from spindle nose to table | mm | 25-425 |
Distance from spindle axis to column | mm | 285 |
Spindle quill travel | mm | 70 |
Spindle taper | - | 7:24 ISO40 |
Spindle speed range | r/min | 35-1500 |
Spindle speed step | steps | 12 |
Table longitudinal feed speed (X) | mm/min | 30-830 |
Table cross feed speed (Y) | mm/min | 30-830 |
Table vertical feed speed (Z) | mm/min | 23-625 |
Feed speed steps (X/Y/Z) | steps | 8 |
Rapid feed speed (X/Y/Z) | mm/min | 1335/1335/1000 |
Mill head swivel angle | ° | ±30° |
Main motor power | kw | 3 |
Servo feed motor torque | Nm | 10 |
Machine dimensions (Lx WxH) | mm | 1720x1680x1810 |
Machine weight | kg | 1500 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
