M250A Turret Milling Machine for Metal 380mm Table Travel 2024 Industrial Milling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | M250A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 800/900 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 380 | Table Travel (Z) (mm): | 350 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Dimension(L*W*H): | 1516x1550x2080mm | Weight (KG): | 1280 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Turret Milling Machine | After-sales Service Provided: | Provided |
| Table Size: | 254x1270/254x13700mm | Longitudinal Travel (X): | 800/900mm |
| Cross Travel (Y): | 380mm | Vertical Travel (Z): | 350mm |
| Mill Head Swivel Angle: | ±90° | Distance From Spindle To Table: | 0-400mm |
| Main Motor Power: | 2.2kw | Gross Weight (One): | 1280kg |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction Works , Energy & Mining | Showroom Location: | Kenya, South Korea, Chile, Colombia, Japan, Australia, Canada, United Kingdom, Italy, Germany, Indonesia, India, Russia, Thailand |
| Core Components: | Motor, Engine | Year: | 2024 |
Product Description
You can click on the picture to view the products you are interested in
One-Stop Shopping
Product Description

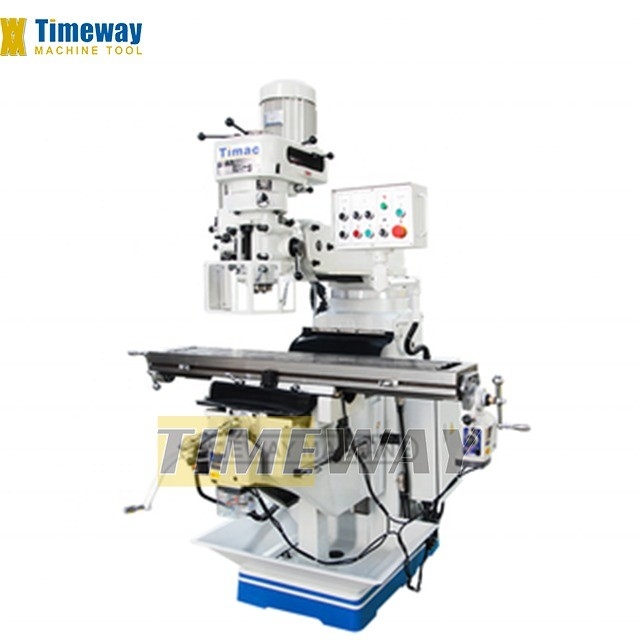

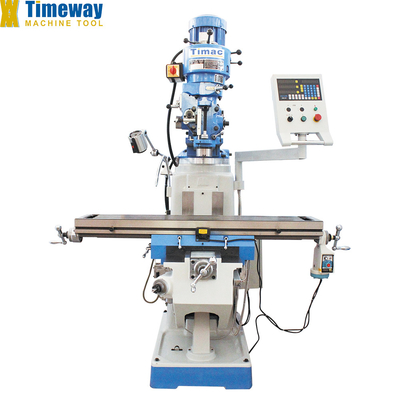

Turret Milling Machine M250A

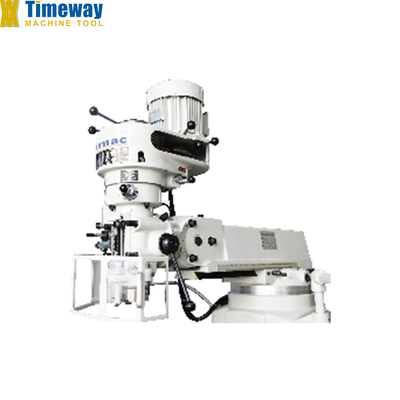

Swivelable mill head from -90° to +90° allows for various operations.
Mill head can be turned, tilted and swivelled making it extremely versatile.
These robust and stable universal milling machines are ideal for drilling and milling simple to difficult workpieces in single part production, repair shop, training etc.
All milling machines are also available with optional stepless mill head or inverter mill head, steplessly adjustable spindle speed with mechanic spindle brake.

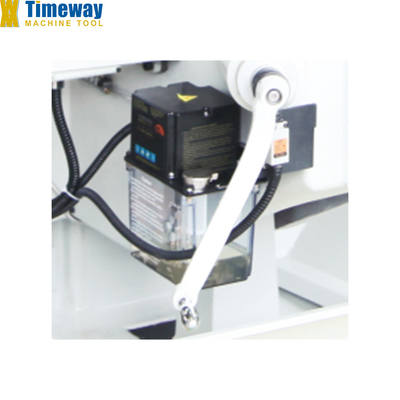

Standard lubrication system for all guideways; Powerful coolant device included in machine base.
Specification
SPECIFICATION | UNIT | M250A | ||
Table size | mm | 254x1270/254x1370 | ||
Longitudinal travel (X) | mm | 800/900 | ||
Cross travel (Y) | mm | 380 | ||
Vertical travel (Z) | mm | 350 | ||
T-slot (No./width) | mm | 3/16 | ||
Ram travel | mm | 470 | ||
Distance from spindle to table | mm | 0-400 | ||
Spindle taper | - | R8 (Optional : ISO30/ISO40) | ||
Spindle quill travel | mm | 127 | ||
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) | ||
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 | ||
Main motor power | kw | 2.2 | ||
Mill head swivel angle | ° | ±90° | ||
Mill head tilting angle | ° | ±45° | ||
X/Y/Z-axis guide type | - | ▲▲▲ | ||
Dimension of package(One) | mm | 1516x1550x2080 | ||
Gross weight (One) | kg | 1280 | ||
Notes: "▲" means double dovetail guideway; "■" means rectangular guideway. | ||||
