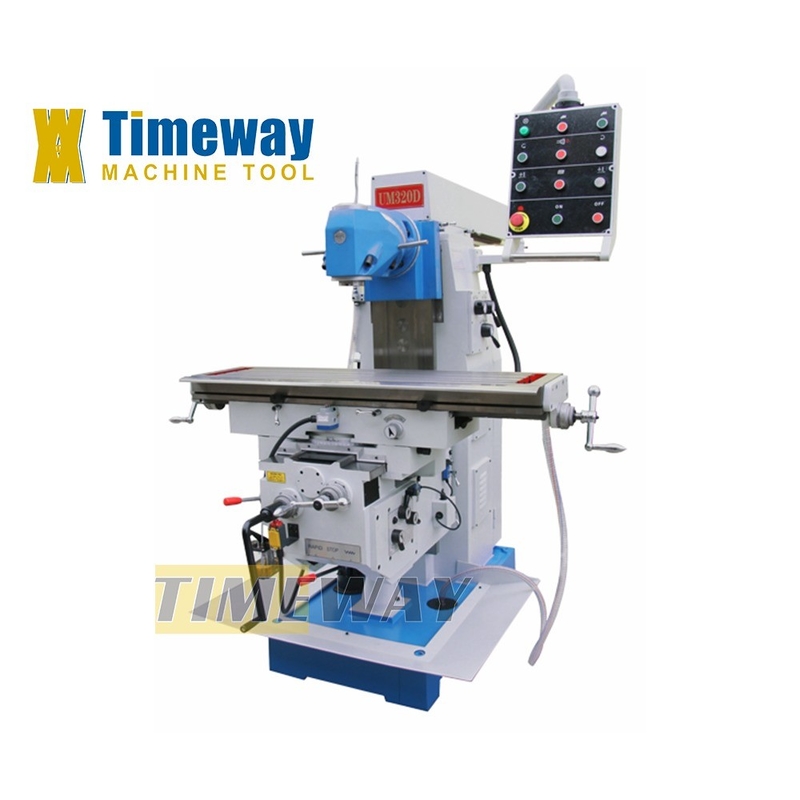

UM320D Horizontal Knee-type Milling Machine for Medium Duty Machining Weight KG 1550
Product Details:
| Place of Origin: | China |
| Model Number: | UM320D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 350 |
| Spindle Taper: | ISO40 (V) | Range Of Spindle Speed(r.p.m): | 40 - 1300 R.p.m |
| Type: | Horizontal | Spindle Motor Power(kW): | 2.2 |
| Weight (KG): | 1550 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Universal Milling Machine |
| Machine Type: | Knee-type | After-sales Service Provided: | 1 Year |
| CNC Or Not: | Normal | Material: | Rigid, Qualitative |
| Longitudinal Travel (X): | 600mm | Cross Travel (Y): | 300mm |
| Vertical Travel (Z): | 350mm | Loading Capacity: | 300kg |
| Table Size: | 320 1250mm | Number Of Axes: | 3 |
| Condition: | New | Showroom Location: | South Africa, Australia, Canada, United Kingdom, Italy, France, Germany, Russia, Spain |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Core Components: | Other |
Product Description
Product Description
Specification
Specification | |

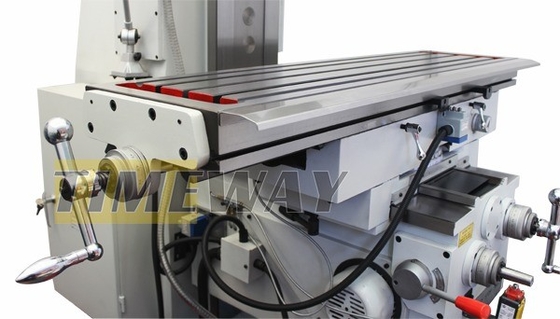

Table size | 320x1250mm |
Longitudinal travel (X) | 600mm |
Cross travel (Y) | 300mm |
Vertical travel (Z) | 350mm |
T-slots | 3mm |
Loading capacity | 300kg |
Loading capacity | ±45° |
Distance from spindle center to table | 0-400mm |

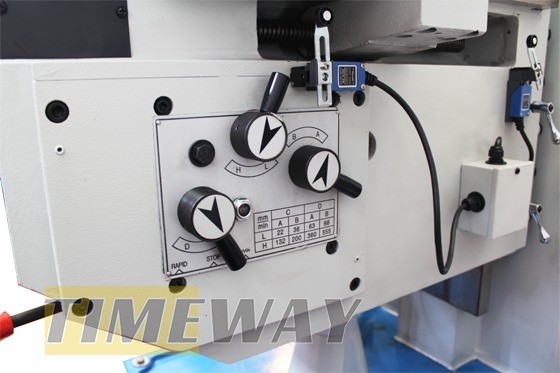

X-axis feed speed | 22-555 (8)mm/min |
Y-axis feed speed | 22-555 (8)mm/min |
Z-axis feed speed | 17-190 (8)mm/min |
X-axis rapid feed speed | 1080mm/min |
Y-axis rapid feed speed | 1080mm/min |
Z-axis rapid feed speed | 590mm/min |
Spindle taper | ISO40 (V); ISO40 (H) |

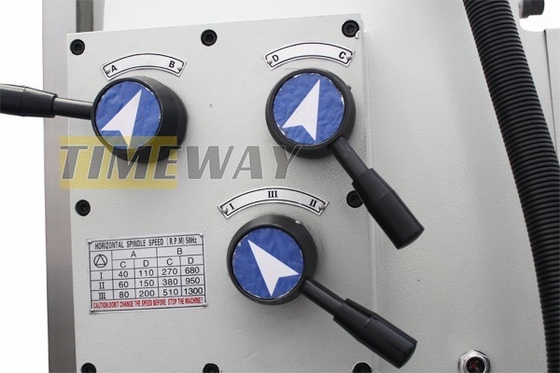

Spindle speed (steps) | 40-1300 (12)rpm |
Main motor power | 2.2kw |
Feed motor power | 0.75kw |
Coolant pump power | 0.04kw |
Net weight/gross weight | 1550kg |
Machine dimensions (LxWxH) | 1700x1500x2150mm |
STANDARD ACCESSORIES:
Draw bar

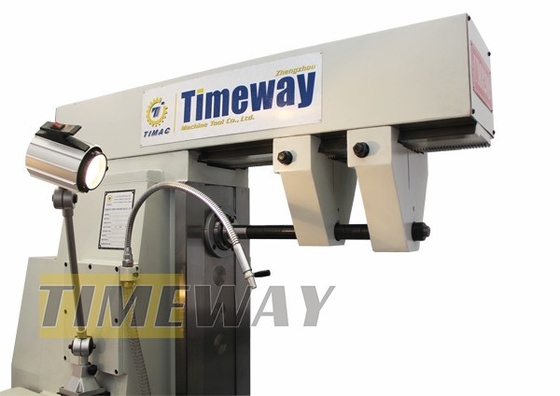

Horizontal mill arbor
Coolant system
Chip tray
Work lamp
Lubrication system
Tools and Tool box
Operator manual
Horizontal mill arbor
Coolant system
Chip tray
Work lamp
Lubrication system
Tools and Tool box
Operator manual
OPTIONAL ACCESSORIES:
2/3-axis digital readout
58pcs clamping kit
Machine vise
Spindle protection guard
Table protection guard
Dividing head
Rotary table
Reducing sleeve
58pcs clamping kit
Machine vise
Spindle protection guard
Table protection guard
Dividing head
Rotary table
Reducing sleeve
