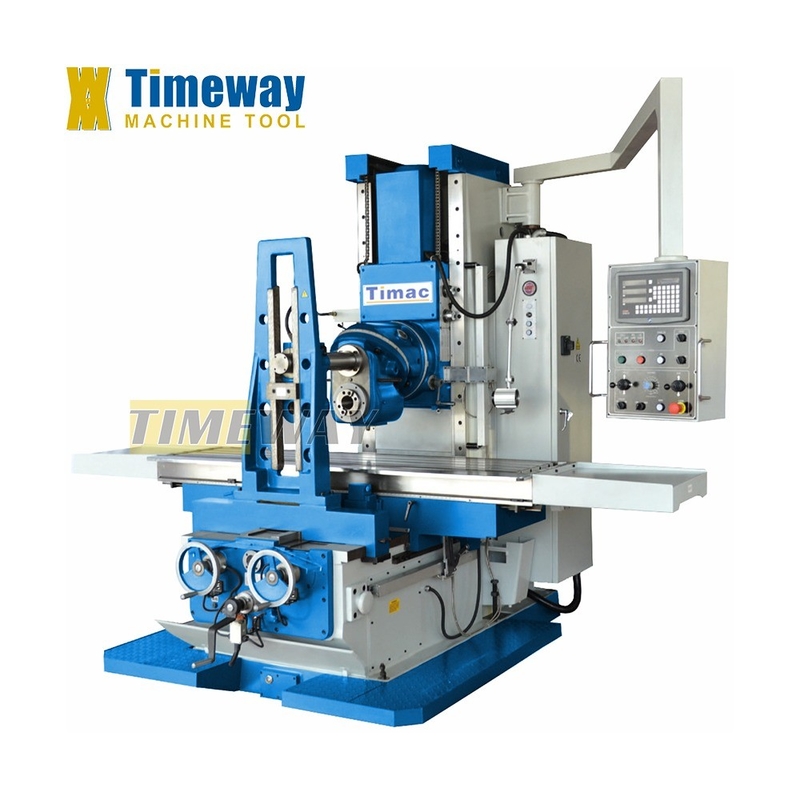

BM715 Vertical Milling Machine for Metal 1500x650mm Table Travel and 7300KG Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 650 | Table Travel (Z) (mm): | / |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 6 - 1500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 11 |
| Weight (KG): | 7300 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Bed Type Milling Machine |
| Machine Type: | Conventional Milling Machine | CNC Or Not: | Normal |
| Precision: | Precision | After Sales Support: | Online |
| Longitudinal Travel (X): | 1500mm | Cross Travel (Y): | 650mm |
| T Slot (No./width/distance): | 4/20/100mm | Main Motor Power: | 11kw |
| Number Of Axes: | 3 | Condition: | New |
| Showroom Location: | South Africa, Australia, Canada, United Kingdom, Italy, France, Germany, Russia, Spain | Table Travel (mm): | 1500x650mm |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Core Components: | Other |
Product Description
Product Description
Features：

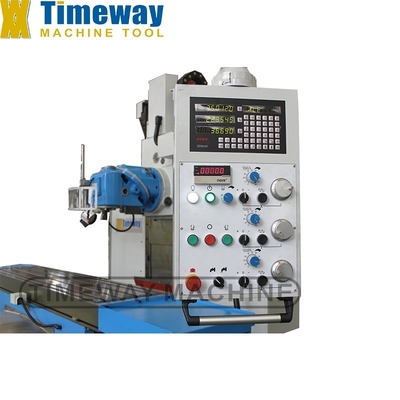

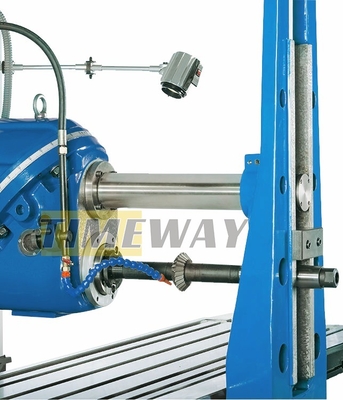

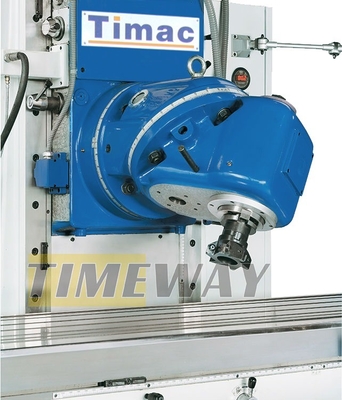

An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results. Extra wide guideways ensure maximum stability and precision at high loads. Extra long table travel distance (2500 mm) and large table set-up area (2800 x 500 / 2800 x 700mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition. Wide spindle speed ranges from 36 to 1340 rpm with 12steps speed. Control panel on a long extending arm that can be ideally positioned by the operator. This universal cutter head features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale. This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position. The milling machine includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bedtype milling machine design for machining with long cutter arbors.
Specification
Specifications | BM715 |
Table size | 500x2100mm |
Longitudinal travel (X) | 1500mm |
Cross travel (Y) | 650mm |
T slot (No./width/distance) | 4/20/100mm |
Spindle taper | ISO50 |
Verical spindle speed | 6-1500 (2steps)rpm |
Distance from horizontal spindle axis to table | 8-660mm |
Distance from vertical spindle axis to column | 610mm |
Distance from vertical spindle nose to table | 0-650mm |
X/Y-axis feed speed | 2.5-3000mm/min |
X/Y-axis rapid feed speed | 6000mm/min |
Z-axis feed speed | 2.5-2500mm/min |
Z-axis rapid feed speed | 3000mm/min |
Main motor power | 11kw |
X/Y/Z-axis feed motor torque | 0.09NW |
Coolant pump power | 0.09kw |
Machine dimensions (L×W×H) | 3220x2420x2800mm |
Machine weight | 7300kg |
STANDARD ACCESSORIES:
Draw bar
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual
