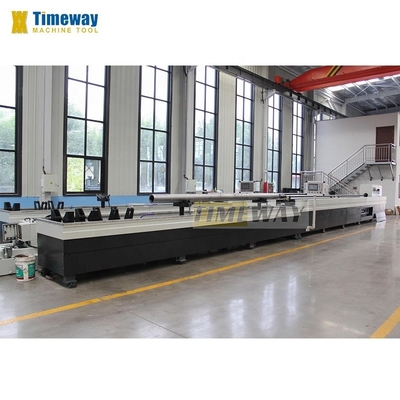

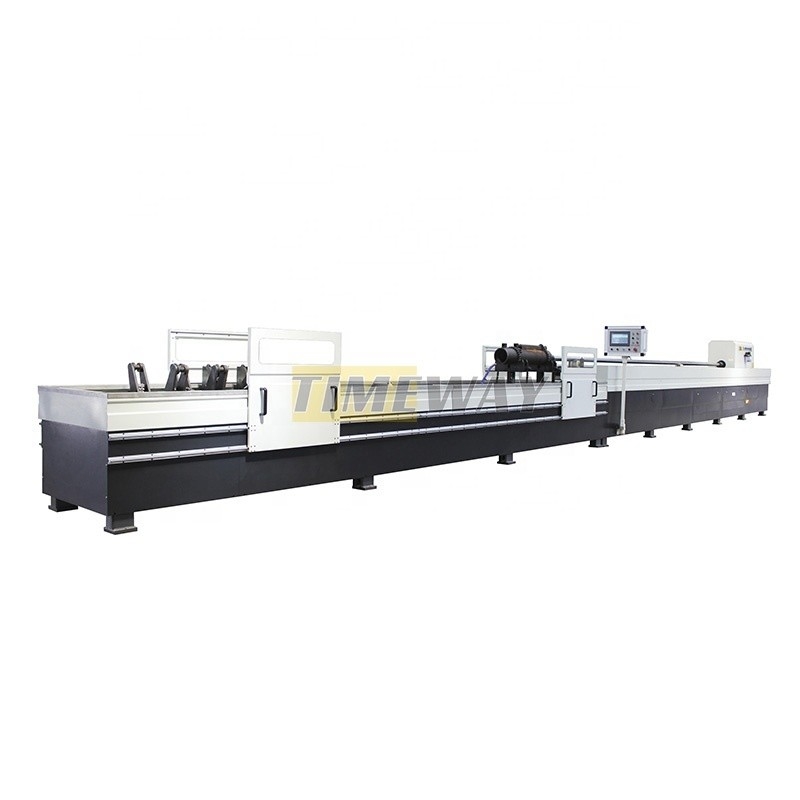

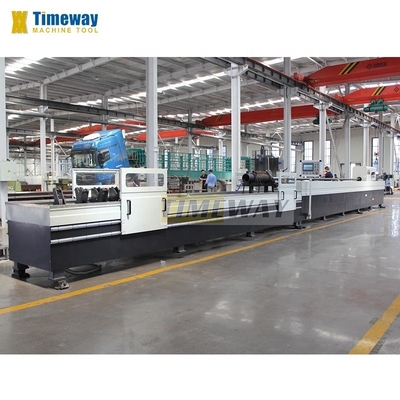

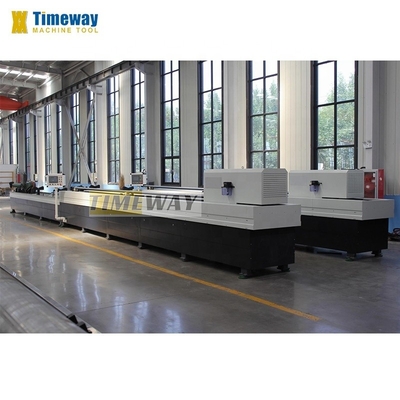

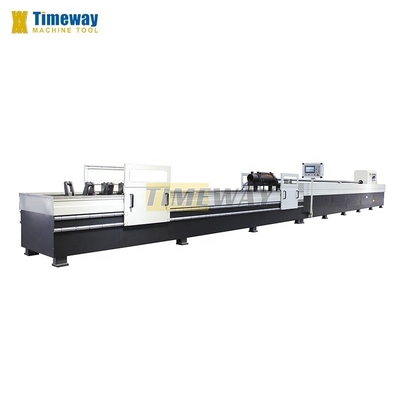

500mm Spindle Center Height Deep Hole Horizontal Honing Machine for Cylinder Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $58,660.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 6700 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Thailand, Argentina, South Korea, South Africa | Product Name: | Deep Hole Honing Machine |
| Model: | DHK500 | After-sales Service Provided: | Yes |
| Usage: | Cylinder Processing | Voltage: | 380/220V |
| Honing Diameter Range: | 100~500mm | Max. Honing Depth: | 1000-15000mm |
| Spindle Center Height: | 500mm | Cooling Pump Flow: | 100L/min |
| Oil Tank Volume Of Cooling System: | 300Mpa | ||
Product Description
Products Description
Deep Hole Honing Machine DHK500
Specification | Unit | DHK-350 | DHK-500 | DHK-800 |
Honing diameter range | mm | Φ80-Φ350 | Φ100-Φ500 | Φ350-Φ800 |
Max. honing depth | mm | 1000-15000 | 1000-15000 | 1000-15000 |
Spindle center height | r/min | 350 | 500 | 650 |
Spindle speed range of honing bar box | mm | 20-200(Stepless) | 10-250(Stepless) | 20-250(Stepless) |
Workpiece clamping dia. range | mm | Φ100-Φ420 | Φ100-Φ650 | Φ400-Φ1000 |
Carriage reciprocating speed range | m/min | 1-20(Stepless) | 1-20(Stepless) | 1-20(Stepless) |
Cooling pump flow | L/min | 100 | 100 | 200, AB 50 |
Oil tank volume of cooling system | Mpa | 300 | 300 | 500 |
Honing head expansion pressure | kw | 0.3-4(Variable) | 0.3-4(Variable) | 0.3-4(Variable) |
Spindle motor power of honing bar box | kw | 11(AC servo) | 11(AC servo) | 11(AC servo) |
Reciprocating motor power | kw | 5.5(AC servo) | 5.5(AC servo) | 5.5(AC servo) |
Clamping and expansion motor power of honing head | kw | 0.75(AC servo) | 0.75(AC servo) | 0.75(AC servo) |
Cooling pump motor power | kw | 2.2 | 2.2 | 2.2 |
Grinding rod box Reciprocating system of carriage Cooling system Workpiece clamping Bed part Electrical part Paper bag Filtering system | can be customized |
Machine Details
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
