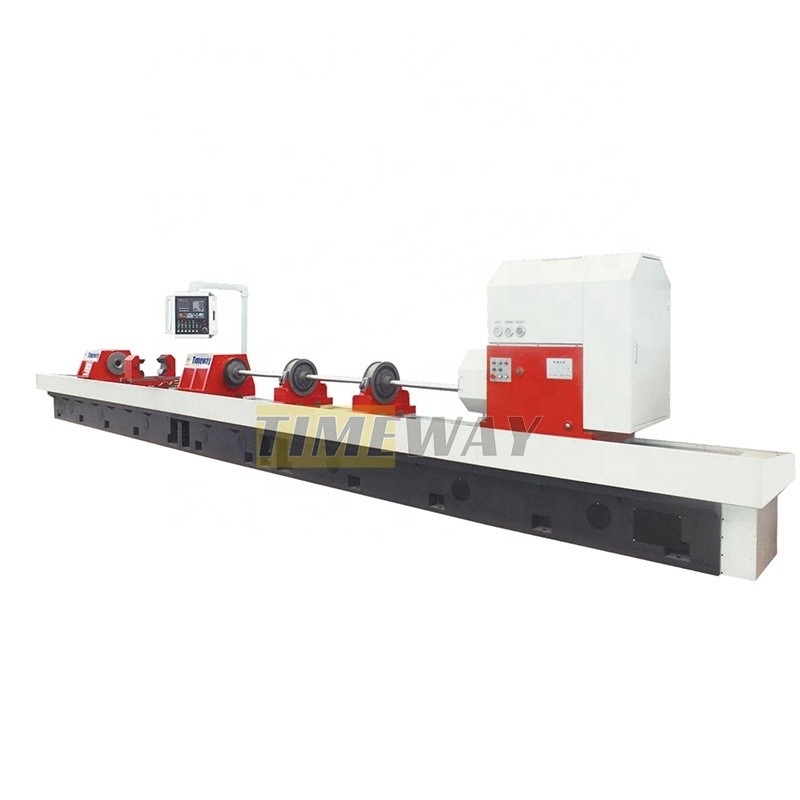

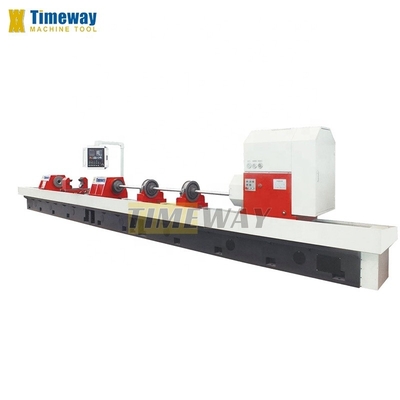

Customized CNC Skiving Roller Burnishing Machine For Pipe Boring Dia. Range 35-100 mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | DBSK-100, DBSK-200, DBSK-360 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $200,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Column Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 100 Mm | Range Of Spindle Speed(r.p.m): | 5 - 1200 R.p.m |
| CNC Or Not: | CNC | Voltage: | 220V/380V |
| Power (kW): | 30 Kw | Weight (KG): | 4000 KG |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Showroom Location: | Egypt, Canada, Turkey, United States, Philippines, Indonesia, India, Thailand, Morocco | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Other | Machine Type: | CNC Skiving Roller Burnishing Machine |
| CNC Or Normal: | CNC | Boring Dia. Range: | 35-100 Mm |
| Processing Depth Range: | 1-12 M | Machine Guideway Width: | 500 Mm |
| Spindle Center Height: | 300 Mm | Main Motor Power: | 30 Kw |
| Feed Speed Range: | 5-3000 Mm/min(stepless) | Air Pressure: | ≥0.4 MPa |
| Numerical Control System: | SIEMENS 808 | Port: | China Port |
Product Description
Products Description
Specification | Unit | DBSK-100 | DBSK-200/250 | DBSK-360 | ||
Boring dia. range | mm | Φ35-Φ100 | Φ40-Φ200/250 | Φ60-Φ360 | ||
Processing depth range | m | 1-12 | 1-12 | 1-12 | ||
Machine guideway width | mm | 500 | 650 | 650 | ||
Spindle center height | mm | 300 | 350 | 450 | ||
The spindle speed range, grades | r/min | 5-1200(stepless) | 12-1000(Four stepless) | 60-1000 (four shifts, stepless) | ||
Main motor power | kw | 30 | 30/60 (variable frequency) | 60/75 (variable frequency) | ||
Feed speed range | mm/min | 5-3000 (stepless) | 5-3000 (stepless) | 5-3000 (stepless) | ||
Feed carriage rapid moving speed | m/min | 3-6 | 3-6 | 3-6 | ||
Workpiece clamping diameter range | mm | Φ40-Φ150 | Φ40-Φ300/Φ350 | Φ120-Φ450 | ||
The feed motor | N.m | 27 | 36 | 48 | ||
Cooling pump motor | kw | 5.5 (two group) | 5.5 (three group) | 5.5 (three group) | ||
The hydraulic pump motor | kw | 1.5kw, 1440r/min | 1.5kw, 1440r/min | |||
Cooling system rated pressure | MPa | 2.5 | 2.5 | 2.5 | ||
The cooling system flow | L/min | 200, 200 (two group) | 100, 200, 200 (three group) | 200, 200, 200 (three group) | ||
Air pressure | MPa | ≥0.4 | ≥0.4 | ≥0.4 | ||
Numerical control system | - | SIEMENS 808 | ||||
