350mm Spindle Center Height High Precision CNC Horizontal Deep Hole Tube Honing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC. TIMEWAY |
| Certification: | CE ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $90,000.00/sets >=1 sets |
| Packaging Details: | Standard Seaworthy Package or according to customer's require |
| Supply Ability: | 250 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | United States, Peru, Russia, South Korea, South Africa, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Gear | Condition: | New |
| CNC Or Not: | CNC | Voltage: | 220/380V |
| Weight (KG): | 8000 | Power (kW): | 11 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Honing Diameter Range: | 32-250mm | Max. Honing Depth: | 1000-10000mm |
| Spindle Center Height: | 350mm | Workpiece Clamping Diameter Range: | 50-350mm |
| Spindle Speed Range Of Honing Bar Box: | 50-350rpm | Feeding Speed Range: | 5-20m/min |
| Machine Type: | Horizontal Structure | Special Machine: | According To Customer's Special Require |
| Power: | As Actual Situation | Port: | China Port |
Product Description
Product Description
Deep Hole Honing Machine
Summary：
* The series CNC deep hole honing machine is the dedicated machine for honing and polishing of deep hole. Mainly for fine processing of the precision parts, it is an ideal deep hole processing machine with high precision and high efficiency.
* The modified version type of the machine can be designed according to the different demands. Absorbing the advanced experience home and abroad, this machine can realize accurate control of timing, positioning and quantifying in the process of production. With the development of high-performance abrasive and automated honing machine, the honing application range will get wider and wider.
* The modified version type of the machine can be designed according to the different demands. Absorbing the advanced experience home and abroad, this machine can realize accurate control of timing, positioning and quantifying in the process of production. With the development of high-performance abrasive and automated honing machine, the honing application range will get wider and wider.
Feature：

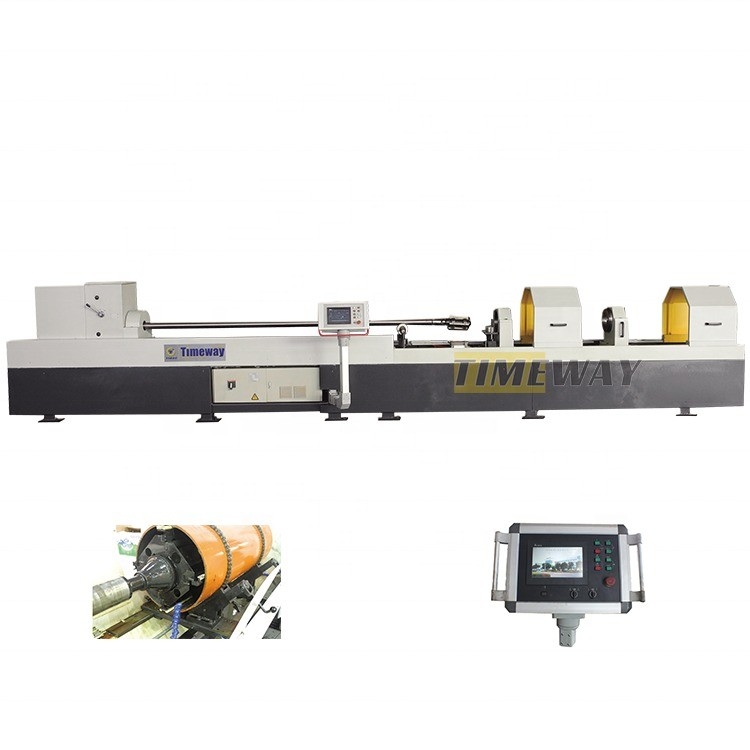

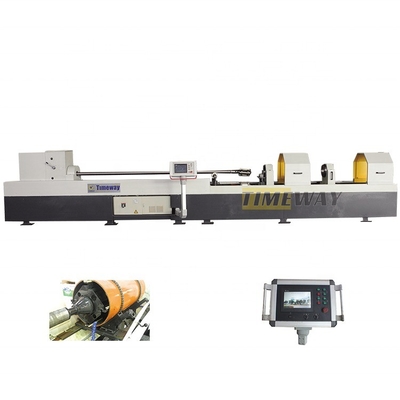

1.The machine adopts the mode of workpiece fixed, honing head rotating and reciprocating.
2.The workpiece is fixed by V-type supporting and chain locking.
3.The machine can be programmed to realize automatic operation, with setting up to honing time, reciprocation frequency and honing distance.
4. It is suitable for mass production or single maintenance production.
5..The machine selects Taiwan Delta control system with human-machine interface touch screen.
Specification

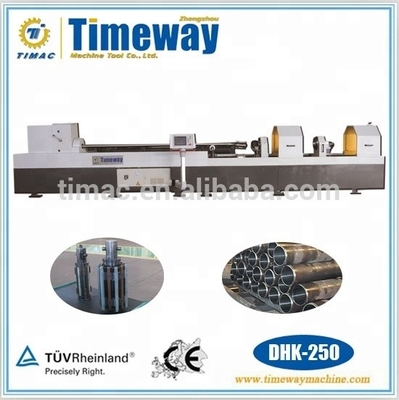

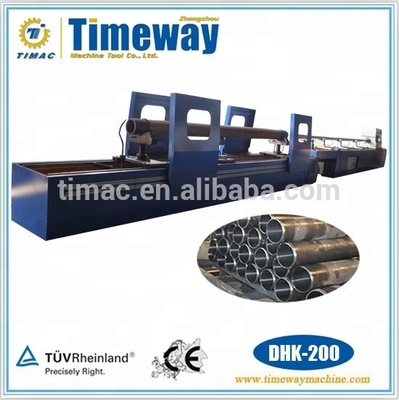

Specifications | Units | DHK-100 | DHK-200 | DHK-250 |
Honing diameter range | mm | Φ25-Φ100 | Φ28-Φ200 | Φ32-Φ250 |
Max. honing depth | mm | 1000-10000 | 1000-10000 | 1000-10000 |
Spindle center height | mm | 220 | 350 | 350 |
Spindle speed range of honing bar box | r/min | 50-375(Variable) | 50-350(Variable) | 50-350(Variable) |
Workpiece clamping dia. range | mm | Φ40-Φ200 | Φ35-Φ300 | Φ50-Φ350 |
Carriage reciprocating speed range | m/min | 1-25(Variable) | 5-20(Variable) | 5-20(Variable) |
Cooling pump flow | L/min | 100 | 100 | 50 |
Oil tank volume of cooling system | L | 600 | 600 | 600 |
Honing head expansion pressure | MPa | 0.3-4(Variable) | 0.5-4(Variable) | 0.5-4(Variable) |
Spindle motor power of honing bar box | kw | 11 | 11 | 11 |
Reciprocating motor power | kw | 5.5(AC servo) | 4.5(AC servo) | 4.5(AC servo) |
Clamping and expansion motor power of honing head | kw | 0.75(AC servo) | 0.75(AC servo) | 0.75(AC servo) |
Cooling pump motor power | kw | 2.2 | 2.2 | 2.2 |
