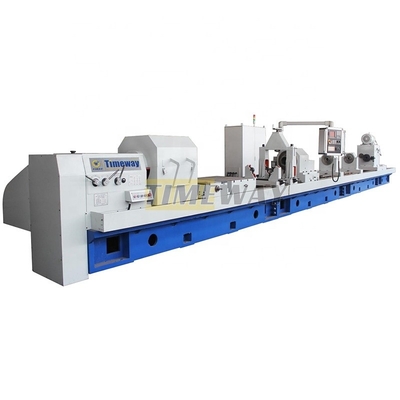

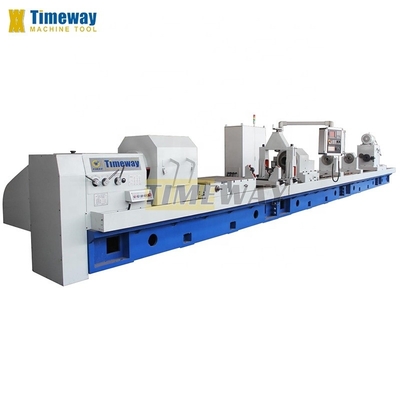

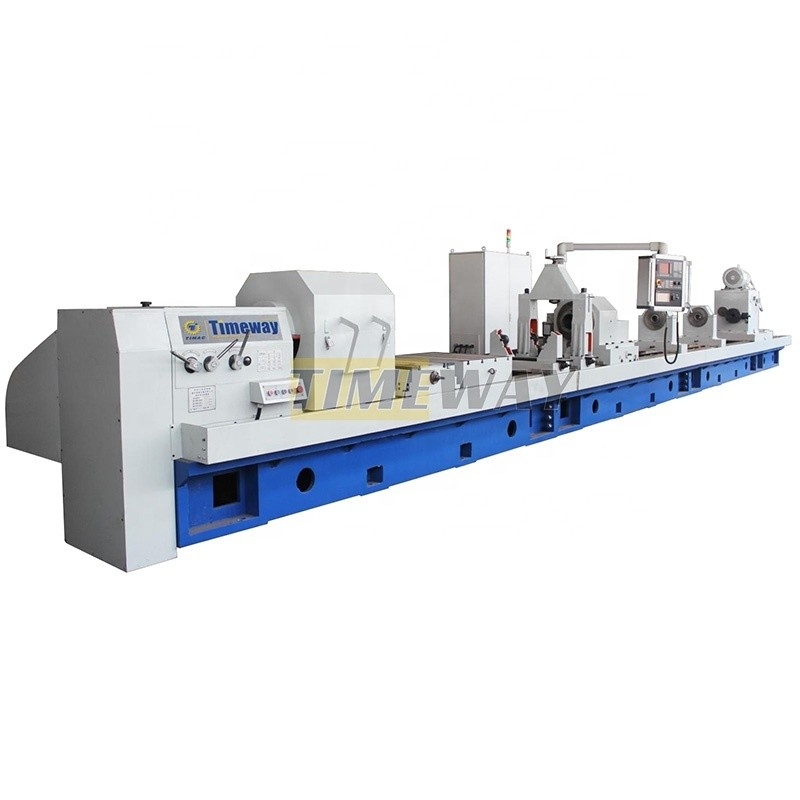

450 mm Spindle Center Height High Precision CNC Deep Hole Drilling and Boring Machine for Hydraulic Cylinder
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | DBK-350A, DBK-350 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $160,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Column Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 100 Mm | Range Of Spindle Speed(r.p.m): | 60 - 1200 R.p.m |
| CNC Or Not: | CNC | Voltage: | 220/380V |
| Power (kW): | 30 Kw | Weight (KG): | 5000 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Germany, Philippines, Brazil, Indonesia | Applicable Industries: | Machinery Repair Shops, Other |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Other | Product Type: | CNC Drilling And Boring Machine |
| Model: | DBK-350A | Keyword: | CNC |
| Max Drilling Diameter: | 100 Mm | Workpiece Clamping Dia. Range: | 120-450 Mm |
| Boring Depth Range: | 1000-15000 Mm | Spindle Center Height: | 450 Mm |
| Main Motor Power: | 30 Kw | Feed Motor Power: | 36 Nm |

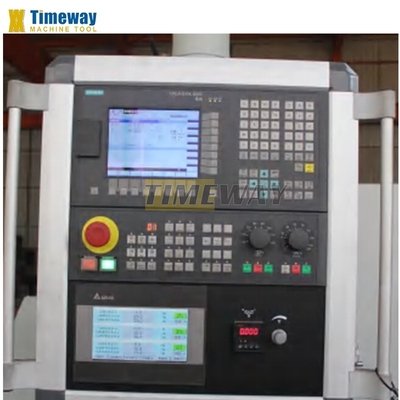

| CNC System: | Siemens 808 Or KND | Port: | China Port |
Product Description
Products Description
CNC Deep Hole Drilling and Boring Machine
Specification | Unit | DBK-350 | DBK-350A |
Drilling diameter range | mm | / | Φ30-Φ10 |
Boring diameter range | mm | Φ60-Φ350 | Φ60-Φ350 |
Boring depth range | m | 1000-15000 | 1000-15000 |
Workpiece clamping dia. range | mm | 120-450 | 120-450 |
Spindle center height | mm | 450 | 450 |
Headstock spindle hole dia. | mm | Φ75 | Φ75 |
Spindle front taper hole dia. | mm | Φ85 1:20 | Φ85 1:20 |
Drill box motor power | kw | / | 22 |
Hydraulic system rated pressure | Mpa | 6.3 | 6.3 |
