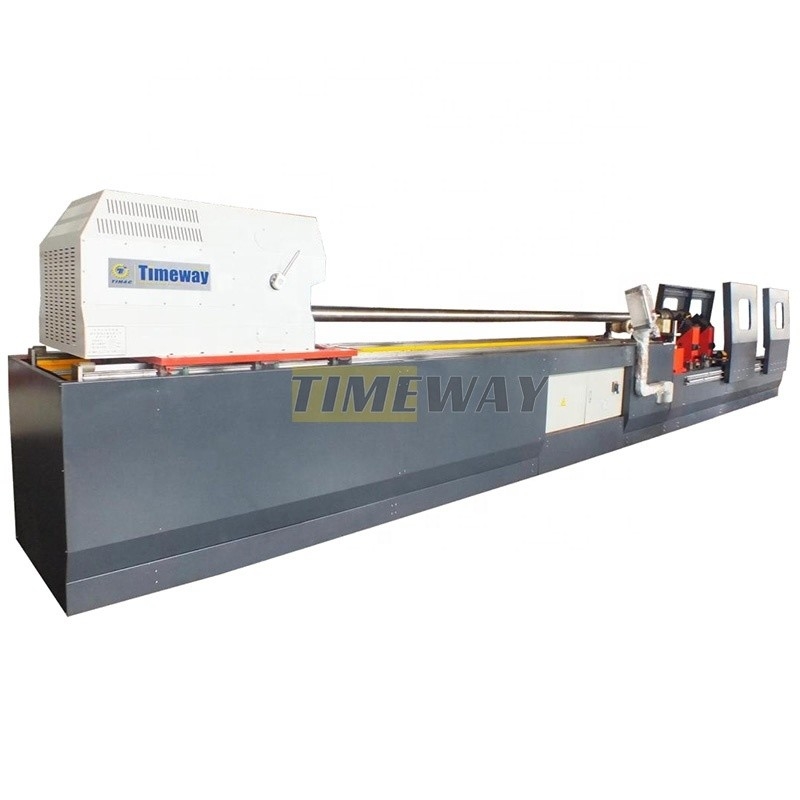

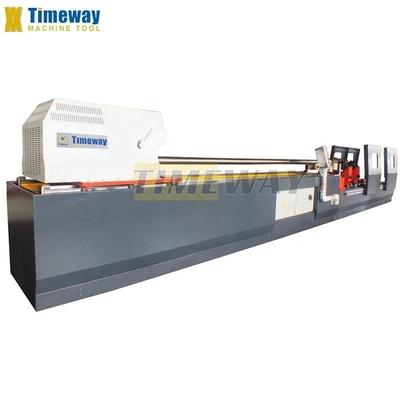

220/380V CNC Deep Hole Machine For Hydraulic Cylinder Honing 80-350 mm Diameter Range
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | DHK-350, DHK-500, DHK-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $78,888.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Bench Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 350 Mm | Range Of Spindle Speed(r.p.m): | 20 - 2000 R.p.m |
| CNC Or Not: | CNC, CNC | Voltage: | 220/380V |
| Power (kW): | 11 Kw | Weight (KG): | 4000 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | Egypt, Canada, Turkey, United States, Philippines, Brazil, Indonesia, India, Russia, Thailand, Kenya, Colombia, South Africa | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Other | Machine Type: | CNC Deep Hole Honing Machine |
| Honing Diameter Range: | 80-350 Mm | Max. Honing Depth: | 1000-15000 Mm |
| Spindle Center Height: | 350 Mm | Cooling Pump Flow: | 100 L/min |

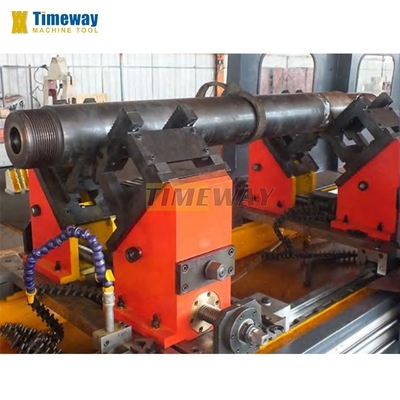

| Workpiece Clamping Dia. Range: | 100-420 Mm | Honing Head Expansion Pressure: | 0.3-4 Mpa(Variable) |
| Spindle Motor Power Of Honing Bar Box: | 11kw (AC Servo) | Cooling Pump Motor Power: | 2.2 Kw |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | DHK-350 | DHK-500 | DHK-800 |
Honing diameter range | mm | Φ80-Φ350 | Φ100-Φ500 | Φ350-Φ800 |
Max. honing depth | mm | 1000-15000 | 1000-15000 | 1000-15000 |
Spindle center height | mm | 350 | 500 | 650 |
Spindle speed range of honing bar box | r/min | 20-200(Stepless) | 10-250(Stepless) | 20-250(Stepless) |
Workpiece clamping dia. range | mm | Φ100-Φ420 | Φ100-Φ650 | Φ400-Φ1000 |
Carriage reciprocating speed range | m/min | 1-20(Stepless) | 1-20(Stepless) | 1-20(Stepless) |
Cooling pump flow | L/min | 100 | 150 | 200, AB 50 |
Oil tank volume of cooling system | L | 300 | 300 | 500 |
Honing head expansion pressure | MPa | 0.3-4(Variable) | 0.3-4(Variable) | 0.3-4(Variable) |
Spindle motor power of honing bar box | kw | 11(AC servo) | 11(AC servo) | 15(AC servo) |
Reciprocating motor power | kw | 5.5(AC servo) | 4.5(AC servo) | 5.5(AC servo) |
Clamping and expansion motor power of honing head | kw | 0.75(AC servo) | 0.75(AC servo) | 0.75(AC servo) |
Cooling pump motor power | kw | 2.2 | 2.2 | 2.2 |
