Metal Horizontal Boring Machine with CE Machinery Repair Shops Durable Design 2 Axes
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC/TIMEWAY |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $60,000.00/sets 1-2 sets |
| Packaging Details: | wooden case. |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 1100x960, 1100x960mm | Table Travel (X) (mm): | 900 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 1400 Mm |
| Number Of Axes: | 2 | Max. Table Load(kg): | 2500 |
| Travel (W-axis) (mm): | 600 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Positioning Accuracy (X Axis) Mm: | 0.005 | Positioning Accuracy (Y Axis) Mm: | 0.005 |
| Positioning Accuracy (Z Axis) Mm: | 0.005 | No. Of Spindles: | Single |
| Range Of Spindle Speed(r.p.m): | 1000 R.p.m | Spindle Motor Power(kW): | 7.5 |
| Type: | Horizontal | Condition: | New |
| CNC Or Not: | Normal | Voltage: | 220V 380V 400V |
| Dimension(L*W*H): | 4910x2454x2750mm | Weight (T): | 13 T |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops | Showroom Location: | Egypt, United States, Brazil, Indonesia, India, Mexico, Russia, Argentina, Chile, Sri Lanka |
| Machine Tool: | Boring Machine | Brand: | TIMAC |
| Table Travel (X): | 900mm | Table Travel (Y): | 900mm |
| Table Travel (Z): | 1400mm | After-sales Service Provided: | Online Support |
| Machine Type: | Horizontal Boring Machine Equipment | COLOR: | Standard |
| Port: | China Port. | ||
Product Description
Products Description

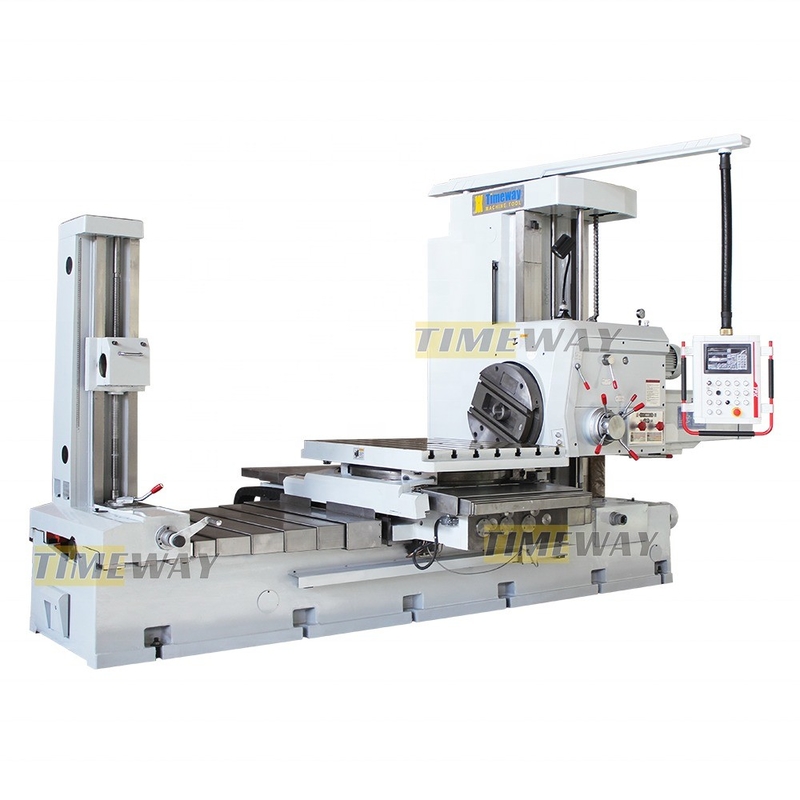

Horizontal Boring Machine
Specification | Unit | TPX-110B |
Table working surface (L×W) | mm | 1100x900 |
Max. Loading weight on table | mm | 2500 |
T-slot No./size | mm | 7-22 |
Spindle diameter | mm | 110 |
Spindle Taper | mm | MT6 |
Range of spindle speed | r.p.m | 8-1000 (22 steps) |
Power of main motor | kw | 7.5 |
Range of facing head speed | r.p.m | 4-200 (18 steps) |
X/Y/Z-axis travel | mm | 900/900/1400mm |
W-axis travel (Spindle travel) | mm | 600 |
U-axis travel (Facing slide travel) | mm | 180 |
B-axis worktable rotary | rpm | 360° (4×90° ) |
Machine weight | kg | 13000 |
-DRO for X &Y axes. | -DRO for Z axis, -DRO for B axis, -DRO for W axis, -Rear column, -ISO7:24 No.50 -spindle taper. |
Machine Details
Bed
Our high quality casting feature polished and hardened
guideways. The castings are internally reinforced to
maximize rigidity and stability.
guideways. The castings are internally reinforced to
maximize rigidity and stability.
Control Panel
Available in hanging or swing-arm arrangements, the
control panel is easy to use and reduces operator
fatigue.
control panel is easy to use and reduces operator
fatigue.
Table
Table rotates 360°, 1100x960mm large table provides milling of workpiece weights of up to 5 tons.
Headstock
Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are
possible.
possible.
Spindle & Facing Plate
Facing plate and drill spindle with different task
specific speed ranges according to the various
functions.
specific speed ranges according to the various
functions.
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
