Max. Drilling Dia. mm 30 Gun Barrel Drilling Machine with CNC Gun Drilling Technology
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE ISO9001 |
| Model Number: | DDK-30/1, DDK-30/2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-4 sets |
| Packaging Details: | Standard Seaworthy Package or according to customer's require |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Type: | Bench Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 30 | Range Of Spindle Speed(r.p.m): | 800 - 7000 R.p.m |
| CNC Or Not: | CNC | Voltage: | 220 V |
| Weight (KG): | 6500 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | Italy, Peru, India, Mexico, Russia, Thailand, Chile, South Africa, Australia |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Drilling Diameter Range: | 3-30mm | Max. Drilling Depth: | 500mm/1000mm |
| Number Of Spindle: | 2 Pcs. | Max. Length Of The Workpiece: | 2000mm |
| Drilling Box Spindle Speed Range: | 800-7000rpm | Headstock Spindle Speed Range: | 380rpm Or Without Headstock |
| CNC System: | SIEMENS Or Other CNC System | Weight: | As Actual Situation |
| Power: | 20KW | Port: | China Port |
Product Description
Products Description

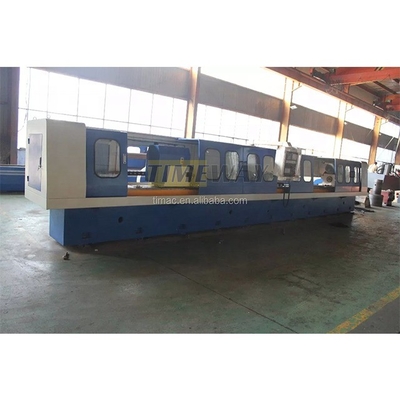

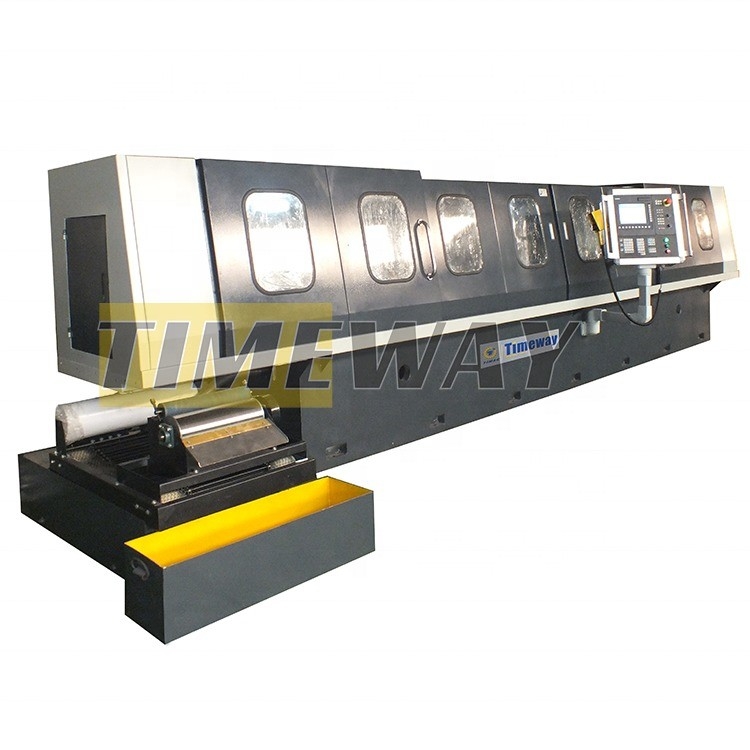

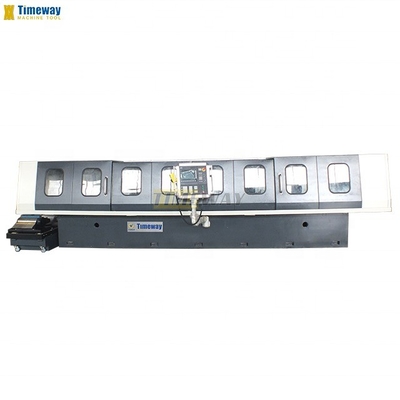

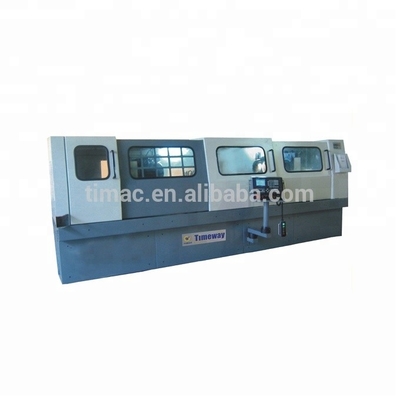

CNC Gun Drilling Machine for Deep Hole
The series CNC deep hole drill machine is the dedicated drilling machine with high efficiency, high precision and high automation.
The tool is rotating when feeding. It adopts the mode of external chip removal. Through one-off drilling process. It can finish several procedures including drilling, expanding and reaming, which is generally conducted by different machines in the conventional process.
The tool is rotating when feeding. It adopts the mode of external chip removal. Through one-off drilling process. It can finish several procedures including drilling, expanding and reaming, which is generally conducted by different machines in the conventional process.
Feature
This machine achieves the excellent machining accuracy and surface roughness.
It adopts CNC system and has automatic cycle function.
To improve the productivity, the machine can be equipped with single or 2 or 4 spindles configuration. So it is specially suitable for mass production. It can process through hole, blind hole and step hole.
It adopts CNC system and has automatic cycle function.
To improve the productivity, the machine can be equipped with single or 2 or 4 spindles configuration. So it is specially suitable for mass production. It can process through hole, blind hole and step hole.

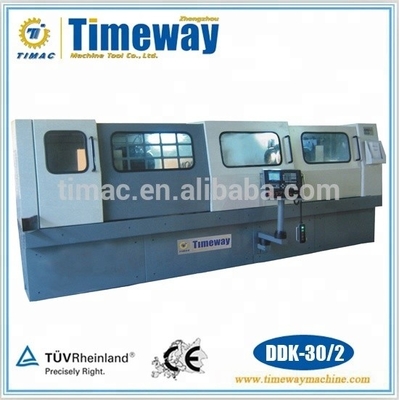

Specification | Unit | DDK-30/1 | DDK-30/2 | |
Number of the spindle | - | 1 | 2 | |
Drill dia. range | mm | 3-30 | 3-30 | |
Max. drill depth | mm | 500/1000 | 500/1000 | |
Max. length of the workpiece | mm | 2000 | 2000 | |
Headstock speed regulating range | r/min | 380 | 380 | |
Drill box spindle speed range (stepless) | r/min | 800-7000 | 800-7000 | |
Feed speed range (stepless) | mm/min | 5-500 | 5-500 | |
Feed rapid speed | m/min | 3 | 3 | |
Feed motor torque | Nm | 7 | 7 | |
Headstock motor power | kw | 4 | 4 | |
Drill bar box feeding motor power (stepless) | kw | 4 | 4 | |
Work pressure of cooling system (adjustable) | Mpa | 1-10 | 1-10 | |
Cooling system flow (adjustable) | L/min | 6-100 | 6-100 | |
Drilling diameter-length ratio | - | 1:100 | 1:100 | |
Machine total power | kw | 20 | 20 | |
Coolant filtering precision | µm | 20 | 20 | |
CNC system | - | SIEMENS | ||
