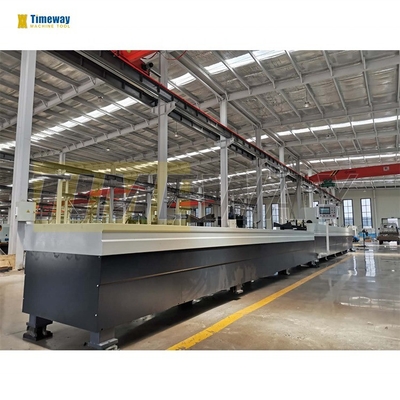

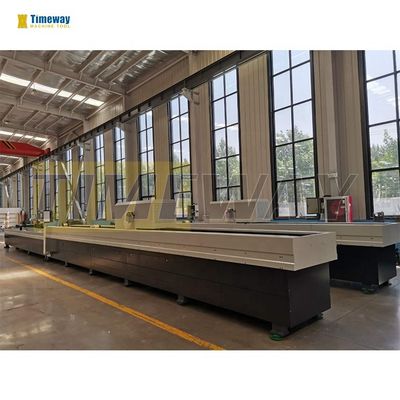

Deep Hole Honing Machine with 50 L/min Cooling Pump Flow and 0.45KW Servo Motor Power
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac |
| Model Number: | DHK-500/6000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-1 sets |
|
Detail Information |
|||
| Condition: | New | Type: | Pillar Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 500mm | Range Of Spindle Speed(r.p.m): | 100 - 1000 R.p.m |
| CNC Or Not: | CNC | Drilling Speed: | 2000 |
| Voltage: | 280V/320V | Dimension(L*W*H): | 2300x4500x8000 |
| Power (kW): | 30kw | Weight (KG): | 15000 KG |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Showroom Location: | Egypt, France, Germany, Viet Nam, Saudi Arabia, Indonesia, Pakistan, Morocco, Kazakhstan | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Printing Shops |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Gear, PLC, Pressure Vessel | Honing Diameter Range: | 100~500 Mm |
| Maximum Depth Of Honing Hole: | 6000 Mm | Tooling Clamps The Outer Circle: | 100 Mm~650 Mm |
| Machine Center Height: | >480 Mm | Motor Power: | 15KW (servo Motor) |
| Spindle Speed Range: | 15-150 R/min Stepless | Servo Motor Power: | 0.45KW (servo Motor) |
| Reciprocating Speed Range: | 1-30 M/min | Feed Motor Power: | 3KW (servo Motor) |
| Cooling Pump Flow: | 50 L/min | ||
Product Description
Products Description
Specification | DHK-500x6M |
Honing diameter range | Ф100~Ф500 mm |
Maximum depth of honing hole | 6000 mm |
Tooling clamps the outer circle of the workpiece | 100 mm~650 mm |
Machine center height | >480 mm |
Rod grinding box motor power | 15KW (servo motor) |
Rod grinding box spindle speed range | 15-150 r/min stepless |
Grinding head servo motor power | 0.45KW (servo motor) |
Reciprocating speed range | 1-30 m/min |
Feed motor power | 3KW (servo motor) |
Cooling pump flow | 50 L/min |
Cooling box volume | 200 L |
Cooling pump motor power | 0.45KW |
Surface Roughness Polishing | Ra0.4~Ra0.2μm |
Machine size | 16500x1000x1700 mm |
Machining accuracy | IT7－IT8 |
Processing roughness | Ra≤0.4(after polishing≤0.2 ) |
Roundness | ≤0.05(depend on thickness) |
List of machine accessoiries | ||||
S/N | Name | Quantity | ||
1 | Machine bed | 1 set | ||
2 | Grinding box | 1 set | ||
3 | Grinding rod bracket | 2 sets | ||
4 | Carriage feeding system | 1 set | ||
5 | Cooling filter system | 1 set | ||
6 | Work clamping device | 2 sets | ||
7 | Protective chip removal system | 1 set | ||
8 | Electrical control system | 1 set | ||
9 | Electric box | 1 set | ||
10 | Cooling oil tank | 1 set | ||
11 | Magnetic separator | 1 set | ||
12 | Paper bag filter | 1 set | ||
13 | Accessories and wrenches | 1 set | ||
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
